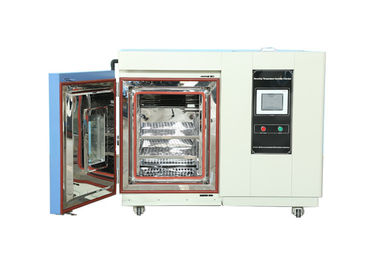

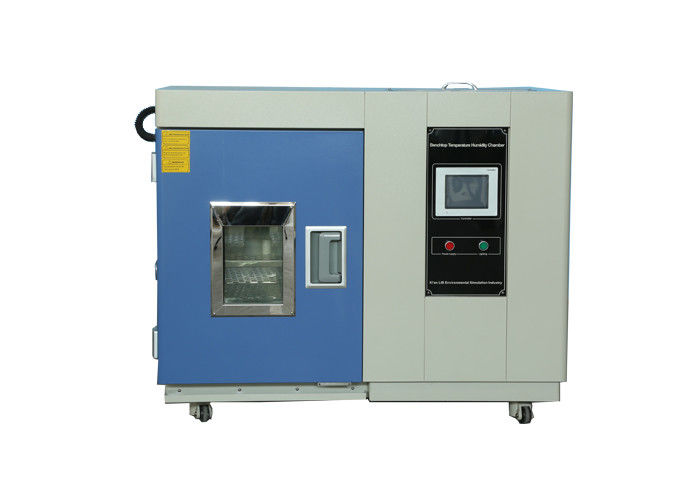

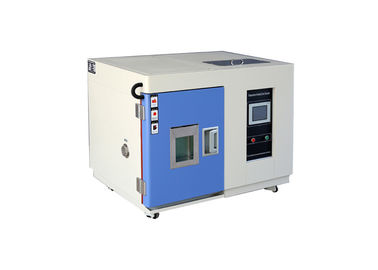

TH-80 Temperature Humidity Chamber / T-50 Benchtop Environmental Simulation Chamber

Product Description

TH-80 Temperature Humidity Chamber / T-50 Benchtop Environmental Simulation Chamber

Description

Humidity Temperature environmental simulation chamber included temperature only chamber, temeprature humidity chamber, fast change rate temperature test chambers, thermal cycle chambers, benchtop ovens.In research and development laboratories, the functionality and usability of a product are determined at a very early stage.Temperature Humidity Environmental Simulation Chamber PLC Temperature Humidity Stability Test Chamber For Cold Damp Heat Dry Heat Testing.

Application

Humidity Temperature environmental simulation chamber is widely used in the temperature variation test, cold resistance test and storage with low-temperature in the foelds of aerospace, aviation, electronics, instrument, electric products, materials, parts and components and equipment to analyze and evaluate the property and performance of the sample under thr simulated conditions.



Main Technical Parameter



Model	TH-80
Internal dimension (mm)	400*400*500

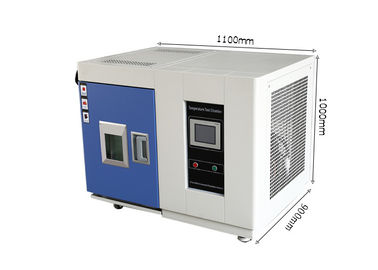

Overall dimension (mm)	900×1100×1000
Temperature range	-20℃ ～+150 ℃
Low type	Ⅰ: -40℃ Ⅱ:-70℃
Humidity range	20% ~ 98% RH
Temperature fluctuations	± 0.5 ℃
Temperature deviation	± 2.0 ℃
Humidity deviation	± 2.5% RH
Heating rate	3 ℃ / min
Cooling rate	1 ℃ / min
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Temperature Resolution	± 0.001 ℃
Humidity sensor	Dry and wet bulb sensor
Power Supply	AC220V 50HZ
Environmental conditional	5℃～+40 ℃ ≤85% RH



Standard Features

• Temperature control and display unit

• Humidity control and display unit

• Temperature sensor PT-100 , Resolution: ± 0.001 ℃

• Programmable color LCD touch screen controller

• Viewing window with interior lighting.

• 2 pieces of adjustable and removable shelving

• Bottom install 4 castors for ease moving, and with brakes function

• Programs reach to 999 groups and 999 sections

• Safety protection system

• Can perform long time 85 °C/85 % RH tests



Test Cycle

Design and Construction

Test area

Material of the test cabinet is high quality SUS304 stainless steel.

Test hole, sealed with silicone screw plug.

Temperature sensor Pt100 platinum

Humidity sensor dry and wet bulb

2 pieces of adjustable and removable shelves



Air Circulation

Air circulation fans in the workroom of the chamber.

The real wall of test area equipped with chip-type wind board.

Air flowing from top of wind board which control air direction return to air inlet to achieve air circulation.



Cooling System

Mechanical compression refrigeration system

Refrigerating unit is French TECUMSEH compressor.

Two cascade compressor

Environment friendly refrigerant R404a for first stage,

R23 for the second stage



Humidity System

External isolation, stainless steel surface evaporation humidifier

Automatic water supply



Control Panel

PLC controller

Programmable color display touch screen controller.

Programs reach to 999 groups and 999 sections

RS-232 /RS-485 interface, PC Link, LAN network



Safety Protection

Over temperature protection

Water shortage protection

Humidifier dry combustion protection

Refrigerant high pressure protection

Over current protection

Earth leakage protection



Packing & Shipping

Export Standard Wooden Box.

Gross Weight: 329KG, Package size(mm): 1330x1050x1260

Can be used for Sea, Air, Railway, Truck transportation,TNT,Fedex,UPS,EMS.



Our Service

3 Years Warranty, Lifelong Follow-up Services.

Training how to install and operate the machine.

Training how to maintain the machine.

Response within 24 hours once got questions from customers.

Send spare parts within 2 days after got notice.

Engineers available to service machines overseas to install and commissioning.
