Electronic Humidity Test Chamber 380V 50HZ High low Temperature Controlled
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS,ISO17025,CSA |
| Model Number: | TH-500 Temperature Humidity Chamber |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD2100- USD8200/Set |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-18 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 160 sets / quarter |
|
Detail Information |
|||
| Internal Dimension (mm: | 700*800*900 | Temperature Range: | -20℃ ～+150 ℃ |
|---|---|---|---|
| Humidity Range: | 20% ~ 98% RH | Temperature Deviation: | ± 2.0 ℃ |
| Humidity Deviation: | ± 2.5% RH | Refrigerant: | R404A, R23 |
| Highlight: | relative humidity chamber,humidity testing equipment |
||
Product Description
Electronic High low Temperature Humidity Controlled Climatic Chamber
Electronic High low Temperature Humidity Controlled Climatic Chamber, In research and development laboratories, the functionality and usability of a product are determined at a very early stage.Temperature Humidity Environmental Simulation Chamber PLC Temperature Humidity Stability Test Chamber For Cold Damp Heat Dry Heat Testing are used in.
Electronic High low Temperature Humidity Controlled Climatic Chamber in the foelds ofaerospace, aviation, electronics, instrument, electric products, materials, parts andcomponents and equipment to analyze and evaluate the property and performance of the sample under thr simulated conditions.
| Model | TH-500 | ||||||||
| Internal dimension (mm) | 700*800*900 | ||||||||

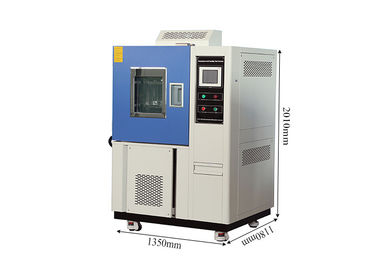

| Overall dimension (mm) | 1180*1350*2010 | ||||||||
| Temperature range | -20℃ ～+150 ℃ | ||||||||
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ Ⅲ: -86℃ | ||||||||
| Humidity range | 20% ~ 98% RH | ||||||||
| Temperature fluctuations | ± 0.5 ℃ | ||||||||
| Temperature deviation | ± 2.0 ℃ | ||||||||
| Humidity deviation | ± 2.5% RH | ||||||||
| Heating rate | 3 ℃ / min | ||||||||
| Cooling rate | 1 ℃ / min | ||||||||
| Refrigerating unit | French TECUMSEH compressor | ||||||||
| Refrigerant | R404A, R23 | ||||||||
| Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||||||
| Dehumidification system | Evaporator | ||||||||
| Air circulation | Centrifugal wind fan | ||||||||
| Water supply system | Automatic water supply; Water purification system | ||||||||
| Thermal insulation | Polyurethane foam | ||||||||
| Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing | ||||||||
| Timing Function | 0.1~999.9 (S,M,H) settable | ||||||||
| Power Supply | 380V 50HZ | ||||||||
| Environmental conditional | 5℃～+40 ℃ ≤85% RH | ||||||||
Temperature and Humidity control and display unit
Humidity sensor dry and wet bulb sensor, Resolution: ± 1%
Programmable color LCD touch screen controller
Viewing window with interior lighting
Interior material is high quality SUS304 stainless steel
Exterior material is steel plate with protective coating, color is blue
Can perform long time 85 °C/85 % RH test
Test hole with silicone screw plug.
2 pieces of adjustable and removable mesh shelving.
Bottom install 4 castors for ease moving, and with brakes function

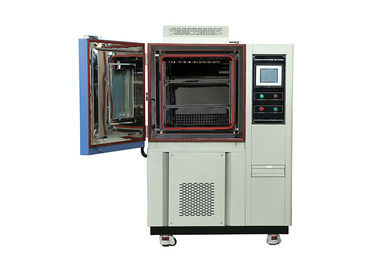

Test Area
Material of the test cabinet is high quality SUS304 stainless steel.
Test hole (Φ 50mm, Φ125mm), sealed with silicone screw plug.
Temperature sensor Pt100 platinum
Humidity sensor dry and wet bulb
2 pieces of adjustable and removable shelves
Air Circulation
3 Air circulation fans in the workroom of the chamber.
The real wall of test area equipped with chip-type wind board. Air flowing from top of wind board which control air direction return to air inlet to achieve air circulation.
Humidity System
External isolation, stainless steel surface evaporation humidifier
Automatic water supply
Control Panel
PLC controller
Programmable color display touch screen controller.
Programs reach to 999 groups and 999 sections
RS-232 /RS-485 interface, PC Link, LAN network
Safety Protection
Over temperature protection,
Water shortage protection
Humidifier dry combustion protection
Refrigerant high pressure protection
Over current protection
Earth leakage protection
Our main products have been certified by CE,CAS,RoHS compliance,
Export Standard Wooden Box.
Gross Weight: 450KG, Package size: 4.634CBM.
Can be used for Sea, Air, Railway, Truck transportation,TNT,Fedex,UPS,EMS.
Provide test solution
If you are end user, you have some test samples need environmental testing, you are not clear the tests, please contact us to get test solution. Will response
within 10 hours after got your requests.
If you are trading dealer, you got request from your customers, please let us know, our team will response you to send test solution for you.
If you want to participate in bidding, our company will send you full brochure with best price for you win the tender.
Warranty & After Sales Service
3 Years Warranty, Lifelong Follow-up Services.
We have a professional after-sales team,
if you have any questions during operation, we will supply solutions to you with 24 hours
Xi’an LIB Environmental Simulation Industry is a manufacturer and exporter of climatic test chambers in China. We exported the first one test chamber since 2009, it is more than 10 years we work in environmental test chambers field.
Our main products included temperature and climate test chambers, corrosion chambers, weathering testers, IP dust and rain chambers, ozone test chamber, noxious gas SO2 H2S chamber, walk-in chambers.We provide test chamber, we provide test solution. We manufacture standard and custom climatic chambers,provide effective solutions according to different requests.
