22L 72L 211L Thermal Cycling Chamber Climatic Test Equipment 380V 50HZ Power Supply
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | 3TS-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD8900 ~ USD35000 / SET |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-10 days ( check if have stock) |
| Payment Terms: | Western Union, MoneyGram,paypal,, L/C, D/A, D/P, T/T |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Internal Dimensions: | 700*780*550(mm) | Sample Loads: | 25kg |
|---|---|---|---|
| Recovery Time: | Within 15 Minutes | Controller: | Programmable Color LCD Touch Screen Controller |
| Power Supply: | 380V 50HZ | Interior Material: | SUS304 Stainless Steel |
| Highlight: | thermal testing equipment,thermal cycling machine |
||
Product Description

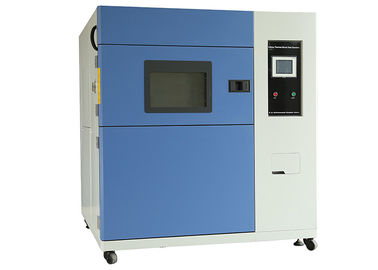

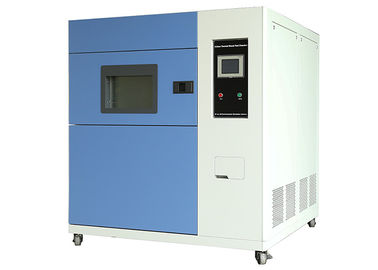

22L 72L 211L Stability Thermal Cycle Temperature Shock Climatic Test Equipment
●Place samples of different sizes.
●Pneumatic Damper Type
●Sample Loads:25kg
●Heating time:Ambient temperature to ~ + 200℃
●Cooling time:Ambient temperature to ~ -70℃
22L 72L 211L Stability Thermal Cycle Temperature Shock Climatic Test Equipment allows the automatic transfer of your components from a cabinet that can go from -70℃ to a second cabinet that can be as warm as +200℃
22L 72L 211L Stability Thermal Cycle Temperature Shock Climatic Test Equipment suitable for high and low temperature impact test of complete machine and parts of aviation, aerospace, military, ship, electrician, electronics, etc. and storage and test under high temperature or low temperature environment.
| Name | Temperature Shock Climatic Test Equipment | |
| Model | 3TS-300 | |
| Internal dimensions(mm) | 700*780*550 | |
| Overall dimensions(mm) | 1350*2250*2300 | |
| Sample Loads | 25kg | |
|
Pre-heat room
|
Upper limit preheat temperature | +220℃ |
| Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | |
|
Pre-cool room |
Lower limit pre-cool temperature | -70℃ |
| Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | |
| Test room | High temperature exposure range | Ambient temperature +20 to +200°C |
| Low temperature exposure range | –65 to -5°C | |
| Recovery time | Within 15 minutes | |
| Temperature fluctuation | ≤±0.5℃ | |
| Temperature deviation | ≤±3℃ | |
| Controller | Programmable color LCD touch screen controller | |
| Cooling system | Mechanical compression refrigeration system | |
| Refrigerating unit | French TECUMSEH compressor | |
| Refrigerant | R404A, R23 | |
| Air circulation | Centrifugal wind fan | |
| Exterior material | Steel Plate with protective coating | |
| Interior material | SUS304 stainless steel | |
| Thermal insulation | Polyurethane foam | |
| Standard configuration | 2 pieces of stainless steel shelves, Φ 50 round cable port | |
| Power Supply | 380V 50HZ | |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH | |
▶The test specimens remain stationary and don’t moved
▶One test room configuration
▶Temperature recovery time less than 15 minutes
▶Programmable color LCD touch screen controller
▶Casters, shelf, and cable port are standard
▶Lamp inside of chamber
▶Ethernet and USB(option)
▶Large viewing window
▶Adjustable and removable sample shelves
▶CE mark, ISO17025 calibration
Large Viewing Window
Interior lighting
Window coated with conducting film to protect it from frost.

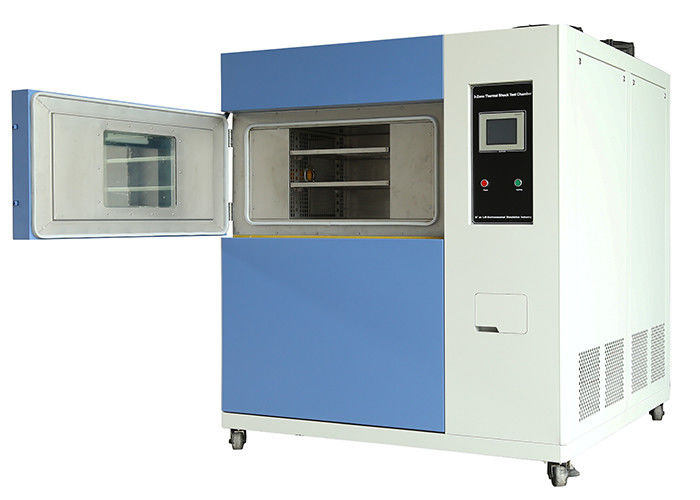

Test Area
Pneumatic damper type thermal shock chamber.
Pre-hot room, pre-cool room and test room configuration
2 pieces of adjustable and removable sample rack.
Cable Port
Φ 50 round cable port at the left side of workroom, and
seal with silicone screw plug.
Control Panel
Programmable color display touch screen controller.
Programs reach to 999 groups and 999 sections
Ethernet ,USB (option),APP,
Warranty & After Sales Service
3 Years Warranty, Lifelong Follow-up Services. We have a professional after-sales team, if you have any questions during operation, we will supply solutions to you with 24 hours.
1. Are your company a trading one or a factory?
Factory ,200years focusing on test instruments field,11 years exporting experience.
2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific items and item quantities.
3. What about the warranty with after - sales services?
36 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
5. How to install and training?
If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come LIB factory to learn how to installation and use. And our engineers have a passport, we can go to overseas.
6 :What are the payment methods?
A :Payment methods are T/T, Paypal, L/C, VISA
