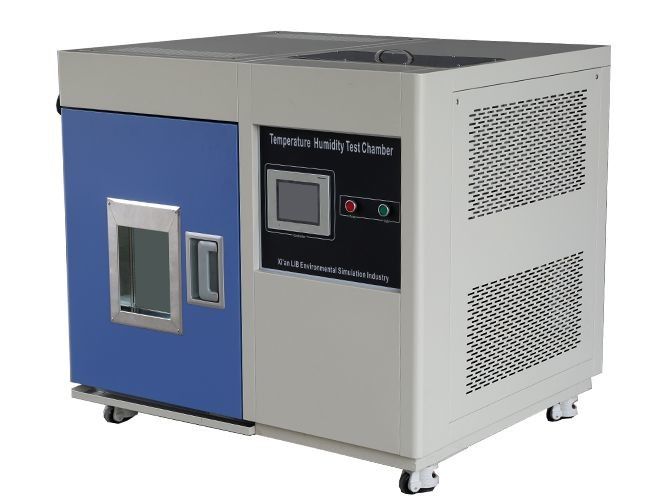

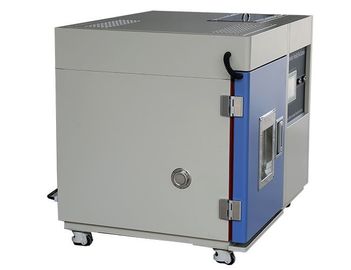

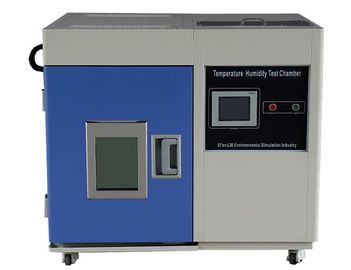

2k Cooling Rate Benchtop Humidity Chamber Easy Installation With PLC Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD2680 ~ USD6800 / SET |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Low Type: | -20℃/-40℃/70℃ | Temperature Range: | -20℃ ～+150 ℃ |
|---|---|---|---|
| Interior Material: | SUS304 Stainless Steel(2.5mm) | Usage: | Temperature Humidity Test Chamber For Resisting Heat |
| Warranty: | 36monthes | Power Supply: | AC220V 50HZ |
| Highlight: | small environmental chamber,portable environmental chamber |
||
Product Description
2k Cooling Rate Temperature Humidity Test Chamber , Benchtop Environmental Chamber
▶50L&80L type:space saved in the laboratory.
▶Complete functioning:Meet high and low temperature testing, humidity testing, calibration, storage conditions.
▶Benchtop design: Place it on your personal desk and observe samples at any time.
▶Reasonable price: Most economical and affordable choice
2k Cooling Rate Temperature Humidity Test Chamber , Benchtop Environmental Chamber with a wide breadth of configurations including various options for temperature testings or temperature and humidity testing, this small environmental chamber is Ethernet enabled, easy to install, and start using.Ideal for testing smaller products such as computer components, automobile sensors, or cell phones, a Thermotron
| Name | Temperature Humidity Test Chamber , Benchtop Environmental Chamber |
| Model | TH-80 |
| Internal dimension (mm) |
400*400*500 |
| Overall dimension (mm) |
900×1100×1000 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Controller
PLC controller
Programmable color display touch screen controller.
Programs reach to 999 groups and 999 sections
RS-232 /RS-485 interface, PC Link, LAN network
Test Area
Material of the test cabinet is high quality SUS304 stainless steel.
Test hole (Φ 50mm, Φ125mm), sealed with silicone screw plug.
Temperature sensor Pt100 platinum
Humidity sensor dry and wet bulb
2 pieces of adjustable and removable shelves
Large Viewing Window
Interior lighting
Window coated with conducting film to protect it from frost.
Observe the sample clearly
Cable hole
Internal diameters 50mm,
125mm or custom; Rubber sealing;
Stainless steel cover;
Supply power to workroom's specimen, to better finish testing Beautiful
1.Temperature control and display unit
2.Humidity control and display unit
3.French TECUMSEH compressor cooling unit
4.Environment friendly refrigerant R404A & R23
5.Programmable color LCD touch screen controller
6.Viewing window with interior lighting.
7.R-232 (R-485) interface, PC Link, communication with LAN network interface
8.2 pieces of adjustable and removable shelving.
9.Safety protection system
▶3 Years Warranty, Lifelong Follow-up Services.
▶we will supply solutions to you with 24 hours.
▶On site service
▶Video training service
1.packing:Wooden cases standard export package
2. Price terms: EXW, FOB,CIF Shanghai or Shenzhen.
3. Payment terms: L/C. Western Union. Paypal. T/T,
4. Sample lead time: 3-8 days
5. Mass production time: 10-15 days depending on the order qty
6. Delivery method time: By air, by sea or combined transportation,
7.Door to door service with Express: Fedex, DHL, UPS, EMS
1.Can I install and debug calibration on site?
-- Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
2.Can you send engineers to our company?
--Yes, sure. We will communicate in advance to facilitate the bringing of tools and components.
3.Can we come to your factory to study and train?
-- Welcome to our factory for study and training, we provide this service free of charge.
4.Do you have an agent?
-- Currently we have agents in Europe, Asia, North America, South Africa, and can provide sales and technical services.
5.Can you ship quickly?
-- Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
6. How long is the warranty period?
-- Warranty period is 3 years, free service for life
|
