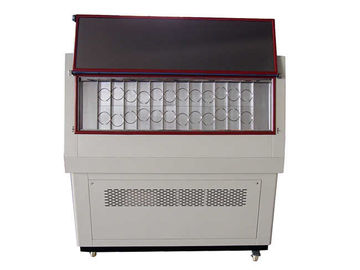

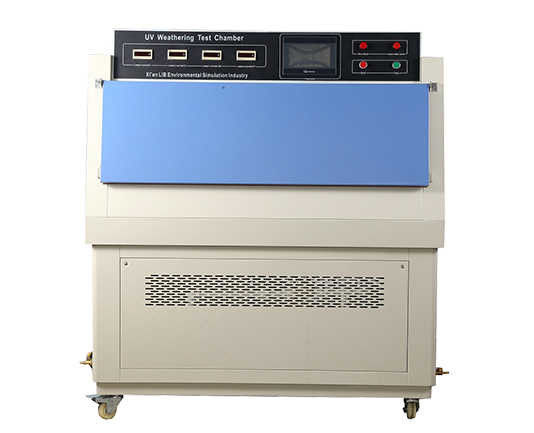

High Efficiency UV Weathering Test Chamber Accelerated Weathering Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS,ISO-17025 |
| Model Number: | UV-SI-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 5-14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 410Sets |
|
Detail Information |
|||
| Bandwidth: | 290~400mm | Irradiance Control: | 0.3~20 W/㎡ |
|---|---|---|---|
| Distance Of Specimen And Lamp: | 50mm | Maximum Noise: | 65 DBA |
| Specimen Capacity: | 56 Pieces | Irradiation Source: | Fluorescent UV Lamps (8) - 40 W |
| Highlight: | uv weather resistance test chamber,accelerated uv testing equipment |
||
Product Description
UV Accelerated Weathering Tester UV Test Chamber UVA 340
UV Accelerated Weathering Tester UV Test Chamber UVA 340 is suitable for testing materials and products. The aging degree of products and materials was tested under the change of sunshine, humidity, temperature, condensation and other climatic conditions. In a short time to get discoloration and so on.
► Advantages Of UV Accelerated Weathering Tester UV Test Chamber UVA 340
1. Fluorescent UV lamps (8) – 40 W
2. Black Panel Temperature (BPT) at controlled, BPT 30~70℃
3. Temperature from Ambient to +90℃
4. Build-in water tank and automatic water supply
5. Programmable color display touch screen controller
6. Ethernet and USB
7. Easy to mount samples
8. Sample holders and casters are standard
9. Safety protection system
10. CE and RoHS compliance
► Parameter Of UV Accelerated Weathering Tester UV Test Chamber UVA 340
| Name | UV Accelerated Weathering Tester UV Test Chamber UVA 340 | |
| Model | UV-260 | UV-SI-260 |
Internal Dimension (mm) | 452*1170*500 | 450*1170*500 |
Overall Dimension (mm) | 680*1300*1500 | 680*1300*1500 |
Specimen Holder Size(mm) | 75*150 | |
Controller | Programmable color LCD touch screen controller | |
Temperature Range | Ambient ～ 90 ℃ ±2℃ | |
Black Panel Temperature (BPT) | 35 ～ 80 ℃ | |
Bandwidth | 290 ~ 400nm | |
Irradiance Control | N/A | 0.3~20 W/㎡(340nm/313nm) |
Standard | ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664 | |
Water Spray Cycle | 1~9999H59M (Adjustable) | |
Distance of Specimen and lamp | 50mm | |
Power Supply | 380V 50Hz | |
Maximum Noise | 65 dBA | |
► Other Details Of UV Accelerated Weathering Tester UV Test Chamber UVA 340
 | |
| 1. UV Lamp UVA 340 nm and UVB 313 nm fluorescent UV lamps are available for the UV Test. The chamber is equipped with total of 8 lamps, each 40W. Easy to change lamps | 2. Controller PID programmable color touch screen controller, network connection computer. Can edit 100 programs 20 segment. LIB also can preset program into the controller based on user testing requirements.The set system language is English for standard. |
| |
3. Sample Self | 4. Operating Principle |
