25PPM So2 Test Chamber AC380V 50HZ Humidity Control Safety Protection IEC60068-2-42
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS |
| Model Number: | SO-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 5-14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 410Sets |
|
Detail Information |
|||
| SO2 Concentration: | 25+/-5ppm | Air Change Rete: | 3~5 Hour |
|---|---|---|---|
| Standard: | IEC 60068-2-42 | Power&voltage: | AC380V 50HZ |
| Interior: | Glass Fiber Renforced Plastics | Controller: | Programmable Color Display Touch Screen Controller |
| Highlight: | aging test chamber,so2 test chamber |
||
Product Description

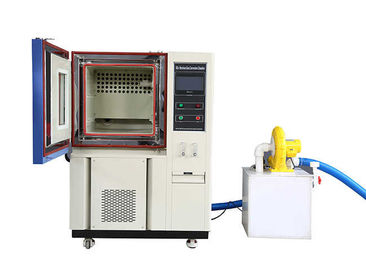

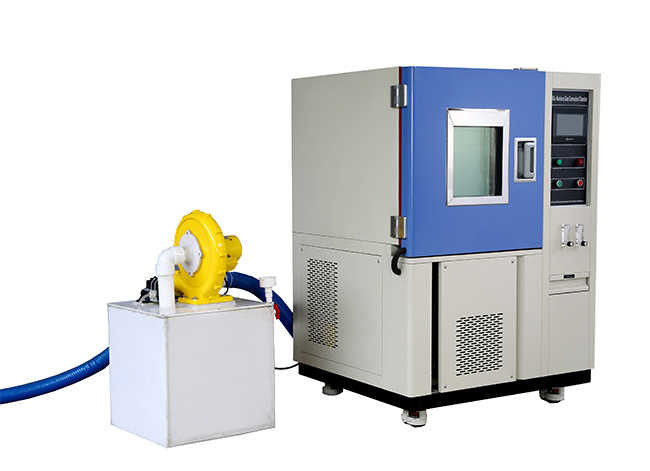

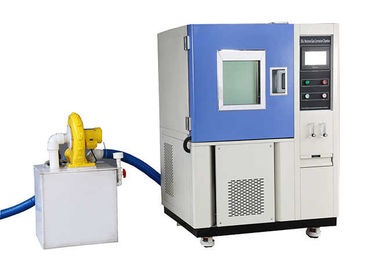

25PPM So2 Gas Sulfur Dioxide Test Chamber IEC60068-2-42
♦ Product Information Of 25PPM So2 Gas Sulfur Dioxide Test Chamber IEC60068-2-42
SO2 Noxious Gas Test Chambers reproduce damages by temperature, relative humidity and noxious gas Corrosion to material, components and constructions.
This noxious gas chamber can be used for single gas tests and mixed gas tests.Test methods are in accordance with IEC 60068-2-42, IEC60068-2-60 and other standards.
♦ Advantages Of 25PPM So2 Gas Sulfur Dioxide Test Chamber IEC60068-2-42
1. Floor Type
2. Automatic measure and control gas
3. Temperature control and display unit
4. Humidity control and display unit
5. Test SO2 H2S CO2 HCL single gas and mixed
6. Programmable color LCD touch screen controller
7. USB and Ethernet
8. Electromagnetic lock to prevent door from opening under working
9. Air cooled refrigeration system
10 Casters, shelf and cable port are standard
11. Safety protection system
12. CE mark
♦Main Paramter Of 25PPM So2 Gas Sulfur Dioxide Test Chamber IEC60068-2-42
| Name | 25PPM So2 Gas Sulfur Dioxide Test Chamber IEC60068-2-42 | ||
| Model | SO-100 | SO-225 | SO-500 |
| Internal Dimensions (mm) | 450*450*500 | 500*600*750 | 800*700*900 |
| Overall Dimensions (mm) | 1050*880*1440 | 1320*1320*2170 | 1470*1520*2315 |
| Interior Volume (L) | 100 | 225 | 500 |
| Temperature Range | 15 ℃ ～ 80 ℃ | ||
| Temperature Fluctuation | ± 0.5 ℃ | ||
| Temperature Deviation | ± 2.0 ℃ | ||
| Humidity Range | 30% ~ 98% RH | ||
| Humidity Deviation | ±1% RH | ||
| SO2 Concentration | 25±5 ppm | ||
| Air Change Rate | 3~5 /h | ||
| Cooling system | Mechanical compression refrigeration system | ||
| Refrigerating unit | French TECUMSEH compressor | ||
| Humidifier | External isolation, stainless steel surface evaporation humidifier | ||
| Water Supply System | Water purification system Automatic water supply | ||
| Controller |
Programmable color LCD touch screen controller Ethernet connection PC Link |
||
| Temperature Sensor | PT100Ω / MV A-class | ||
| Humidity Sensor | Dry and wet bulb sensor | ||
| Gas Sensor | SO2 gas sensor | ||
| Power Supply | 380V 50Hz | ||
| Maximum Noise | 65 dBA | ||
| Standard | IEC60068-2-42；IEC60068-2-60 | ||
| Environmental Conditional | 5℃～+35 ℃ ≤85% RH | ||
| Safety Device |
Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection Water Shortage Protection; Earth leakage Protection
|
||
♦Main Details Of 25PPM So2 Gas Sulfur Dioxide Test Chamber IEC60068-2-42
 |
|
|
1. Controller PID programmable color touch screen controller, network connection computer. Can edit 120 programs 20 segment. LIB also can preset program into the controller based on user testing requirements. The set system language is English for standard. |
2. So2 Exhaust Device The SO2 exhaust device is equipped with an NAOH solution tank to dilutes SO2 to make workplace clean and safe. Exhaust the gas after the test, automatic controlled on controller. |
|
|
|
3. So2 Sensor SO2 gas concentration detection transmitter High accuracy, easy to exchange
|
4. Workroom The inner material is a double-layer material made of SUS304 stainless steel to ensure the robustness, and the outer layer is affixed with Fiber Reinforce Plastic for corrosion protection. Standard configuration of two sample holders made of FRP |
♦ FAQ Of 25PPM So2 Gas Sulfur Dioxide Test Chamber IEC60068-2-42
1. Can you ship quickly?
-- Our delivery period is 3-21 days. Some of the hot-selling equipments are in stock and can be shipped within 1-3 days.
2. How long is the warranty period?
-- Warranty period is 3 years, free service for life
3. What are the payment methods?
-- Payment methods are T/T, Paypal, L/C, VISA
4. Is there a door to door service?
-- Yes, there is door to door service. We will arrange a one-stop service.
5. How do you calibrate the equipment?
--We have our own calibration and third-party calibration such as ISO17025
