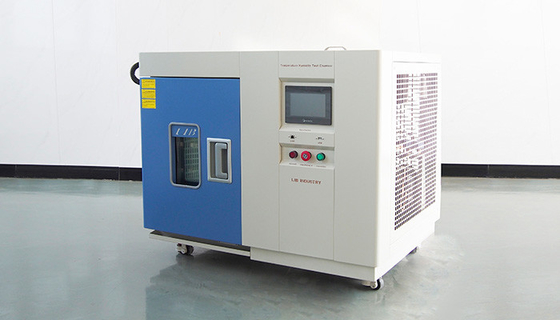

Mini Temperature Benchtop Humidity Chamber -20 Degree ～+150 Degree
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Low Type: | -20℃/-40℃/70℃ | Temperature Range: | -20℃ ～+150 ℃ |
|---|---|---|---|
| Warranty: | 36monthes | Humidity Range: | 20%~98% |
| Controller: | Programmable LCD Touch Screen | Name: | Benchtop Humidity Chamber |
| High Light: | Mini Temperature Benchtop Humidity Chamber,-20 Degree Benchtop Humidity Chamber,150 Degree benchtop environmental test chamber |
||

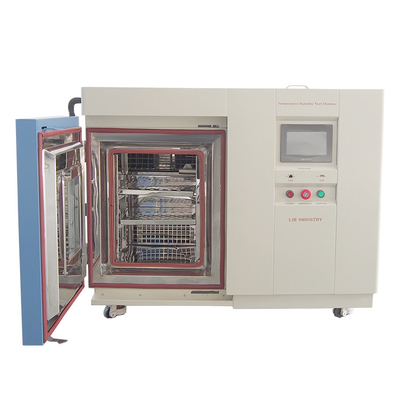

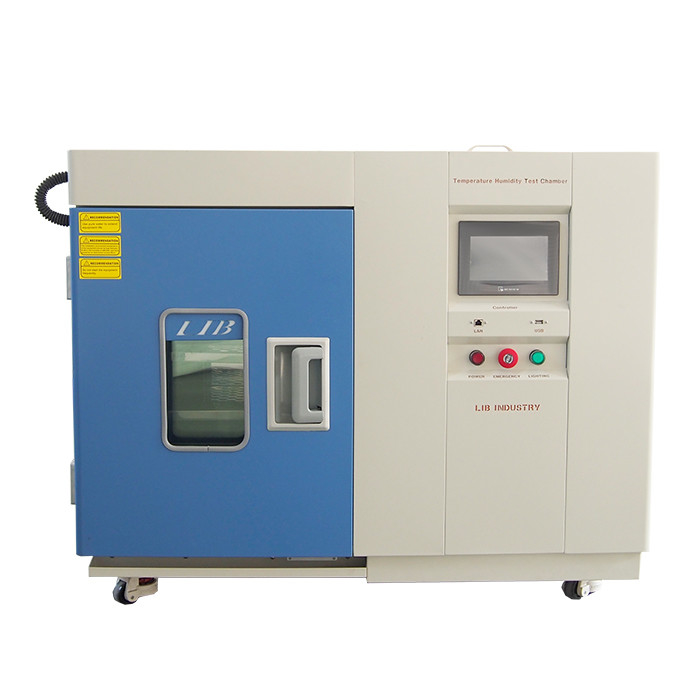

Product Description
Benchtop humidity chamber are Small, bench-top test chamber for simulating temperature and humidity environments. Included only temperature, temperature and humidity test chamber.
Parameters
| Name | Mini Temperature Benchtop Humidity Chamber |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Details
 |
Touch Screen Controller benchtop humidity chamber Ethernet, RS-232 Computer Interface, Color touch screen, easy to operate Multiple languages are available |
Advantage
Desktop temperature chamber
Small desktop to meet the requirements of small capacity and small test parts
Temperature and humidity range is adjustable
Available in 50L and 80
Can be placed in an office area or on a desk

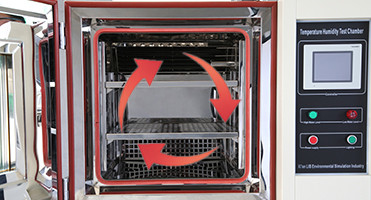

Removable shelf
Desktop Design
|
|
| Placed directly | Equipped with a shelf |
