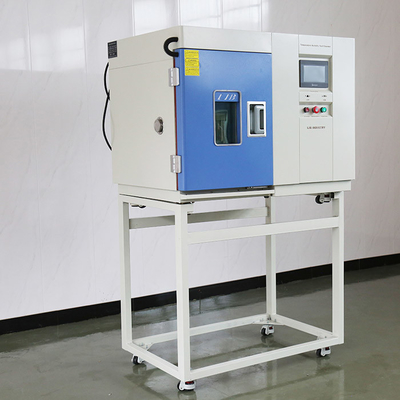

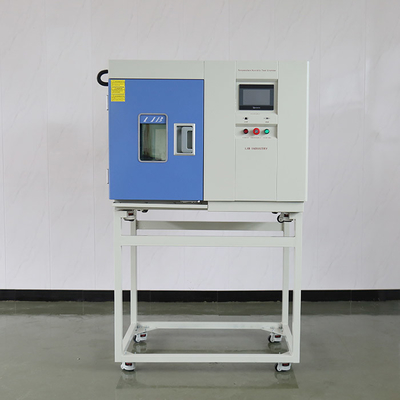

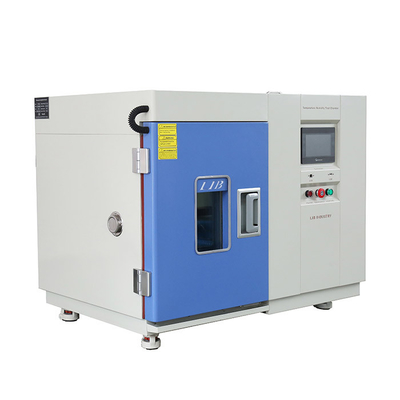

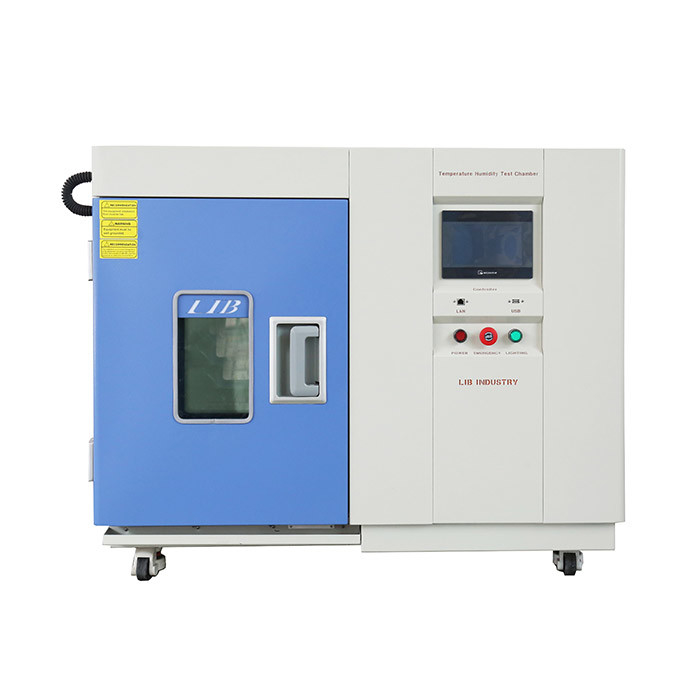

70℃ 98%Rh Benchtop Environmental Chamber Mini Humidity Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Mini Humidity Chamber | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | 98%Rh Benchtop Environmental Chamber,98%Rh Mini Humidity Chamber,70C Mini Humidity Chamber |
||
Product Description
Description
Mini humidity chamber can simulate numerous environmental conditions. It's appropriate for testing material performance, such as resist cold ,resist heating, resist dry,resist humidity.small climatic chamber can define performance of material.
Parameters
| Name | Benchtop Environmental Mini Humidity Chamber |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Details
 |
●The sample holder is removable and weighs 50KG
|
Features
1.50L and 80L design, can be placed in the office area, or on the desk
2. Small environmental chamber mainly used in testing the performance of the aircraft industry, information electronic instruments and meters, material, the electrician, electronic products, components and so on.
3. Large windows glass design, Comprehensive view, with inner lighting so it's convenient to watch the situation at any time during whole test.
4. With LCD screen in both Chinese and English, easy permance and program.
5. The system between the heating and cooling fully independent to increase effectiveness and life span and decrease the test cost and failure rate.
Small Design
Small humidity chamber meet the testing needs of small test pieces, the sample rack can bear 50KG,and it is economical.
Placed directly in the laboratory
Equip shelves or place them on a table
