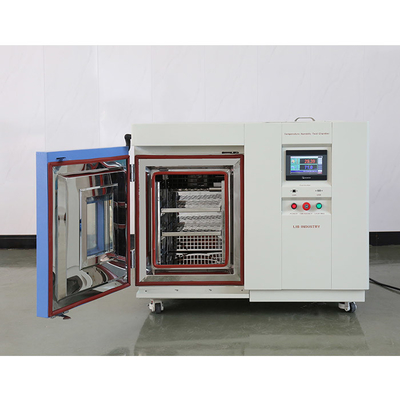

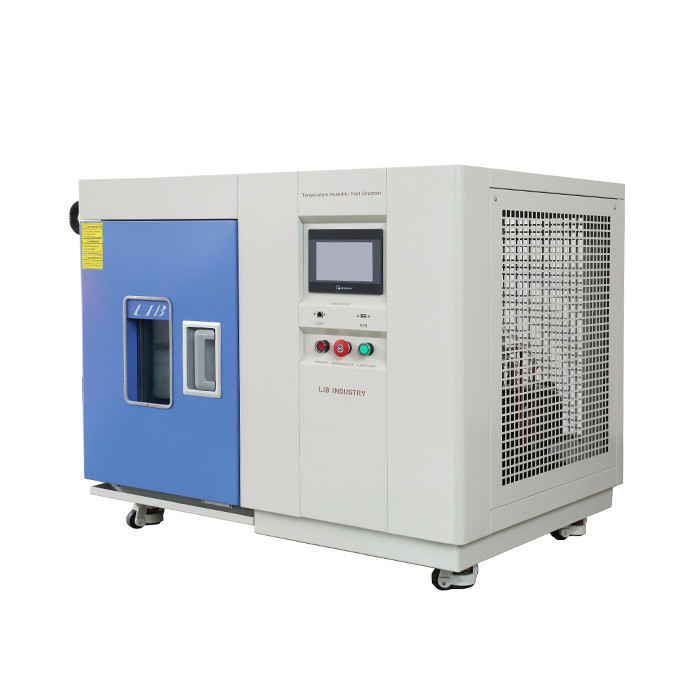

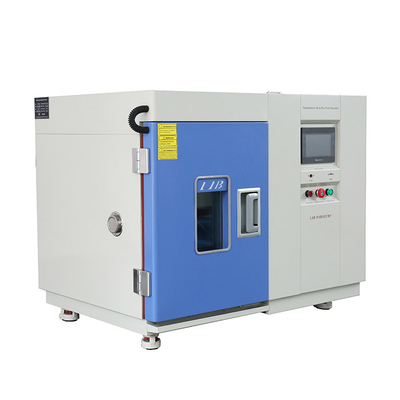

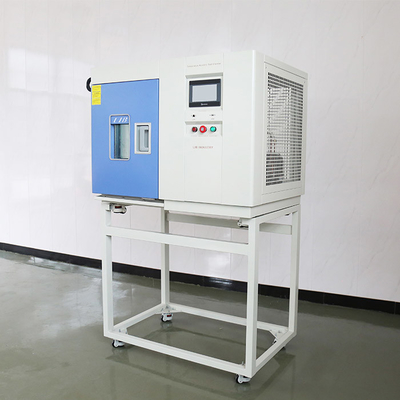

Desktop Environmental Small Temperature Test Chamber 20%~98%
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Small Temperature Test Chamber | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | Desktop Temperature Test Chamber,Temperature Test Chamber 20%,98% small temperature chamber |
||
Product Description
Description
Small temperature test chamber are suitable for testing small parts, such as semiconductor, computer components, automobile sensors and cellular phone parts.
Temperature humidity chamber combine excellent performance with compact design that is perfect for search and development or personal point-of-use testing.
Desktop temperature chamber also can offer flexibility, uniformity and control accuracy required for cost effective testing. Available in several sizes, desk type chambers allow you to cost effectively and select exact chamber that best meets your environmental test conditions.
Parameters
| Name | Desktop Environmental Small Temperature Test Chamber |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Optional Accessories
About Low Temperature Chamber
 |
|
| Controller WiFi connection Mobile APP control Multi-language controller interface:Russian, French, Polish, Romanian, German |
Test Hole
|
LIB INDUSTRY Service
●Warranty
3 year free warranty for whole set machine,lifelong time maintainance.
●After-sale service
feedback within 24 hours after get the call.
●Service
OEM service,Design service,Buyer lable service.
|
|
