High Low Temperature Test Chamber Humidity Climate Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE，ROHS |
| Model Number: | TH-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 3-14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram，PayPal |
| Supply Ability: | 120 Sets/Quarterly |
|
Detail Information |
|||
| Name: | Humidity Climate Chamber | Humidity Range: | 20%~98% |
|---|---|---|---|
| Low Type: | -20°C / -40℃ / -70℃ | Temperature Range: | -20°C~+150°C |
| Heating Rate: | 3 ℃ / Min | Power Supply: | 220V 50Hz （ 380V 50Hz） |
| High Light: | High Low Temperature Test Chamber,-70C Low Temperature Test Chamber,High Low Humidity Climate Chamber |
||
Product Description
Description
High Low Temperature Humidity Climate Chamber widely used in aerospace, electrical and electronic, instrumentation, materials and equipment, parts and other test samples.
Humidity Climatic Test Machine PLC for high and low temperature damp heat test,Cold resistance test, high and low temperature alternating heat and humidity test, constant temperature and humidity test, low temperature storage.
Specific Parameters
| Product Name |
High Low Temperature Humidity Climate Chamber |
|||||||||
| Model | TH-100 | TH-225 | TH-500 | TH-800 | 1000L | |||||
| Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 | |||||
| Interior Volume | 100L | 225L | 500L | 800L | 1000L | |||||
| Temperature Range |
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ |
|||||||||
| Temperature Fluctuation | ± 0.5 ℃ | |||||||||
| Temperature Deviation | ± 2.0 ℃ | |||||||||
| Humidity Range |
20% ~ 98% RH |
|||||||||
| Humidity Deviation | ± 2.5% RH | |||||||||
| Cooling Rate | 1 ℃ / min | |||||||||
| Heating Rate | 3 ℃ / min | |||||||||
| Exterior Material | Steel Plate with protective coating | |||||||||
| Interior Material | SUS304 stainless steel | |||||||||
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||||||||
| Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |||||||||
Details
 |
Test Area 2pcs 2.5mm SUS304 stainless steel shelf; Each shelf loads 50KGS; Specimen shelf height can be adjustable; |
|
Controller Programmable color touch screen type 120 programs, RS232 for PC link More option function:Multi-language display, PC link,USB, App |
|
|

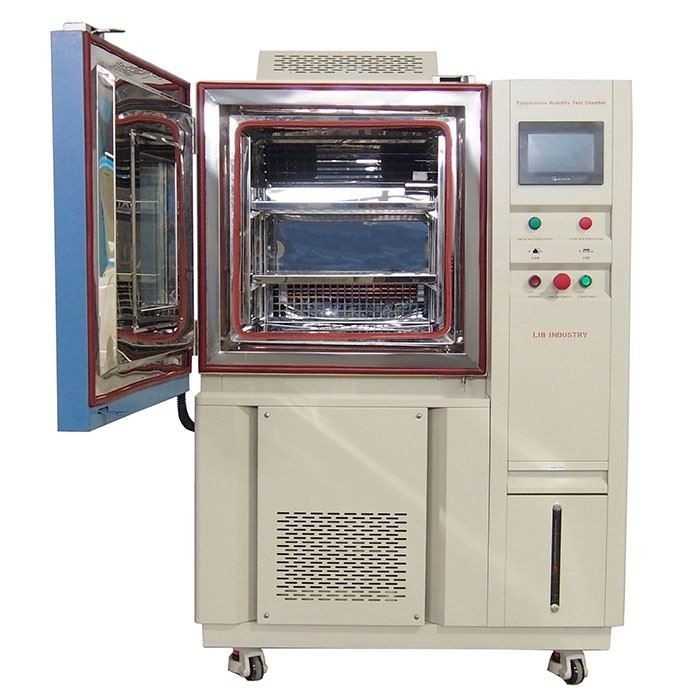

Viewing Window Interior lighting Window coated with conducting film to protect it from frost. Size is 250*300mm. More clearly see the sample changes |
Key Features
Temperature Humidity Climate Chamber
▶Temperature control and display unit
▶Humidity control and display unit
▶Programmable color LCD touch screen controller
▶Multi-language interface
▶USB and Ethernet
▶Casters, shelf, and cable port are standard
▶Build-in water tank
▶Adjustable and removable sample shelves
▶CE mark, ISO17025 calibration
