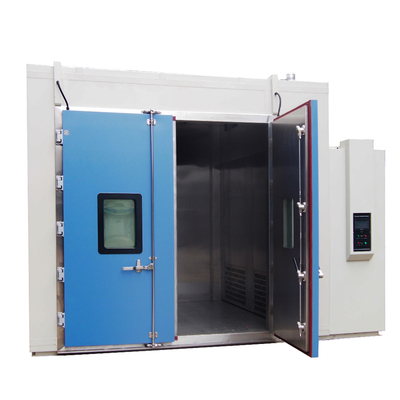

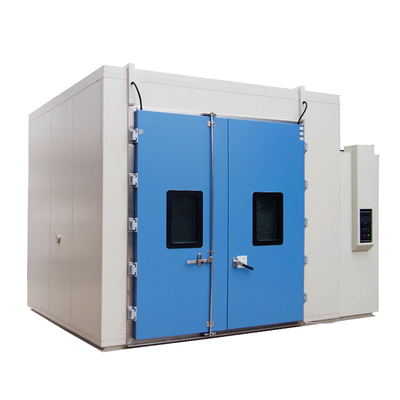

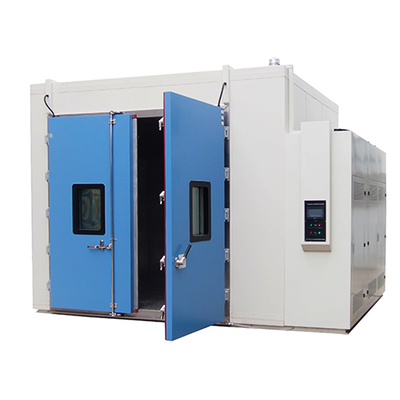

95% RH Walk In Environmental Chamber LCD Climatic Test Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS |
| Model Number: | Walk-Ins |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 5-16 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 10 Sets/quarter |
|
Detail Information |
|||
| Name: | Walk In Environmental Test Chamber | Temperature Range: | -70℃ ~ +150℃ |
|---|---|---|---|
| Humidity Range: | 10% ~ 95% RH | Size: | Custom-made |
| Refrigerant: | Environmental Friendly R23/R404A | Controller: | Programmable LCD Touch Screen |
| High Light: | RH Walk In Temperature Chamber,LCD Controlled Humidity Chamber,Walk In Temperature Humidity Chamber |
||
Product Description
Description
The walk in environmental test chamber tests the performance and life of products under different temperature, humidity and other climatic conditions.
environmental test chamber is specially developed for large samples to solve the shortcoming of the small space of the standard walk in test chamber (it can also be used for batch testing of small products, components and even materials).
Technical Specification
|
Name |
Walk In Environmental Test Chamber Climatic Test Chamber |
|
Model |
Walk-Ins |
|
Internal dimension (mm) |
Custom Made |
|
Overall dimension (mm) |
Custom Made |
|
Temperature range |
-70℃ ~ +150℃ |
|
Humidity range |
10% ~ 95% RH |
|
Temperature fluctuations |
± 2.0℃ |
|
Humidity fluctuations |
± 5.0% RH |
|
Heating rate |
1℃ / min |
|
Cooling rate |
1 ℃ / min |
|
Controller |
Programmable color LCD touch screen controller PC Link, Ethernet port |
|
Cooling system |
Mechanical compression refrigeration system |
|
Thermal insulation |
Polyurethane foam |
|
Noise |
Less than 85 dBA |
|
Power Supply |
400V 50HZ |
|
Environmental conditional |
5℃～+40 ℃ ≤85% RH |
Details of the Advantage
 |
|
|

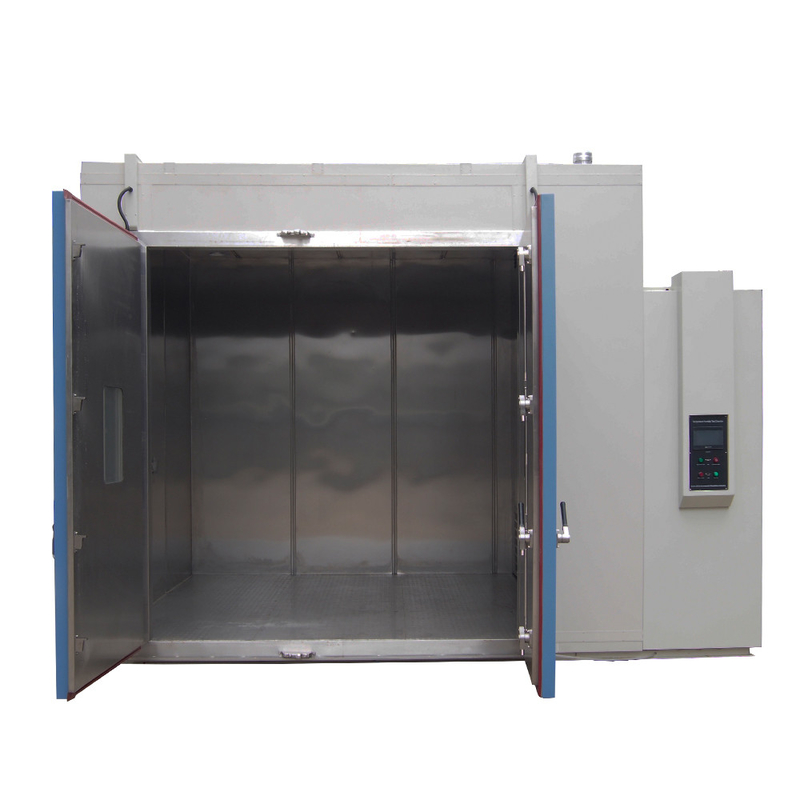

Test Area
|
Programmable Controller |
Features
Features of walk-in temperature chamber
◆High-strength structural design, A3 steel plate body,
◆In order to strengthen the thermal insulation performance of the machine and improve the test accuracy.
◆Quick-Lock Seal: Creates a tight connection and seals out moisture
◆Surface treatment: spray paint coating, beautiful and anti-static
◆Heavy-duty base plate: supports loads up to 3000kg per square meter
|
|
For more custom test chamber, please contact us
