45 ° Watering Test UL Rain Test Apparatus 4 Spray Heads
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | Rohs,CE |
| Model Number: | R-UL020 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Standard: | UL 50E Type 3R | Water Supply System: | Automatic Water Supply |
|---|---|---|---|
| Application: | Enclosures For Electrical | Number Of Spray Head: | 4 Spray Heads |
| Size: | Customization | Material: | SUS304 Stainless Steel |
| High Light: | 45 ° UL Rain Test Apparatus,Watering UL Rain Test Apparatus,45 ° rain test chamber |
||
Product Description

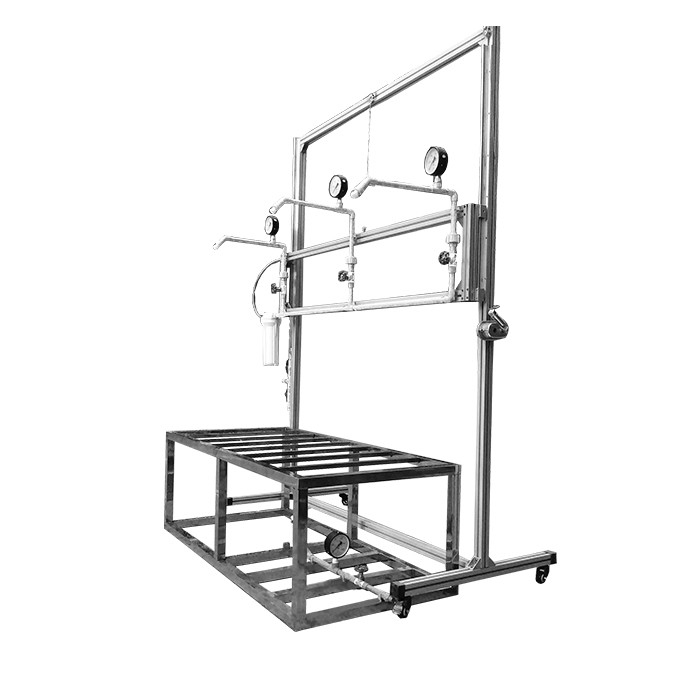

45 ° Watering Test UL Rain Test Apparatus
Description
45 ° Watering Test UL Rain Test Apparatus is suitable for UL rain and 45 ° water spraying test of products. The bracket base adopts universal band brake caster, which is convenient to move and fix. It adopts UL laboratory nozzle, which meets UL standard.
Technical Specification
 |
45 ° Watering Test UL Rain Test Apparatus |
| Model | R-UL020 |
| Overall Dimensions (mm) | 800*1500*2200mm |
| Height adjustment range of spray device | 1000-2000mm |
| Number of spray head | 4 spray heads(There are 3 spray heads on the top and 1 spray nozzle on the bottom) |
| nozzle spacing | 710mm |
| Spraying Hole Diameter |
Φ5mm
|
| Water pressure | 34.5Kpa |
| Sample platform size | 500X1500X500 |
| Load of sample platform load | 100 Kgs |
| Water Pressure Control | Flow meter |
| Water Supply System | Automatic water supply, Water purification system |
| Material | SUS304 stainless steel |
| Standard | UL 50E Type 3R |
|

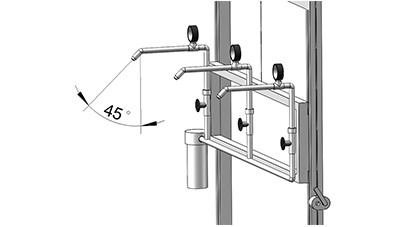

45 ° watering test |
Applicable Fields
Rain test device apply to lamps, household appliances, electricians, electrical cabinets, power supplies, communication products, signal devices and other products.
Feature
1. Water Spray Test is suitable for UL rain and 45 ° watering test of products.
2. The water test device consists of two parts: UL rain test device (3 UL nozzles above) and sprinkler test device (1 UL nozzle below).
3. The device adopts UL nozzle, which fully conforms to UL standard.
4. The bracket base adopts universal band brake casters, which is convenient to move and fix
|
|
