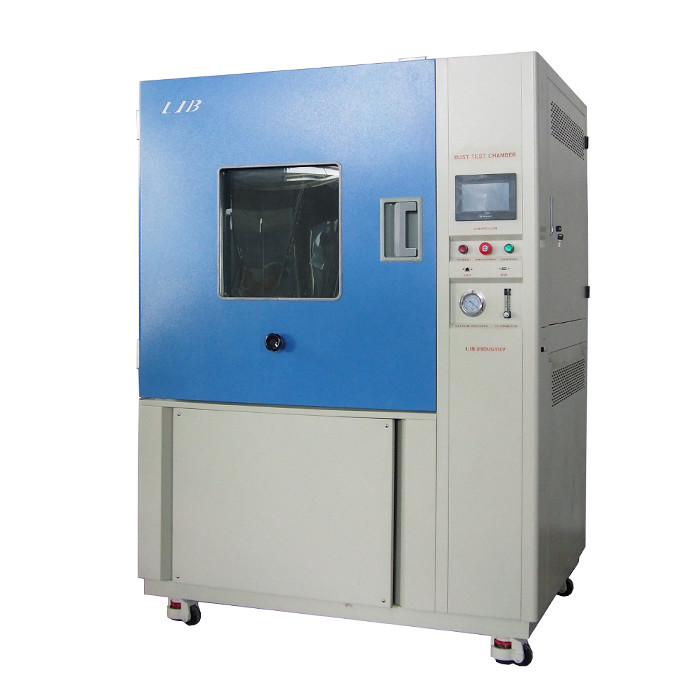

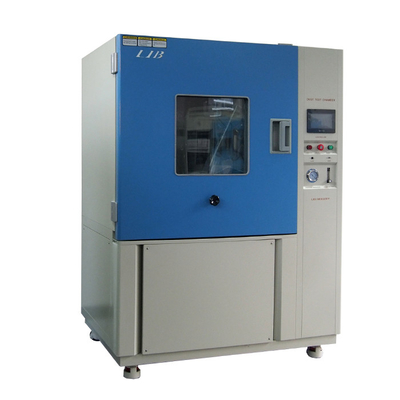

IEC 60529 Sand And Dust Test Chamber SUS304 Ingress Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | IEC60529,CAS,Rohs,CE |
| Model Number: | DI-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | IEC 60529 Dust Ingress Equipment | Overall Dimensions (mm): | 800*1000*1000 |
|---|---|---|---|
| Temperature Range: | Ambient To +50℃ | Normal Wire Diameter: | 50um |
| Normal Width Of A Gap Between Wire: | 75um | Standard: | IEC60529,ISO20653 |
| High Light: | Ingress Sand Test Chamber,Dust Testing Equipment SUS304,IEC 60529 Sand And Dust Chamber |
||
Product Description
IEC 60529 Dust Ingress Equipment
Description
Dust Ingress Equipment simulates the damage of natural wind and sand climate to products, and is suitable for testing the sealing performance of product shells. It is mainly used for the tests of IP5X and IP6X levels specified in the shell protection grade standard.
The IP5X Environmental Chamber has a vertical circulation of dust air flow, test dust can be recycled.
Main Technical Parameter
| Name | IEC 60529 Dust Ingress Equipment | |
| Model | DI-800 | |
| Internal dimensions (mm)8 | 800*1000*1000 | |
| Overall dimensions (mm) |
1040*1450*1960 |
|
| Temperature range | Ambient to +50℃ | |
| Relative Humidity | <30%RH | |
| Normal wire diameter | 50um | |
| Normal width of a gap between wire | 75um | |
| The Talcum powder amount | 2kg ~ 4kg/m3 | |
| Fight time | 0 ~ 99H59M | |
| Fan cycle time | 0 ~ 99H59M | |
| Specimen power outlet | Dust-proof socket AC220V 16A | |
| Controller | programmable color display touch screen controller | |
| PC Link, R-232 interface | ||
| Vacuum system | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |
| Circulating fan | Enclosed alloy low-noise motor, multi-vane centrifugal fan | |
| Heating system | Independent Nichrome electronic heating system | |
| Exterior material | Steel Plate with protective coating | |
| Interior material | SUS304 stainless steel | |
| Safety System | Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller | |
| Power supply | 380V 50HZ | |
Details
 |
|
|

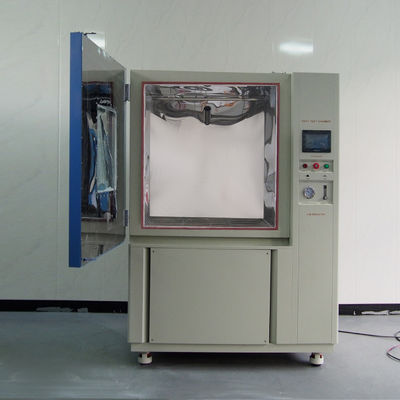

Test Area |
pressure gage |
|
|
|
Dust cycle |

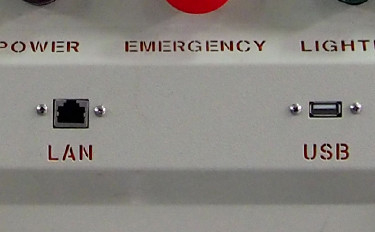

LAN and USB |
|
|
Features
1. The Environmental Dust Chamber has an air flow that carries dust and circulates vertically, and the dust used in the test can be recycled;
2. The Dust test chamber itself has good sealing performance, the condition of the indoor test can be clearly observed during the test, and there is a device for replacing dust at the bottom;
3. The large observation window is equipped with a lighting lamp to keep the inside of the chamber bright, and the tempered glass embedded in the heating body is used to clearly observe the situation in the box at any time;
4. The imported programmable controller is used to effectively ensure that the test runs according to the standard; the time of the dust blower is automatically alternated; the vibration and stop are
5. The vacuum pressure indication can be adjusted;
