95% ~ 98% RH Salt Spray Corrosion Test Chamber Laboratory University Use
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | S-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 120 sets / quarter |
|
Detail Information |
|||
| Product Name: | Salt Spray Corrosion Test Chamber | Application: | Laboratory University |
|---|---|---|---|
| Temperature: | Ambient ～60℃ | Usage: | Laboratory, University, Research Center |
| Warranty: | 36 Months | Material: | Glass Fiber |
| High Light: | 98% RH Salt Spray Corrosion Test Chamber,95% RH Salt Spray Corrosion Test Chamber,98% RH salt fog test machine |
||
Product Description

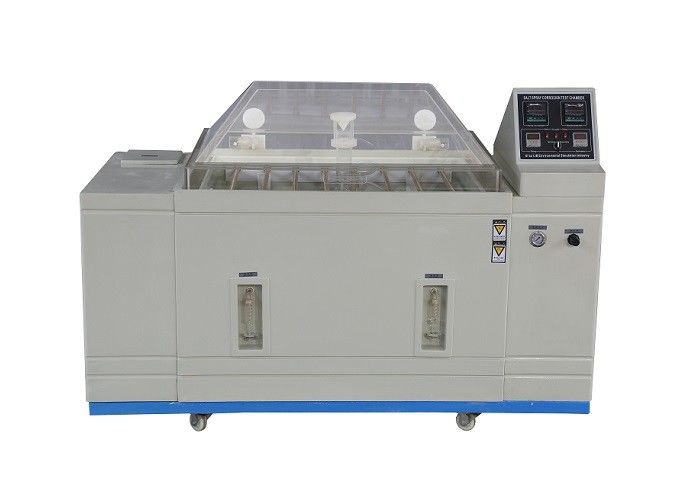

95% ~ 98% RH Salt Spray Corrosion Test Chamber Laboratory University Use
Description
Salt Spray Corrosion Test Chamber is Mainly for all kinds of material surface treatment, including coating, electroplating, inorganic and surface film, anodic treatment, anti-rust oil, and other anti-corrosion treatment, test the corrosion resistance of its products.
With an automatic/manual water filling system, can automatically replenish water level when the water level is insufficient, the test is not interrupted. Double overtemperature protection, and low water level warning, to ensure safe use.
Products Parameters
| Name |
95% ~ 98% RH Salt Spray Corrosion Test Chamber Laboratory University Use |
| Model | S-250 |
| Internal dimensions | 640*1000*500(mm) |
| Overall dimensions | 810*1800*1180(mm) |
| Temperature range | Ambient ～60℃ |
| Humidity range | 95% ~ 98% RH |
| Temperature fluctuations | +/- 0.5 ℃ |
| Temperature deviation: | +/- 2.0 ℃ |
| Test time | 1~999 hours, settable |
| Spray deposition | 1～2ml / 80cm2 · h |
| Spray type | Continuous / Periodic |
| Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller |
| Temperature sensor | PT100Ω / MV A-class |
| Salt fog collected | Fog collector and fog measure cylinder |
| salt water filtration | Salt water filter near the suction tubes( Avoid the nozzle blockage) |
| Salt water preheating | Saturated air barrel |
| Spraying system | Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution) |
| Interior /Exterior material | Glass fiber reinforced plastics |
| Standard configuration | Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder |
| safety device | over-temperature protection, water shortage protection, over current protection, earth leakage protection |
| Sealing | Hydrostatic hood seal |
| Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 |
| Power Supply | 220V 50HZ |
Advantage
 |
LIB electronics electronic salt test equipment is used to assess the anti-salt mist corrosion ability of materials and their protective layers, as well as to compare the process quality of similar protective layers, and can also be used to assess the corrosion resistance of some products. |
Salt Test Equipment Details
|
|
| Galss Fiber Test Area | Adjustable spray tower |
Test Conditions
Electronic Salt Test Equipment
1. The salt solution is 5±1% sodium chloride solution, which is formulated by chemically pure sodium chloride dissolved in distilled or deionized water. The resistivity of water is not less than 500 s2m.
2. Each formulated salt solution and after spray collection, at a temperature of 35 ± 2 degrees C, its ph value should be 6.5 to 7.2.ph value measured by acidity meter or precision test paper. The ph value of the salt solution should be regulated using a dilute solution of chemical pure hydrochloric acid or sodium chloride.
3. At any point in the workspace, a collector with a horizontal collection area of 80 cubic centimeters collects 1.0 to 2.0 ml of solution per hour. Use at least two collectors.
4. The test time is selected from the following levels by the relevant criteria:
Experimental grade A - 96h
Experimental grade B - 48h
Salt Spray Test Applications
Electronic Salt Test Equipment
1. road traffic category: road vehicle electrical and electronic equipment, rail transit locomotive vehicle equipment and equipment, auto parts, etc.
2. computer class: computer, display, host, computer components, medical equipment and other precision instruments;
