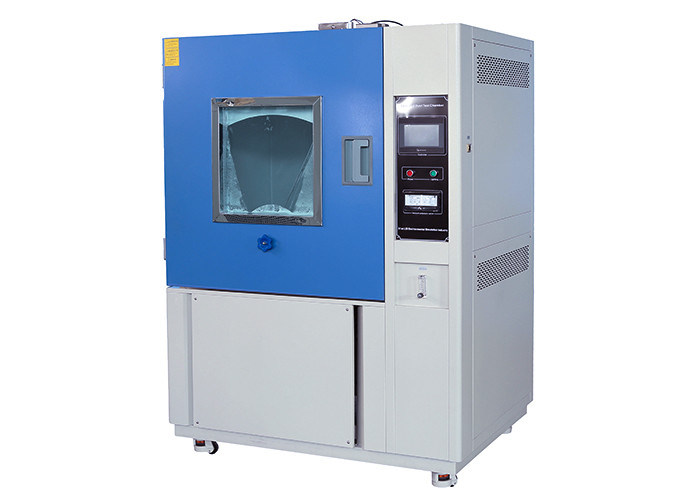

PTL Ip67 Led Luminaire Ingress Dust Testing Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | IEC60529,Rohs,CE |
| Model Number: | DI-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD2290 ~ USD9800 / SET |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Overall Dimensions (mm): | 800*1000*1000 | Temperature Range: | Ambient To +50℃ |
|---|---|---|---|
| Normal Wire Diameter: | 50um | Normal Width Of A Gap Between Wire: | 75um |
| Standard: | IEC60529,ISO20653 | Controller: | Programmable Color Display Touch Screen Controller |
| High Light: | Ingress Dust Testing Equipment,Led Luminaire Dust Testing Equipment,Ip67 Dust Testing Equipment |
||
Product Description
Led Luminaire Iec 60529 Ingress Testing Ip66 Ip67 Sand And Dust Test Device
Description of Sand And Dust Test Device
Led Luminaire Iec 60529 Ingress Testing Ip66 Ip67 Sand And Dust Test Device is used for checking the proteced against solid foreign objects to verify the degrees of protection IP5X "Dust-protected" and IP6X "Dust-tight"
Test equipment
The tests are carried out by means of a PTL dust test chamber with a sealed test cabinet, in which talcum powder is kept in suspension by means of an air stream. The talcum powder must be prepared in such a manner that it will pass through a sieve with a mesh size 75um. The quantity of talcum given in the regulation is 2 kg -4kg per cubic metre test cabinet volume.
Main Technical Parameter of Sand And Dust Test Device
| Name | Led Luminaire Iec 60529 Ingress Testing Ip66 Ip67 Sand And Dust Test Device | |
| Model | DI-800 | DI-1000 |
| Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 |
| Overall Dimension (mm) | 1040*1450*1960 | 1200*1450*1960 |
| Interior Volume (L) | 800 | 1000 |
| Temperature Range | Ambient ~ +50℃ | |
| Humidity Range | < 30% RH | |
| Normal Wire Diameter | 50um | |
| Nominal Width of a Gap Between wires | 75um | |
| Specimen Power Outlet | Dust-proof socket 16A | |
| Heating Element | Nichrome heater | |
| Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |
| Controller | Programmable color LCD touch screen controller | |
| Ethernet connection, PC Link | ||
| Door Lock | Electromagnetic lock | |
| Maximum Noise | 65 dBA | |
| Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |
| Standard | IEC 60529, ISO 20653 | |
 |
|
| Test Area Adopt stainless steel, the sample frame can bear 50kg measuring pieces, |
Controller Adopt programmable controller, support many kinds of languages, operation is simple |
|
|
| The lamp The dustproof lamp can see the test part clearly through the observation window during the test |
Vacuum System Equipped with a pressure gauge, air filter, pressure regulator, connecting tube |
Accessories
The following are ip6x dust chamber motor optional accessories, LIB can be customized according to customer needs
1.Talcum powder
2.Testing sieve
3.Heating System
4.Cable Wire
5.Interface
LIB Service
1.Help factories or laboratories to establish IP series laboratories, including: ip5x ip6x dust ip test chamber, rain spray laboratory
2.Global service centers and agents
3.Long three-year after-sales service
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-14 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: No, we don't provide the samples for testing.
Q: What is your warranty ?
A: The warranty for the equipment is 3 year. Definitely, all equipment are tested well and runs well by testing our customer's sample before shipment. Please contact us if the equipment doesn't work well after being shipped to your company. We will guide you how to fix it. The spare parts or components will be sent if necessary.
