SUS304 98% RH 80L Benchtop Environmental Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，ROHS |
| Model Number: | T-80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 3-14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram，PayPal |
| Supply Ability: | 120 Sets/Quarterly |
|
Detail Information |
|||
| Power: | 220V Or 380V AC±10% 50/60Hz | Usage: | Benchtop Environmental Chamber |
|---|---|---|---|
| Humidity Range: | 20%~98% | Product Name: | Benchtop Environmental Test Chamber |
| Warranty: | 12 Months | Controller: | Programmable LCD Touch Screen |
| High Light: | SUS304 Benchtop Environmental Chamber,80L Benchtop Environmental Chamber,98% RH Benchtop Environmental Chamber |
||
Product Description

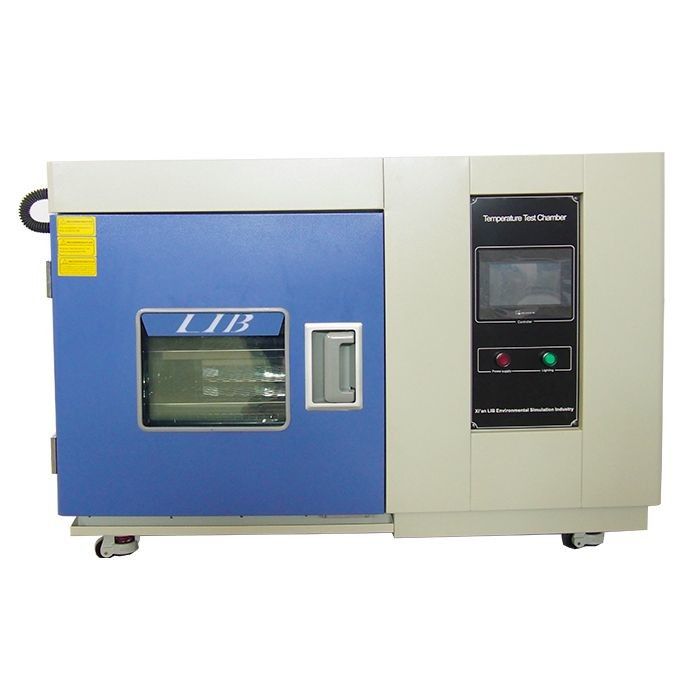

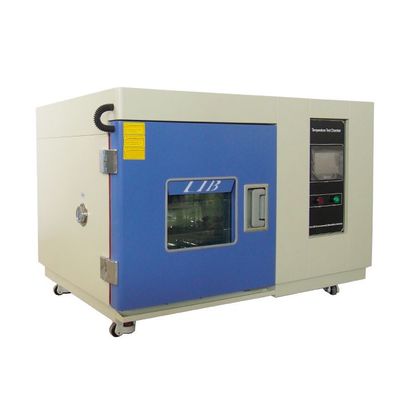

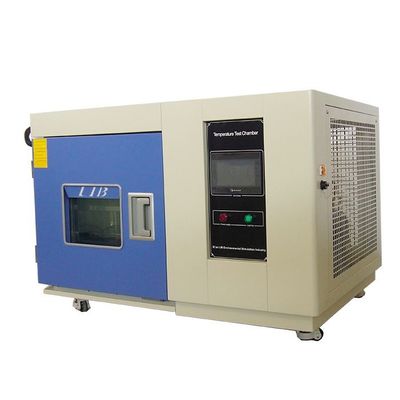

Small Temperature Conditioning Chamber
◆Product Description
LIB industry thanks to its wide experience, has developed a huge range of products to test all type of specimen and to detect unpredictable future defects that may arise after years of operation.
Small temperature conditioning chamber provide high performances in limited space. Small footprint, easy installation, low power consumption, low noise level and full basic features including the inspection windows, makes this chamber the ideal choice. A compact unit easy to be installed in any R&D Department capable of testing small components and products.
◆Parameters
Small temperature conditioning chamber has 27+different models, depending on the volume chosen, starting with 50 l model up to 1000 l model, to fit each customer needs.
| Model | Volume | Temperature Range |
| T-50 | 50L | -20℃ ～ +150 |
| T-80 | 80L | -40℃ ～ +150 ℃ |
| -70℃ ～ +150 ℃ |
| Name | Small Temperature Conditioning Chamber |
| Temperature Fluctuation | ± 0.5 ℃ |
| Temperature Deviation | ± 2.0 ℃ |
| Humidity Range | 20% ~ 98% RH |
| Humidity Deviation | ± 2.5% RH |
| Cooling Rate | 1 ℃ / min |
| Heating Rate | 3 ℃ / min |
| Cooling system | Mechanical compression refrigeration system |
| Refrigerating unit | French TECUMSEH compressor |
| Refrigerant | R404A, R23 |
| Controller | Programmable color LCD touch screen controller, Ethernet connection, PC Link |
| Air Circulation | Centrifugal wind fan |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Thermal Insulation | Polyurethane foam and insulation cotton |
| Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves |
| Power Supply | 220V 50Hz / 380V 50Hz |
| Maximum Noise | 65 dBA |
| Environmental Conditional | 5℃～+35 ℃ ≤85% RH |
◆Details
 |
|
|
Workroom |
Data Download More option function:Multi-language display, PC link,USB, App |
|
|
|
Controller Programmable color touch screen type 120 programs, RS232 for PC link |
Cable hole Internal diameters 50mm, 125mm or custom; Rubber sealing; Stainless steel cover; |
◆Complete Basic Configuration
Inspection window
Ecological refrigerant
Internal lighting
Interfaces: Ethernet port for connection to the remote control system and RS232
Digital min. /max. thermostat: with independent probe, completely settable curve
Air condenser
Auxiliary contact
Swivel castors
