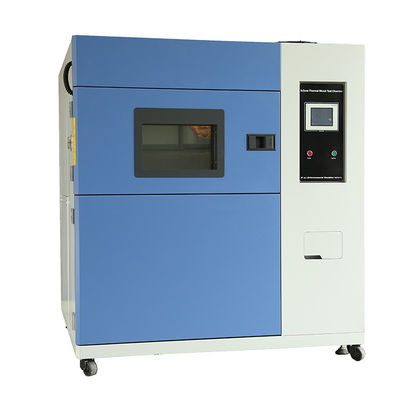

Environmental 220℃ Thermal Shock Test Chamber High Temperature 3 Zones
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | 3TS-210 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-10 days ( check if have stock) |
| Payment Terms: | Western Union, MoneyGram,paypal,, L/C, D/A, D/P, T/T |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | 3 Zones Thermal Shock Test Chamber | Pre-heat Room: | Upper Limit Temperature:+220℃ |
|---|---|---|---|
| Pre-cool Room: | Lower Limit Temperature :-70℃ | Controller: | Programmable Color LCD Touch Screen Controller |
| Power Supply: | 380V 50HZ | Interior Material: | SUS304 Stainless Steel |
| High Light: | 220c Thermal Shock Test Chamber,3 Zones Thermal Shock Test Chamber,220c thermal shock test equipment |
||
Product Description
Description
3 Zones Thermal Shock Test Chamber simulates the changed environment of high low temperature, which is used to detect the resistance ability of electronic, automobile, rubber, plastics, aerospace science and technology, military technology and advanced communication equipment and other products in the heat and cold conditon, so as to judge the reliability and stability for the products, improve the products quality and provide the basis for the reliability.
Specifications
| Name | Environmental 220℃ High temperature 3 Zones Thermal Shock Test Chamber | |
| Model | 3TS-210 | |
| Internal dimensions(mm) | 700*600*500 | |
| Overall dimensions(mm) | 1350*2100*2200 | |
| Sample Loads | 15kg | |
|
Pre-heat room
|
Upper limit preheat temperature | +220℃ |
| Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | |
|
Pre-cool room |
Lower limit pre-cool temperature | -70℃ |
| Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | |
| Test room | High temperature exposure range | Ambient temperature +20 to +200°C |
| Low temperature exposure range | –65 to -5°C | |
| Recovery time | Within 15 minutes | |
| Temperature fluctuation | ≤±0.5℃ | |
| Temperature deviation | ≤±3℃ | |
| Controller | Programmable color LCD touch screen controller | |
| Refrigerant | R404A, R23 | |
| Air circulation | Centrifugal wind fan | |
| Exterior material | Steel Plate with protective coating | |
| Interior material | SUS304 stainless steel | |
| Thermal insulation | Polyurethane foam | |
| Standard configuration | 2 pieces of stainless steel shelves, Φ 50 round cable port | |
| Power Supply | 380V 50HZ | |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH | |
More Details
 |
|
| Test Area | Programmable Controller |
Features
1. programmable LCD touch controller.
2. Three sections: High temperature chamber, low temperature chamber, testing chamber.
3. High formula memory capacity can store 120 patterns, 9999 cycles, setting time for each pattern is 9999 Hrs 59 Mins.
4. Environmental test equipment support connection to computer, USB,
5. Choose 2 zone/3 zone shocks.
7. Best after sales service: One year free parts maintenance.
8. Meet international test standards.
9. Customization is available & welcomed.
LIB 3-zone Thermal Shock Test Chamber
Three zone thermal shock test chamber utilizes controlled areas for hot, ambient and cold temperatures. The product is moved from ambient to hot or ambient to cold zones. Fast thermal test chamber can be programmed to include a dwell period in the ambient zone if desired.
FAQ
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2 : How to choose the most suitable products?
A: You need to do is tell me your testing requirements and LIB Industry will provide a solution for you.
Q3 : Can you arrange installations and commissioning in our lab?
LIB All products shall be debugged for 72 hours before shipment, and a test report shall be issued.
LIB supports online training installation and overseas installation services
