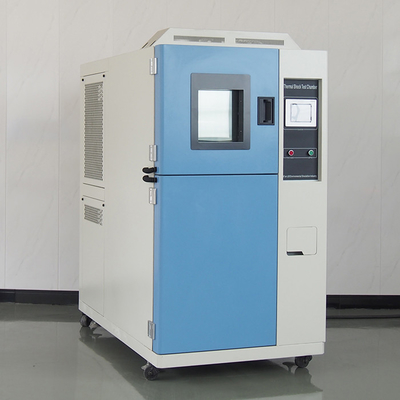

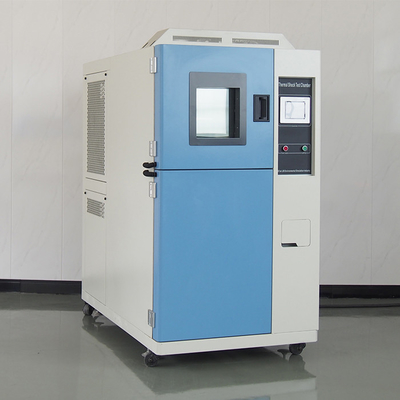

High Low Temperature Thermal Shock Tester Air Cool Type
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE RoHS ISO17025 |
| Model Number: | TS-340 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | Thermal Shock Tester | Pre-high Temp.: | +220℃ |
|---|---|---|---|
| Volume: | 22L, 72L, 211L, 505L And More | Power Supply: | 380v, 50Hz |
| Cooling Mode: | Air-cool Type | Temperature Range: | -70C To 150C |
| High Light: | Low Temperature Thermal Shock Tester,High Temperature Thermal Shock Tester,Air Cool Thermal Shock Tester |
||
Product Description
Description
Thermal shock tester can be used to test the structure of the material or composite material, in an instant by a very high temperature and low temperature continuous environment can bear degree of to in the shortest time test its due to thermal expansion and contraction caused by the changes of chemical or physical damage.
Parameter
| Name | Air To Air Thermal Shock Chamber | ||||
| Model | TS-340 | ||||
| Inner dimensions of test room (mm) | 450*450*360 | ||||
| Volume of test room (mm) | 72L | ||||
| Load of test room | 30kg | ||||
| Overall dimensions(mm) | 1710*1020*1845 | ||||
|
Pre-heat room
|
Upper limit preheat temperature | +220℃ | |||
| Heating time | Ambient temperature to ~ + 200℃, within in 30 minutes. | ||||
|
Pre-cool room |
Lower limit pre-cool temperature | -75℃ | |||
| Cooling time | Ambient temperature to ~ -70℃, within in 30 minutes | ||||
| Test room | High temperature exposure range | Ambient temperature +20 to +200°C | |||
| Low temperature exposure range | –65 to -5°C | ||||
| Recovery time | Within 15 minutes | ||||
| Temperature fluctuation | ≤±0.5℃ | ||||
| Temperature deviation | ≤±3 ℃ | ||||
| Controller | Programmable color LCD touch screen controller | ||||
| Cooling system | Mechanical compression refrigeration system | ||||
| Refrigerating unit | French TECUMSEH compressor | ||||
| Refrigerant | R404A, R23 | ||||
| Air circulation | Centrifugal wind fan | ||||
| Exterior material | Steel Plate with protective coating | ||||

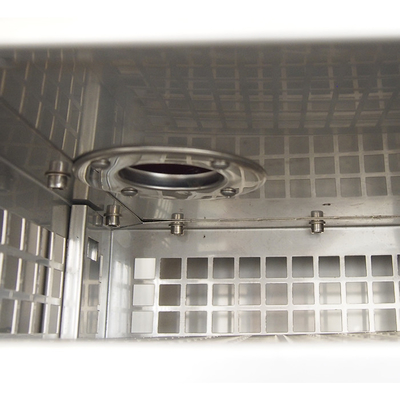

| Interior material | SUS304 stainless steel | ||||
| Power Supply | 380V 50HZ | ||||
| Environmental conditional | 5℃～+40 ℃ ≤85% R | ||||
Structure
 |

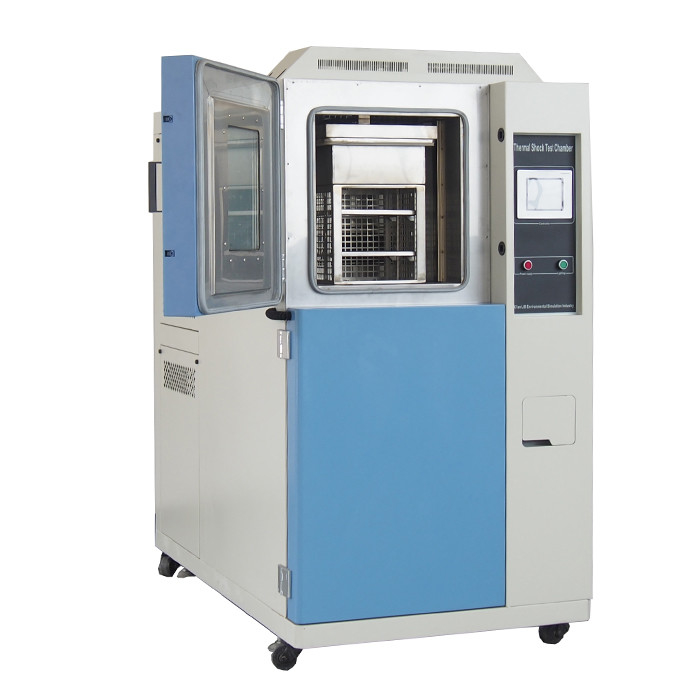

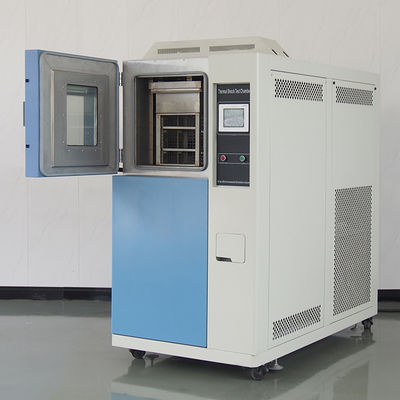

Thermal shock machine ,The upper part of the low temperature chamber, the middle for the studio, the lower part of the high temperature chamber. Sample does not move in the studio, the high and low temperature impact the gas damper dynamic switching to automatic switching, the cabinet is arranged on the upper right corner of the control, easy to operate. |
Advantage
●Temperature Range: -70°C~220°C Or Tailor-made
●Test Space:22 To 505 Litres
●Electronic: AC220V·50HZ/380V·50HZ
●Meet Test Standard: IEC, ASTM, MIL, ISO Etc
●Interior Material:SUS 304
●Refrigeration:Unit Cooling Mode / Dual Cooling Method (air-cooled)as Per Size Of Chamber And Specific Low Temperature
●Temp Conversion Time:≤10 Seconds
●Temp Recovery Time:≤5 Min
Main Features
1. Three sections: High temperature chamber, low temperature chamber, testing chamber.
2. High formula memory capacity can store 120 patterns, 9999 cycles, setting time for each pattern
is 9999 Hrs 59 Mins.
3. RS-485 communication interface device, capable of connecting with computer.
4. Choose 2 zone/3 zone shocks.
5. Touch screen controller
6.Support for custom(Color, size, Logo, material,)
1. Three sections: High temperature chamber, low temperature chamber, testing chamber.
2. High formula memory capacity can store 120 patterns, 9999 cycles, setting time for each pattern
is 9999 Hrs 59 Mins.
3. RS-485 communication interface device, capable of connecting with computer.
4. Choose 2 zone/3 zone shocks.
5. Touch screen controller
6.Support for custom(Color, size, Logo, material,)
