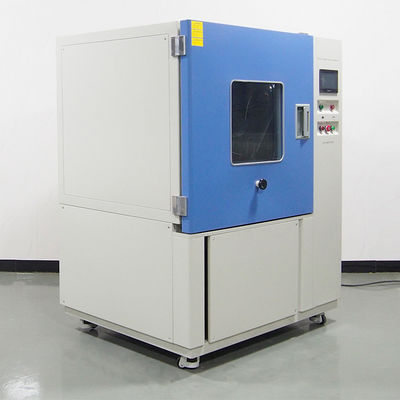

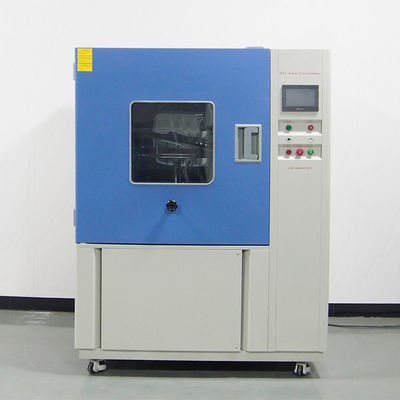

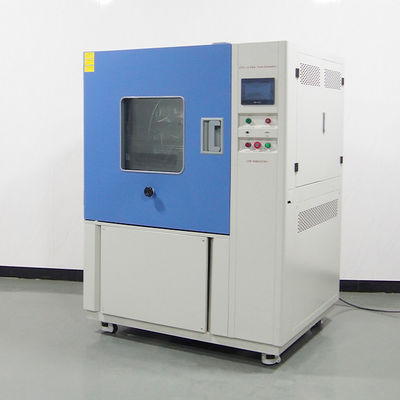

IEC60529 Water Spray Test Chamber For Exterior Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS, |
| Model Number: | R-1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 140 Sets/ Quarter |
|
Detail Information |
|||
| Type: | IPX1 IPX2 IPX3 IPX4 Test | Standard: | IEC 60529, ISO20653 |
|---|---|---|---|
| Water System: | Water Circulation System | Interior Material: | SUS304 Stainless Steel |
| Application: | Radar Cone Top, Aerospace | Controller: | Programmable Controller |
| High Light: | IEC60529 Water Spray Test Chamber,SUS304 Water Spray Test Chamber,IEC60529 environmental test chamber |
||
Product Description
IEC60529 Test Chamber
IEC60529 test chamber for exterior lighting and signaling devices and automotive protective shell lamps, can provide realistic simulation of electronic products and Components during transport and use may be subject to various environmental and water spray sprinkler test.
In order to achieve the waterproof performance testing of various products
Main Parameters
|
Name |
IEC60529 Test Chamber |
|
|
Model |
R-800 |
R-1200 |
|
Internal Dimensions (mm) |
900*900*900 |
1400*1400*1400 |
|
Overall Dimensions (mm) |
1120*1460*1660 |
1600*1950*2100 |
|

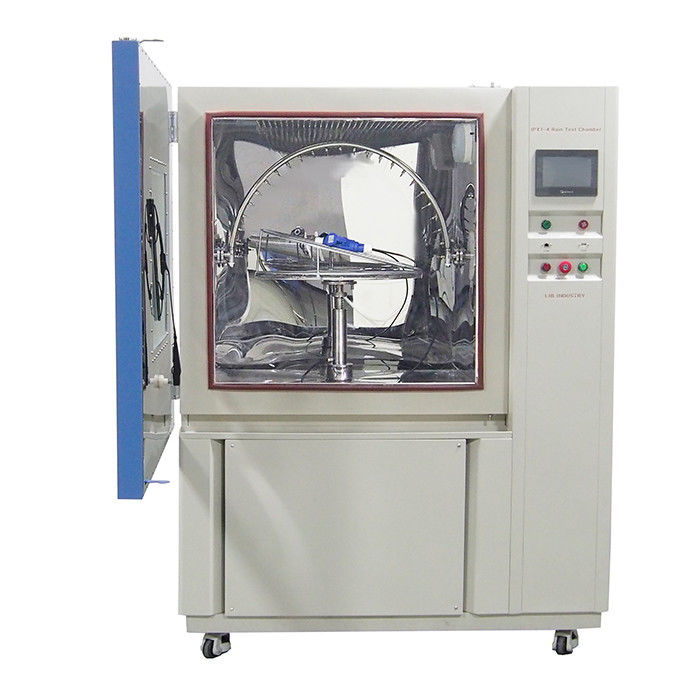

Oscillating Tube Radius |
0 ~ ±180° (Adjustable) |
600mm |
|
Swing Angle of Oscillating Tube |
φ0.4mm (IPX3 X4) |
|
|
Turntable Rotation Speed |
1r/min (Adjustable) (IPX3 X4) |
|
|
Water Pressure Control |
Flowmeter |
|
|
Controller |
Programmable color LCD touch screen controller Ethernet connection, PC Link |
|
|
Build-in Water Tank(mm) |
370*375*950 |
|
|
View Window Size(mm) |
475*475 |
|
|
Water supply system |
Water tank, booster pump, Automatic water supply, Water purification system |
|
|
Power Supply |
380V 50Hz |
|
|
Maximum Noise |
65 dBA |
|
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|
|
Standard |
IEC 60529, ISO20653 |
|
Types of IEC60529 Test Chamber
LIB can provide all IP test equipment
 |
|
| IPX1X2 drop test equipment | IPX3X4 water test equipment |
|
|
| IPX5X6 test equipment (D 6.3 mm, D 12.5 mm nozzle); | IPX7X8 water immersion test equipment (with water temperature control and 10 atmospheric pressure adjustable); |
Advantage
1. With water circulation system, save water
2. With water filtration system, remove impurities in water
3. Standard equipment, support customization
4. Support the establishment of IP laboratory (IPX1~IPX9K,dust Chamber)
