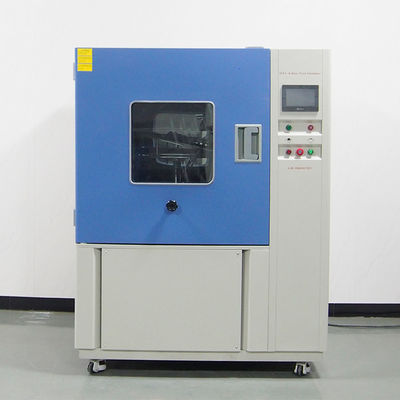

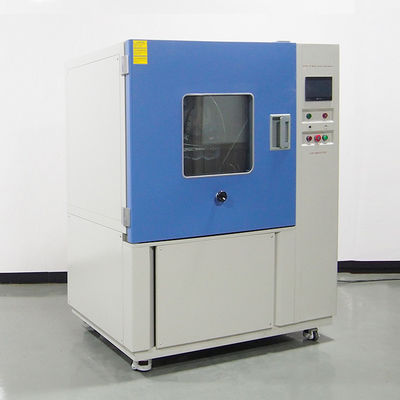

Water Resistance IPX3 Water Spray Test Chamber Waterproof Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS, |
| Model Number: | R-1200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 140 Sets/ Quarter |
|
Detail Information |
|||
| Type: | IPX3 Test IPX4Test | Application: | Lamps, Electric Cabinets; |
|---|---|---|---|
| Standard: | IEC 60529, ISO20653 | Water System: | Water Circulation System |
| Interior Material: | SUS304 Stainless Steel | Controller: | Programmable Controller |
| High Light: | IPX3 Water Spray Test Chamber,Water Resistance Water Spray Test Chamber,IPX3 Waterproof Tester |
||
Product Description
Description
IPX3 waterproof tester is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4. Rain waterproof tester is used for the waterproof test of the electrical equipment.
Main Parameters
|
Name |
Water Resistance IPX3 Waterproof Tester |
|
|
Model |
R-800 |
R-1200 |
|
Internal Dimensions (mm) |
900*900*900 |
1400*1400*1400 |
|
Overall Dimensions (mm) |
1120*1460*1660 |
1600*1950*2100 |
|
Oscillating Tube Radius |
0 ~ ±180° (Adjustable) |
600mm |
|
Swing Angle of Oscillating Tube |
φ0.4mm |
|
|
Turntable Rotation Speed |
1r/min (Adjustable) |
|
|
Water Pressure Control |
Flowmeter |
|
|
Controller |
Programmable color LCD touch screen controller Ethernet connection, PC Link |
|
|
Build-in Water Tank(mm) |
370*375*950 |
|
|
View Window Size(mm) |
475*475 |
|
|
Water supply system |
Water tank, booster pump, Automatic water supply, Water purification system |
|
|
Power Supply |
380V 50Hz |
|
|
Maximum Noise |
65 dBA |
|
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|
|
Standard |
IEC 60529, ISO20653 |
|
Details
 |
|
|
Water quality filter The tank is equipped with a water filter to prevent clogging of the nozzl |

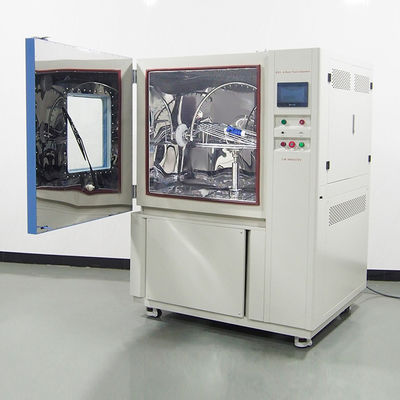

Turntable IEC 60529 waterproof tester equip high quality stainless steel Turntable,,adjustable |

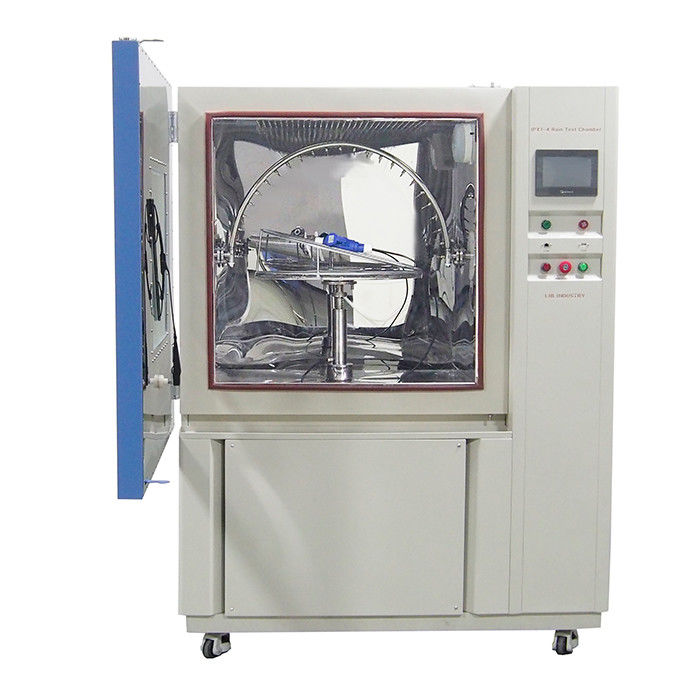

■The oscillating tube part of water IPX3 tester is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.
■The angle adjustment is accurate. The structure is stable and durable. It is equipped with rotating stage through which the rotating of 90°can be achieved. It is also equipped with clean water filtration unit to prevent the pinhole from jamming.
