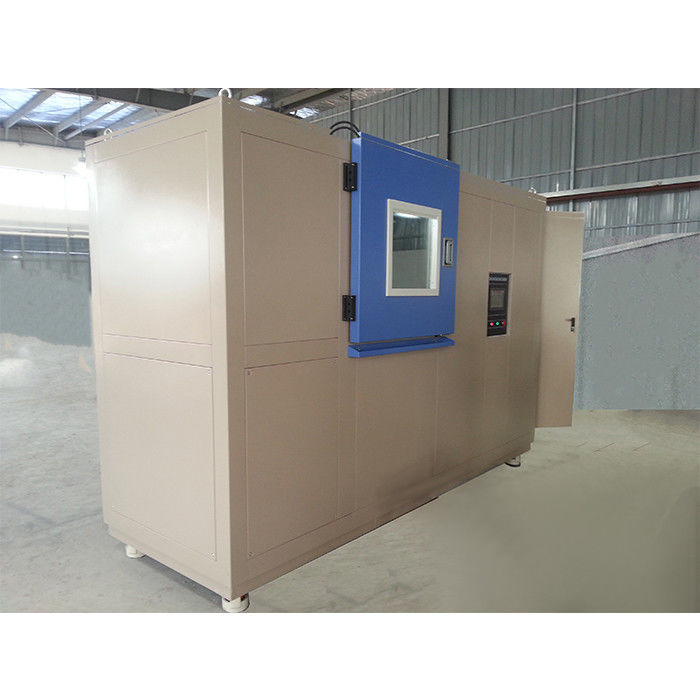

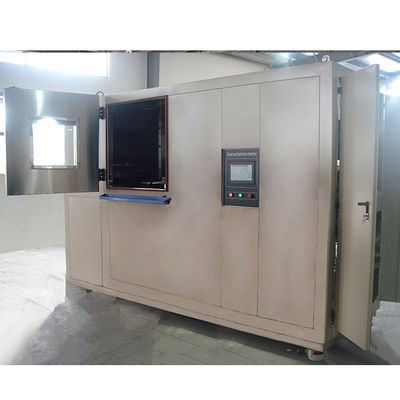

MIL STD 810 Blowing Sand And Dust Test Chamber 1000L
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | Rohs,CE |
| Model Number: | DIM-1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 120 sets / quarter |
|
Detail Information |
|||
| Air Velocity: | 18.0 -29.0m/s | Concentration Of Dust: | 10.7±7g/ M³ |
|---|---|---|---|
| Dust Particles: | ＜ 150μm | Concentration Of Sand: | 0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³ |
| Sand Particles: | 149μm - 600μm, 600μm - 850μm | ||
| High Light: | Sand And Dust Test Chamber 1000L,MIL STD 810 Sand And Dust Test Chamber,MIL STD 810 dust test chamber |
||
Product Description
Description
Blowing sand dust test chamber,MIL-STD-810G standard sand dust test chamber is suitable for testing the sealing performance of the shell of the product, mainly used for the shell protection grade test. It is mainly to simulate the damage caused by sandstorm weather on locks, auto parts, seals, electric instruments and other products.
Technical Specification
| Name | MIL STD 810 Blowing Sand Dust Test Chamber |
| Model | DIM-1000 |
| Internal Dimension | 1000*1000*1000mm D*W*H |
| Overall Dimension | 2800*3500*2000mm D*W*H |
| Interior Volume | 1000L |
| Air velocity | 1.5 -8.9m/s |
| Concentration of dust | 10.7±7g/ m³ |
| Dust particles | ＜ 150μm |
| Air velocity | 18.0 -29.0m/s |
| Concentration of sand | 0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³ |
| Sand particles | 149μm - 600μm, 600μm - 850μm |
| Controller | Programmable color LCD touch screen controller |
| Door Lock | Electromagnetic lock |
| Testing Platform Diameter | 600mm |
| Testing Platform Speed | 1-7 r.p.m |
| Exterior Material | A3 Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Standard | MIL-STD- 810g |
 |
|

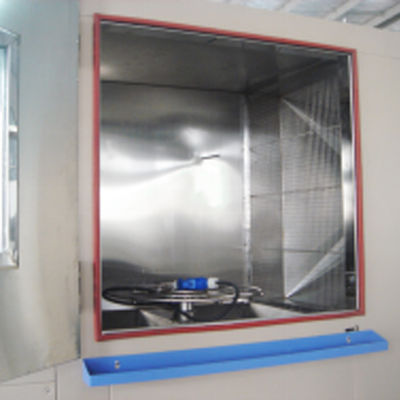

| Workroom | Viewing Window |
|
|

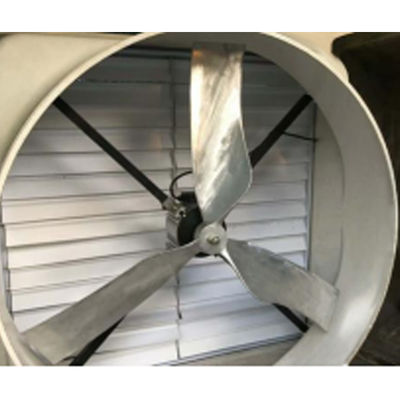

| Large Centrifugal Fan | Wind Speed Sensor |
MIL-STD-810G Standard Sand Dust Test
MIL-STD-810G dust chamber test range
Air Velocity: 1.5m/s ~ 8.9m/s,
Temperature range: 20℃ to 80℃,
Humidity range: 10% ~ 30%RH,
Dust particles (blowing) : 3.0-17.6g/m3
Test Conditions
MIL-STD-810G sand test chamber,Test Conditions that Must be Confirmed
Test standard
Name and size of test sample
Test surface and area
Sample testing direction
Test Angle
Test time
Sand dust particle size
Sand blowing concentration
Test wind speed
Test temperature
Relative humidity
