Temperature Thermal Shock Test Machine 160L 210L 500L 1000L
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE RoHS ISO17025 |
| Model Number: | TS-340 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | Thermal Shock Test Machine | Pre-high Temp.: | +220℃ |
|---|---|---|---|
| Volume: | 160L, 210L, 500L, 1000L And More | Cooling Mode: | Air-cool Type |
| Temperature Range: | -70C To 150C | Power Supply: | 380v, 50Hz |
| High Light: | Temperature Thermal Shock Test Machine,Thermal Shock Test Machine 160L,Thermal Shock Test Machine Price |
||
Product Description

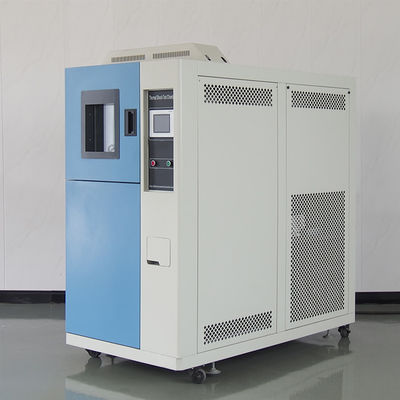

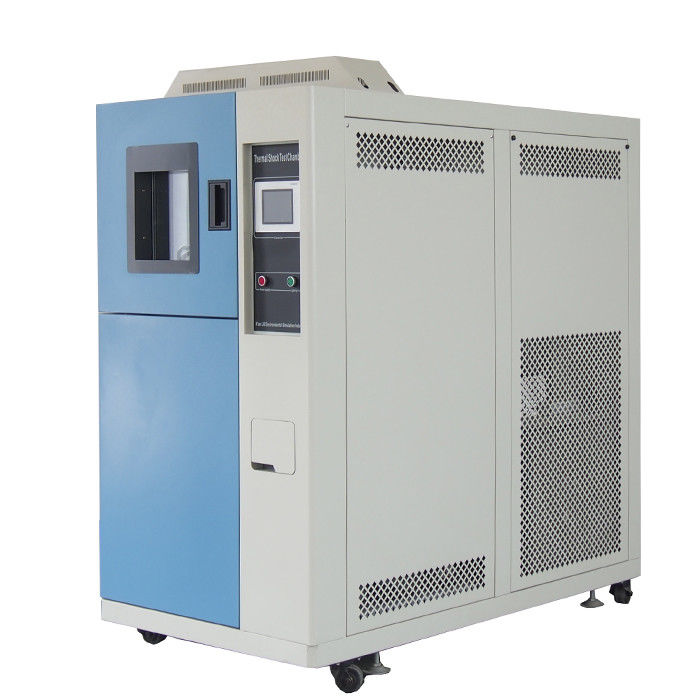

LIB Temperature Thermal Shock Test Machine
Description
LIB Temperature Thermal Shock Test Machine for thermal shock tests are used to subject the sample to severe shocks through the sudden and repeated passage from a high temperature to a low temperature area, with the aim of identifying defective components.
Products Parameters
|
Name |
LIB Temperature Thermal Shock Test Machine |
||||
|
Model |
TS-340 |
||||
|
Inner dimensions of test room (mm) |
450*450*360 |
||||
|
Volume of test room (mm) |
72L |
||||
|
Load of test room |
30kg |
||||
|
Overall dimensions(mm) |
1710*1020*1845 |
||||
|
Pre-heat room
|
Upper limit preheat temperature |
+220℃ |
|||
|
|
Heating time |
Ambient temperature to ~ + 200℃, within in 30 minutes. |
|||
|
Pre-cool room |
Lower limit pre-cool temperature |
-75℃ |
|||
|
|
Cooling time |
Ambient temperature to ~ -70℃, within in 30 minutes |
|||
|
Test room |
High temperature exposure range |
Ambient temperature +20 to +200°C |
|||
|
|
Low temperature exposure range |
–65 to -5°C |
|||
|
Recovery time |
Within 15 minutes |
||||
|
Temperature fluctuation |
≤±0.5℃ |
||||
|
Temperature deviation |
≤±3 ℃ |
||||
|
Controller |
Programmable color LCD touch screen controller |
||||
|
Cooling system |
Mechanical compression refrigeration system |
||||
|
Refrigerating unit |
French TECUMSEH compressor |
||||
|
Refrigerant |
R404A, R23 |
||||
|
Air circulation |
Centrifugal wind fan |
||||
|
Exterior material |
Steel Plate with protective coating |
||||
|
Interior material |
SUS304 stainless steel |
||||
|
Power Supply |
380V 50HZ |
||||
|
Environmental conditional |
5℃～+40 ℃ ≤85% R |
||||
Design and Test
 |

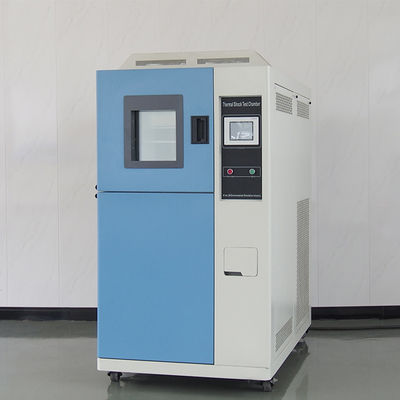

LIB Temperature Thermal Shock Test Machine Two zone design, the top is hot chamber, the bottom is cold chamber, the sample in the basket, through the slide from hot chamber to cold chamber ). |
Design and Construction
|
|
|
|

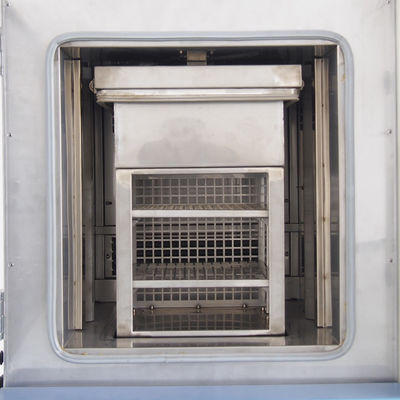

Workroom - Basket
●Nice ruggedness and long life. |
Controller |
Characteristic
LIB Temperature Thermal Shock Test Machine
1.Control interface will display alarm reason and provide check methods, machine has emergency stop button.
2. Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.
3.With PC Link,USB, APP...
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 11 years focusing on test equipment field,9 years exporting experience.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 36months,we can help you to repair your problem controller freely.
