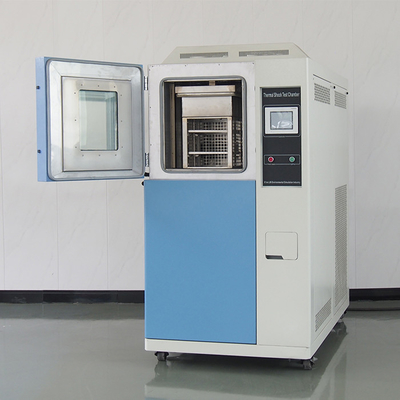

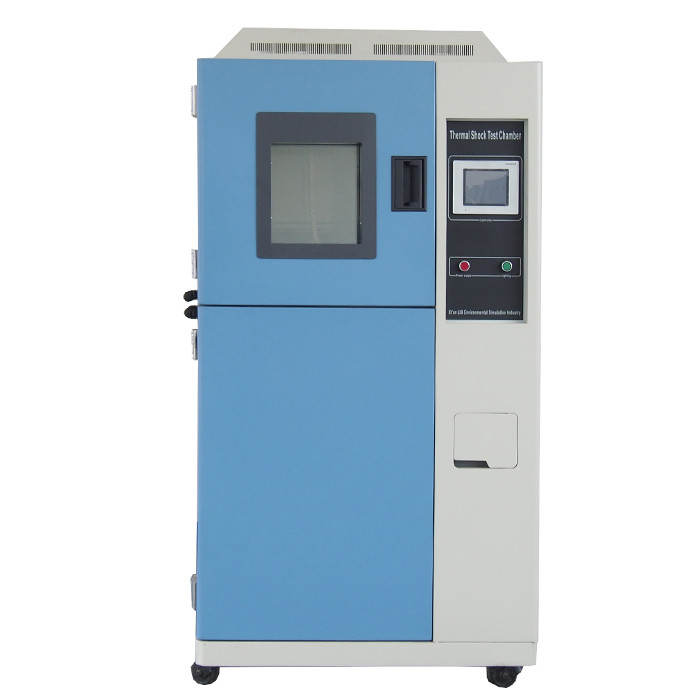

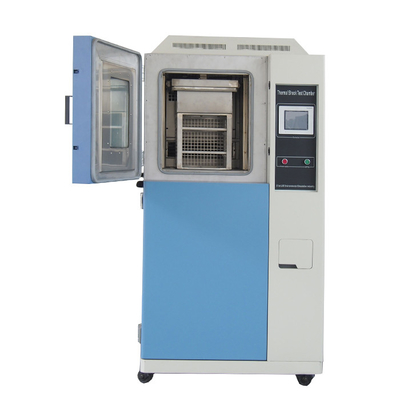

Climate -75℃ Thermal Environmental Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE RoHS ISO17025 |
| Model Number: | TS-340 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 10 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | Thermal Environmental Chamber | Pre-high Temp.: | +220℃ |
|---|---|---|---|
| Volume: | 160L, 210L, 500L, 1000L And More | Cooling Mode: | Air-cool Type |
| Temperature Range: | -70C To 150C | Power Supply: | 380v, 50Hz |
| High Light: | -75C Thermal Environmental Chamber,Climate Thermal Environmental Chamber,-75C temperature cycling chamber |
||
Product Description
Description
Thermal environmental chamber is used to test endurance life for material or compostite material structure,in an instant extremely high low temperature.It can check chemical or physical damage of the specimen because of expansion&contraction in the shortest time.
Products Parameters
|
Name |
Environmenatl -75℃ Thermal Environmental Chamber |
||||
|
Model |
TS-340 |
||||
|
Inner dimensions of test room (mm) |
450*450*360 |
||||
|
Volume of test room (mm) |
72L |
||||
|
Load of test room |
30kg |
||||
|
Overall dimensions(mm) |
1710*1020*1845 |
||||
|
Pre-heat room
|
Upper limit preheat temperature |
+220℃ |
|||
|
|
Heating time |
Ambient temperature to ~ + 200℃, within in 30 minutes. |
|||
|
Pre-cool room |
Lower limit pre-cool temperature |
-75℃ |
|||
|
|
Cooling time |
Ambient temperature to ~ -70℃, within in 30 minutes |
|||
|
Test room |
High temperature exposure range |
Ambient temperature +20 to +200°C |
|||
|
|
Low temperature exposure range |
–65 to -5°C |
|||
|
Recovery time |
Within 15 minutes |
||||
|
Temperature fluctuation |
≤±0.5℃ |
||||
|
Temperature deviation |
≤±3 ℃ |
||||
|
Controller |
Programmable color LCD touch screen controller |
||||
|
Cooling system |
Mechanical compression refrigeration system |
||||
|
Refrigerating unit |
French TECUMSEH compressor |
||||
|
Refrigerant |
R404A, R23 |
||||
|
Air circulation |
Centrifugal wind fan |
||||
|
Exterior material |
Steel Plate with protective coating |
||||
|
Interior material |
SUS304 stainless steel |
||||
|
Power Supply |
380V 50HZ |
||||
|
Environmental conditional |
5℃～+40 ℃ ≤85% R |
||||
Design and Construction
|
|

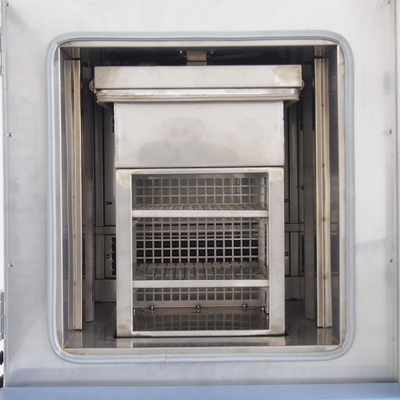

Safety Basket and Test Area |
Programmable Controller
 |
LCD touch screen controller |
Feature
Thermal environmental chamber
1. LCD touch screen controller can display multiple languages
2. High formula memory capacity can be set to 120 patterns. The maximum cycle setting is 9999 times. The maximum setting of each section is 999 Hrs 59 Mins.
3. Equipped with RS-232C communication interface device, capable of controlling / editing/ recording in the linkage with the computer and two set dynamic connection point and convenient application.
4. thermal cycling test chamber,All systems are fully automatic, and all process are precisely controlled with PLC.
