Weathering Xenon Accelerated Aging Chamber 280nm~800nm
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | XL-750 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 14 days ( check if have stock) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram，paypal |
| Supply Ability: | 120 sets / quarter |
|
Detail Information |
|||
| Name: | Xenon Accelerated Aging Chamber | Temperature Range: | Ambient ~100℃±2°C |
|---|---|---|---|
| BPT Temperature: | BPT +35 To +120 ℃ | Bandwidth Measurement: | 280nm~800nm |
| Certificate: | CE,RoHS,ISO17025 | Specimen Capacity: | 42pcs |
| High Light: | Weathering Xenon Accelerated Aging Chamber,Accelerated Aging Chamber Price,Xenon accelerated aging test chamber |
||
Product Description

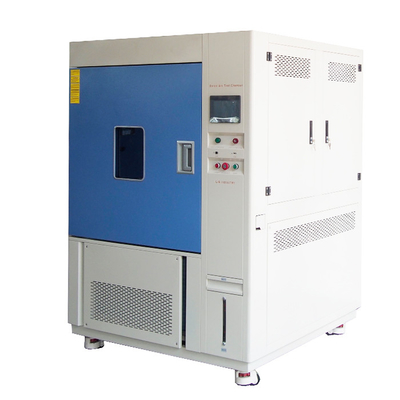

Weathering Xenon Accelerated Aging Chamber
Description
Xenon accelerated aging chamber uses a xenon lamp to simulate the effect of sunlight, condensation moisture is used to simulate rain and dew, and the material to be tested is placed in a cycle of alternating light and moisture at a certain temperature. The test can be performed in days or weeks. Reproduce the hazards that occur outdoors for months or even years.
You just need to tell us your needs, we recommend a suitable accelerated aging chamber for you.
Specification
|
Name |
Weathering Xenon Accelerated Aging Chamber |
|
Model |
XL-750 |
|
Internal dimensions D*W*H |
950*950*850 mm |
|
Overall dimensions D*W*H |
1300*1420*1800 mm |
|
Specimen Capacity |
42pcs |
|
Specimen holder size |
95*200mm |
|
Irradiation Source |
1 piece of 6500 W water-cooled xenon lamp with inner quartz and outer borosilicate filter |
|
Irradiance Range |
100~1200 W/㎡ |
|
Bandwidth Measurement |
280nm~800nm |
|
Chamber Temperature Range |
Ambient ~100℃±2°C |
|
Black Panel Temperature |
BPT 35 ~85℃±2°C |
|
Relative Humidity Range |
50~98% R.H±5% RH |
|
Water Spray cycle |
1～9999H59M, adjustable |
|
Controller |
programmable color display touch screen controller, PC Link, R-232 interface |
|
Radiometer |
Tolerance: ±5% |
|
Heating system |
Nichrome heater |
|
Cooling system |
Mechanical compression refrigeration system |
|
Refrigerating unit |
French TECUMSEH compressor |
|
Humidification system |
External isolation, stainless steel surface evaporation humidifier |
|
Air circulation |
Centrifugal wind fan |
|
Water supply system |
Automatic water supply; Water purification system |
|
Safety device |
Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; |
|
Interior material |
SUS304 stainless steel |
|
Exterior material |
Steel Plate with protective coating |
|
Thermal insulation |
Polyurethane foam |
|
Observation window |
Interior lighting , double-layer thermo stability silicone rubber sealing |
|
Power Supply |
AC380V 50HZ |
Accelerated Aging Chamber
 |
|

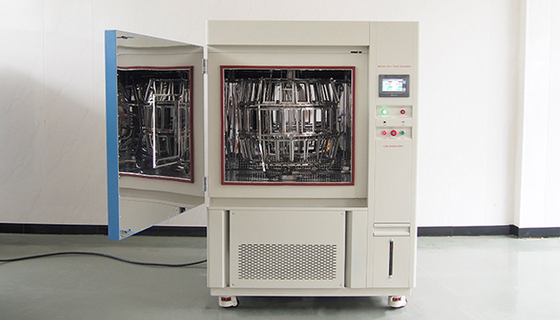

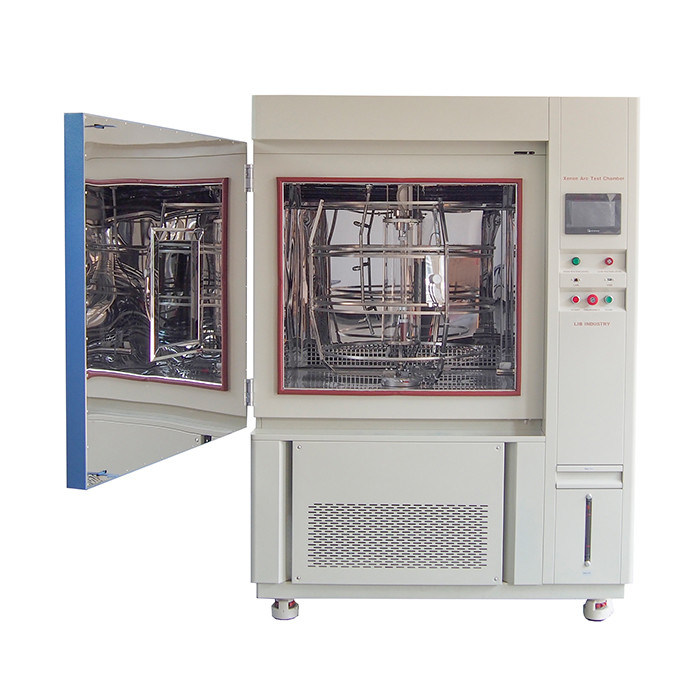

| 1. xenon accelerated aging chamber has a large observation window with bright lights to keep the box and the use of tempered glass, clear observation xenon test chamber condition at any time. |
2.Sample frame:Stainless steel,Sample fixing position adjustable, standard stamping forming template;3D sample rack can be customized
|
Main Feature
xenon weathering chamber
1. Ventilation system: Automatic controlled by temperature controller
2. Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.
3. Temperature sensor: PT100 platinum resistance thermocouple.
4. xenon aging chamber equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.
5. Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage protection, alarm and auto power offer protection.
