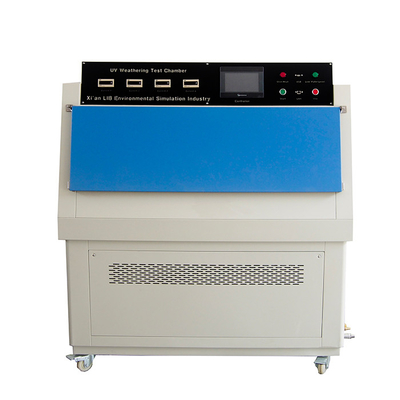

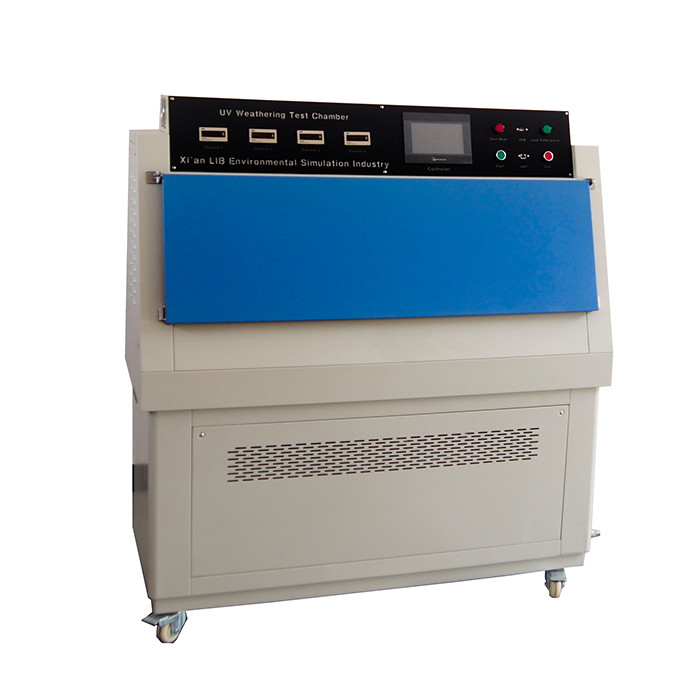

UVA 340 UV Weathering Test Chamber UV Lamp 260 litre
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS, |
| Model Number: | UV-SI-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-12 days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram,paypal |
| Supply Ability: | 140 sets / quarter |
|
Detail Information |
|||
| UV Lamp: | UVA 340,UVB313 | Temperature Range: | Ambient~90℃ ±2℃ |
|---|---|---|---|
| Black Panel Temperature: | BPT 30~80℃ | UV Wavelength: | 290 ~ 400nm |
| Water Cycle: | Water Spray Cycle System | Humidity Range: | ≥95％R.H ±2%R.H |
| High Light: | UVA 340 UV Weathering Test Chamber,260 Litre UV Weathering Test Chamber,UVA 340 uv weathering chamber |
||
Product Description
UVA 340 UV Weathering Chamber UV Lamp
Description
UV weathering chamber,The UV simulates the effect of sunlight with fluorescent ultraviolet (UV) lamps, while rain and dew are simulated by the condensation of humidity
Specification
| Name | UVA 340 UV Weathering Chamber UV Lamp | |
|
Model |
UV-260 |
UV-SI-260 |
|
Internal dimensions (mm) |
450*1170*500 |
450*1170*500 |
|
Overall dimensions (mm) |
680*1300*1500 |
680*1300*1500 |
|
Capacity of test specimens |
48 pieces Individual specimen size is 75mm * 150mm |
48 pieces Individual specimen size is 75mm *150mm |
|
Controller |
Programmable color display touch screen controller |
Programmable color display touch screen controller |
|
Temperature range |
Ambient~90℃ ±2℃ |
Ambient~90℃ ±2℃ |
|
Humidity range |
≥95％R.H ±2%R.H |
≥95％R.H ±2%R.H |
|
Black Panel Temperature |
BPT 30~80℃ |
BPT 30~80℃ |
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
Fluorescent UV lamps (8) - 40 W |
|
UV wavelength |
290 ~ 400nm |
290 ~ 400nm |
|
Irradiance Control |
N/A |
0.3 ~ 20 W/㎡(340 nm / 313 nm) |
|
Water Spray |
Spraying water |
Spraying water |
|
Distance of Specimen and lamp |
50mm |
50mm |
|
Nominal power |
5000W |
5500W |
|
Power Supply |
380V 50HZ |
380V 50HZ |
Design Details
 |
|

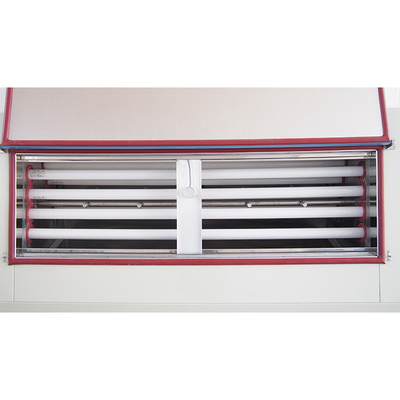

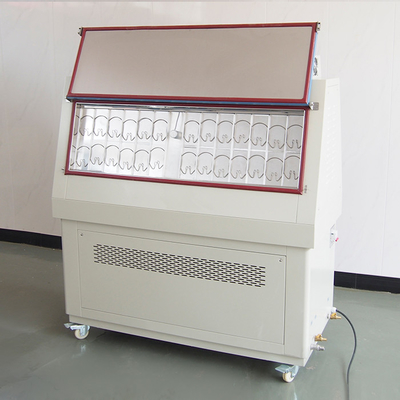

| Sample Shelf | 8 UV Lamp |
|
|
| Programmable controller | Automatic water inlet |
Characteristics
◆Made of SUS304 stainless steel. Easy setting operation. Ventilation measurement function.
◆Aging test chamber,Wing diffusion supply air circulation system, fresh air ventilation can be arbitrary adjustment.
◆UV Test Chamber,Internal specimen holder free dismantling,
