ASTM G154 ISO4892-1 UV Weathering Test Chamber In Paint Inks
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS,ISO-17025 |
| Model Number: | UV-SI-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 5-14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 410Sets |
|
Detail Information |
|||
| Name: | UV Weathering Test Chamber | Bandwidth: | 290~400mm |
|---|---|---|---|
| Irradiance Control: | 0.3~20 W/㎡ | Distance Of Specimen And Lamp: | 50mm |
| Maximum Noise: | 65 DBA | Application: | Paint Inks |
| High Light: | ISO4892-1 UV Weathering Test Chamber,ASTM G154 UV Weathering Test Chamber,UV Weathering Test Chamber In Paint |
||
Product Description

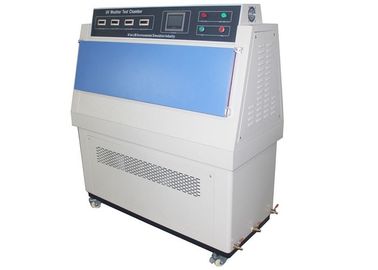

ASTM G154 ISO4892-1 UV Weathering Test Chamber In Paint Inks
This UV Weathering Test Chamber is mainly used for the UV aging resistance of light materials such as leather, plastic, rubber and cloth under UV radiation.
Technical Specification
|
Name |
ASTM G154 ISO4892-1 UV Weathering Test Chamber In Paint Inks |
|
|
Model |
UV-260 |
UV-SI-260 |
|
Internal Dimension (mm) |
452*1170*500 |
450*1170*500 |
|
Overall Dimension (mm) |
680*1300*1500 |
680*1300*1500 |
|
Specimen Holder Size(mm) |
75*150 |
|
|
Controller |
Programmable color LCD touch screen controller |
|
|
Temperature Range |
Ambient ～ 90 ℃ ±2℃ |
|
|
Black Panel Temperature (BPT) |
35 ～ 80 ℃ |
|
|
Bandwidth |
290 ~ 400nm |
|
|
Irradiance Control |
N/A |
0.3~20 W/㎡(340nm/313nm) |
|
Standard |
ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664 |
|
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
|
Distance of Specimen and lamp |
50mm |
|
|
Power Supply |
380V 50Hz |
|
|
Maximum Noise |
65 dBA |
|
Details of UV Weathering Resistance Test Chamber
 |
|
|
UV lamp
|
Black Panel Thermometer |
|
|
|
Sample Holder
|
Spray nozzle |
Features of UV Weathering Resistance Test Chamber
● Frequency conversion control of wind speed. Accelerated Weathering Tester
● Adopts international brand of imported parts for cooling system to improve operation reliability.
● Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
● Control System: High precision temperature control instrument,
● Programmable time controller (set test time, illumination time, condensation time, spraying time )
● Electronic Components: Adopt product of national joint venture company
● UV Resistance equpiment main configuration: Temperature controller , time controller, illumination time accumulator, inflow magnetic valve, UV lamps.
Test Standard of UV Weathering Resistance Test Chamber
●ISO 4892-3:2016 Plastics — Methods of exposure to laboratory light sources — Part 3: Fluorescent UV lamps
●EN 927-6 Paints and varnishes – Coating materials and coating systems for exterior wood – Part 6: Exposure of wood coatings to artificial weathering using fluorescent UV lamps and water
●ASTM G154 – Standard Practice for Operating Fluorescent Ultraviolet (UV) Lamp Apparatus for Exposure of Nonmetallic Materials
Weathering aging test machine is widely used in paintings, plactics, textile industry.
