ISO 9227 Salt Spray Corrosion Test Chamber Glass Fiber Environmental Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB INDUSTRY |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | S-250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Internal Dimensions: | 640*1000*500 (mm) | Temperature: | Ambient ～60℃ |
|---|---|---|---|
| Usage: | Laboratory, University, Research Center | Warranty: | 36 Months |
| Product Name: | Salt Spray Corrosion Test Chamber | Standard: | ASTM B-117; ISO9227 |
| High Light: | ISO 9227 Salt Spray Corrosion Test Chamber,ISO 9227 Environmental Chamber,Glass Fiber Environmental Chamber |
||
Product Description

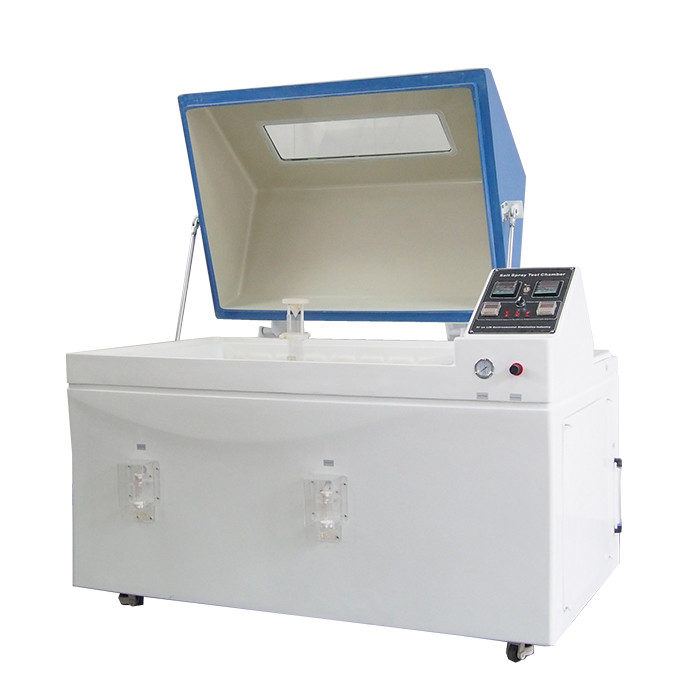

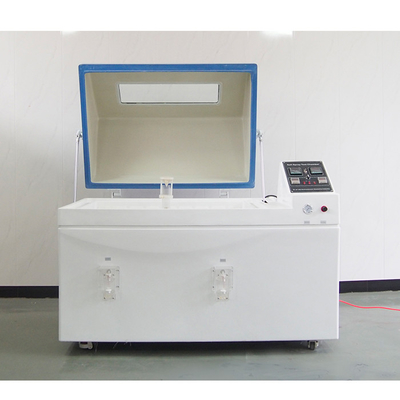

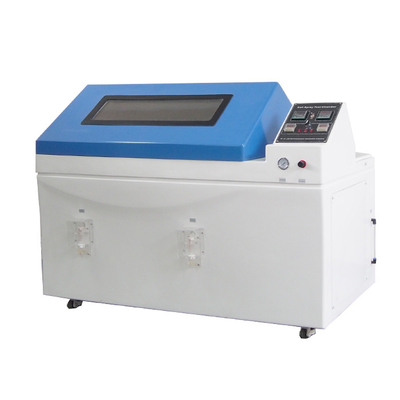

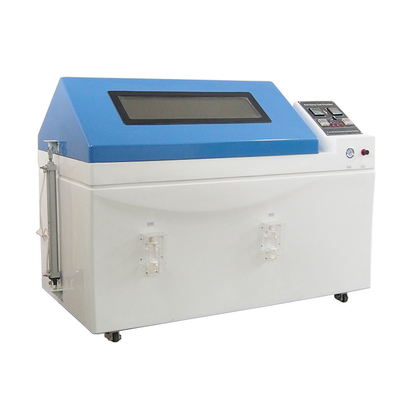

ISO 9227 Glass Fiber Corrosion Environmental Chamber
Description
Corrosion Environmental Chamber,Artificial simulation of salt spray environment test is the use of a certain volume of the test equipment, in its volume space with artificial methods, resulting in salt spray environment to assess the corrosion resistance of the product salt spray corrosion performance and quality.
| Name |
ISO 9227 Glass Fiber Corrosion Environmental Chamber |
| Model | S-250 |
| Internal dimensions | 640*1000*500(mm) |
| Overall dimensions | 810*1800*1180(mm) |
| Temperature range | Ambient ～60℃ |
| Humidity range | 95% ~ 98% RH |
| Temperature fluctuations | +/- 0.5 ℃ |
| Temperature deviation: | +/- 2.0 ℃ |
| Test time | 1~999 hours, settable |
| Spray deposition | 1～2ml / 80cm2 · h |
| Spray type | Continuous / Periodic |
| Temperature Controller | LED display, P.I.D+S.S.R. microcomputer integrated controller |
| Temperature sensor | PT100Ω / MV A-class |
| Salt fog collected | Fog collector and fog measure cylinder |
| salt water filtration | Salt water filter near the suction tubes( Avoid the nozzle blockage) |
| Salt water preheating | Saturated air barrel |
| Spraying system | Atomizer tower and Spray nozzles (Fog is more fine and uniform distribution) |
| Interior /Exterior material | Glass fiber reinforced plastics |
| Standard configuration | Sample bracket / sample holder / spray nozzle / Fog collectors / measure cylinder |
| safety device | over-temperature protection, water shortage protection, over current protection, earth leakage protection |
| Sealing | Hydrostatic hood seal |
| Standard | ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 |
| Power Supply | 220V 50HZ |
 |
|
|
Salt Spray Device |
Material |
|
|
| Test Area | Observation Window |
Peculiarity
1. Salt spray test chamber the whole glass fiber reinforcing material, the interior of the use of advanced three-dimensional reinforcement technology, strong structure, never deformed
2. Aalt spray testing machine,Precision glass nozzle, use for 4000 hours to ensure no crystal blockage.
3. With double over-temperature protection, water level is insufficient warning to ensure safe use.
4. Imported temperature controller, digital display, PID control, high stability platinum temperature probe, error 0.3
5. The salt spray testing machine test room adopts the steam direct heating method, which raises the temperature quickly and shortens the standby time.
6. The spray tower is equipped with a conical disperser, with the functions of guiding fog, adjusting the amount of fog, and uniform fog fall.
7. The pressure drum of the salt spray test chamber adopts Henry's law, humidifies it at heat, and provides the humidity required for the laboratory.
|
|
