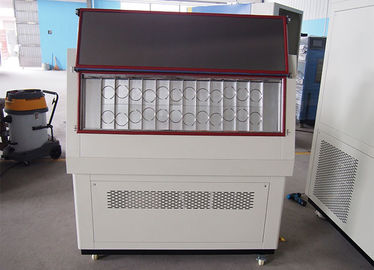

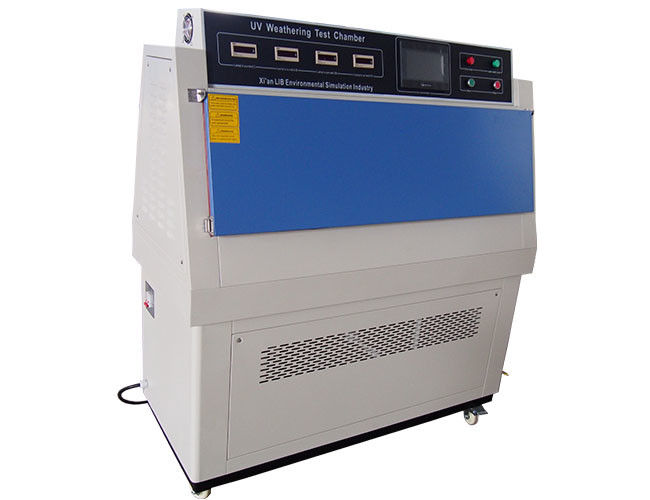

Materials Coatings UV Weathering Test Chamber Accelerated Weathering Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | UV-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD2680 ~ USD8490 / SET |
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-12 days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Internal Dimensions: | 450*1170*500 | Temperature Range: | Ambient~90℃ ±2℃ |
|---|---|---|---|
| Black Panel Temperature: | BPT 30~80℃ | UV Wavelength: | 290 ~ 400nm |
| Nominal Power: | 5000W | Humidity Range: | ≥95%RH |
| Highlight: | uv weather resistance test chamber,accelerated uv testing equipment |
||
Product Description
UV Aging Test Chamber,Accelerated Weathering Tester for Materials Coatings
● A condensing function is used to simulate the effects of outdoor moisture;
● High measurement reproducibility;
● Internally preset multiple mainstream industry standards;
● Small footprint / large sample capacity.
UV Aging Test Chamber,Accelerated Weathering Tester for Materials Coatings takes only a few days or weeks to reproduce laboratory damage such as working conditions in the environment that takes several months or even years to occur, or aging of parts and components, etc. (12 hours) Equivalent to 6 months of normal outdoor lighting) including fading, color change, tarnishing, chalking, cracking, cracking, wrinkling, blistering, embrittlement, reduced strength, oxidation. Test results can be used to select new materials, improve existing materials, or evaluate changes in material formulations
| Name | UV Aging Test Chamber,Accelerated Weathering Tester for Materials Coatings |
|
Model |
UV-260 |
|
Internal dimensions (mm) |
450*1170*500 |
|
Overall dimensions (mm) |
680*1300*1500 |
|
Capacity of test specimens |
48 pieces Individual specimen size is 75mm * 150mm |
|
Controller |
Programmable color display touch screen controller |
|
Temperature range |
Ambient~90℃ ±2℃ |
|
Humidity range |
≥95％R.H ±2%R.H |
|
Black Panel Temperature |
BPT 30~80℃ |
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
|
UV wavelength |
290 ~ 400nm |
|
Irradiance Control |
N/A |
|
Water Spray |
Spraying water |
|
Distance of Specimen and lamp |
50mm |
|
Nominal power |
5000W |
|
Power Supply |
380V 50HZ |
ASTM D4392,ISO4892-3, ASTM G154 ,ISO17025,etc.
It simulates the damage caused by sunlight, rain and dew. By exposing the material to be tested to the control of high temperature, the light and water are exchanged. In the variable cycle, the material is tested. It uses ultraviolet light tubes to simulate the radiation of sunlight, and condensate water and water spray to simulate dew and rain.
●Fluorescent UV lamps (8) - 40 W
●Black Panel Temperature (BPT) at controlled, BPT 30~70ºC
●Temperature from Ambient to 90ºC
●Spraying water, automatic water supply
●Water reservoir 50 Liter
●Can hold 48 pieces of specimens
●Programmable color display touch screen controller
●Safety protection system
●Easy to mount samples on the holders
●CE and RoHS compliance
Test Area
Standard samples can be placed, or 3D racks can be customized to meet different test needs.
QUV lamp
1.UV chamber adopt QUV lamp made in USA.
2. UVA-340,UVB-313,UVB-351 3. UV lamp power is 40W. 4. Chamber install 8 pcs of QUV lamp.
1. The lamp is more stable 2. Spectral power distribution (SPD) does not change with lamp aging, even when used for up to 5000 hours 3. Get more repeatable test results 4. Reducing lamp replacement 5. Reducing operating costs 6. Easy to change, easy to purchase from local.

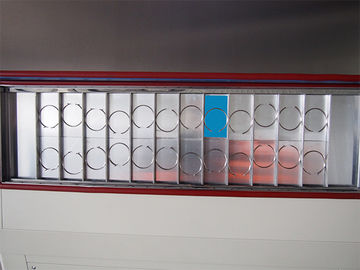

Test holder
1.Flat Specimen Holders, aluminum panels with rings.
Each specimen size is 75mm * 150mm, can hold 48 pieces of specimens
2.Special Specimen Holder
Customize special holder according to different specimens.
Control Panel
Programmable color display touch screen controller
Measure and display temperature, humidity, water spraying,
black panel temperature and irradiance (UV-SI-260).
Show status and working time of 8 UV lamps
●Packed with export standard wooden case.
●Strong packages can be used for sea, air, railway, truck transport and multimodal transport.
●Quick ship, some models are in stock, ship in 1-14days.
●Provide door to door service for customers.
Q :How to provide after sales service?
A:If customers need our engineers on site service, the company only need pay the ticket accommodation to our engineers, service is for free.
If Products still can't use after our engineers repair, we will produce a new test chamber (same as the old one) to our customers with no charge.
You can contact our local service center in overseas market to get service and product.
Q :Can we come to your factory to study and train?
A:Welcome to our factory for study and training, we provide this service free of charge.
Q :Can you send engineers to our company?
A:Yes, sure. We will communicate in advance to facilitate the bringing of tools and components
Q :Can I install and debug calibration on site?
A :Yes, we can send technicians and engineers to the customer site for installation, commissioning and calibration.
Q :What is the packaging?
A :Standard export wooden box packaging, solid and firm.
Q :How do you calibrate the equipment?
A :We have our own calibration and third-party calibration such as ISO17025
Q: Is there a door to door service?
A :Yes, there is door to door service. We will arrange a one-stop service.
Q :What are the payment methods?
A Payment methods are T/T, Paypal, L/C, VISA
