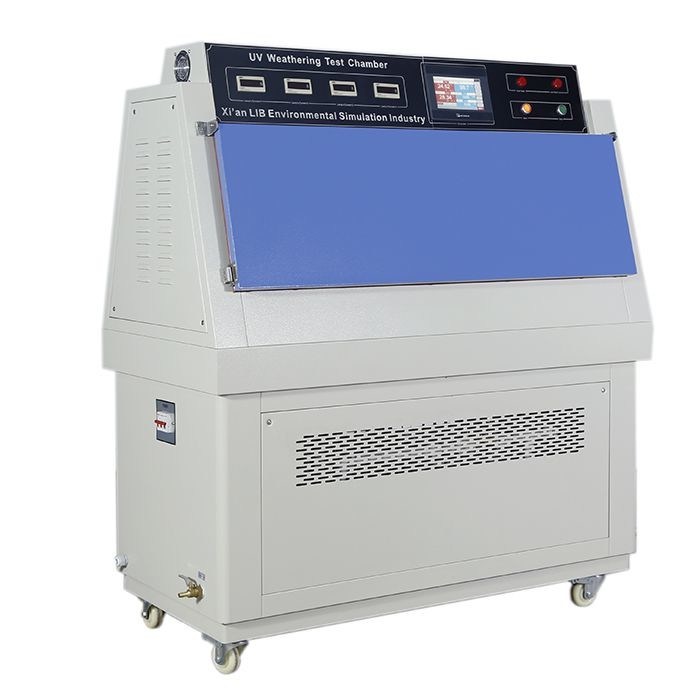

Aging 0.3~20 W/M2 UV Weathering Test Chamber Accelerated Weathering Chamber
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,ROHS,ISO-17025 |
| Model Number: | UV-SI-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Cases Standard Export Package |
| Delivery Time: | 5-14 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 410Sets |
|
Detail Information |
|||
| Bandwidth: | 290~400mm | Irradiance Control: | 0.3~20 W/㎡ |
|---|---|---|---|
| Distance Of Specimen And Lamp: | 50mm | Maximum Noise: | 65 DBA |
| Irradiation Source: | Fluorescent UV Lamps (8) - 40 W | Name: | UV Aging Weathering Apparatus |
| High Light: | 20W/M2 UV Weathering Test Chamber,0.3W/M2 UV Weathering Test Chamber,0.3W/M2 Accelerated Weathering Chamber |
||
Product Description
Description of UV Weathering Resistance Test Chamber
Aging 0.3~20 W/㎡ UV Weathering Resistance Test Chamber meet GB/T14522-93 the method that mechanical products be accelerated tested in a artificial way with plastic, paint, rubber meterial, GB/T2424.14-1995 basic environmental testing procedures of electrical and electronic products, American material test institute ASTMG53-84 test method that non-metallic material exposed to fluorescent UV condensation
Technical Specification
|
Name |
Aging 0.3~20 W/㎡ UV Weathering Resistance Test Chamber |
|
|
Model |
UV-260 |
UV-SI-260 |
|
Internal Dimension (mm) |
452*1170*500 |
450*1170*500 |
|
Overall Dimension (mm) |
680*1300*1500 |
680*1300*1500 |
|
Specimen Holder Size(mm) |
75*150 |
|
|
Controller |
Programmable color LCD touch screen controller |
|
|
Temperature Range |
Ambient ～ 90 ℃ ±2℃ |
|
|
Black Panel Temperature (BPT) |
35 ～ 80 ℃ |
|
|
Bandwidth |
290 ~ 400nm |
|
|
Irradiance Control |
N/A |
0.3~20 W/㎡(340nm/313nm) |
|
Standard |
ISO4892-1,ISO4892-3, ASTM G154, ASTM D4329, ASTM D458, ASTM C125, ASTM C1442, ASTM C1519, ASTM C793, ASTM D1148, ASTM D3424, ASTM D3451, ASTM D410, ASTM D481, ASTM D657, ASTM D6662, ASTM D750, ASTM D904, GM 9125P, ISO 29664 |
|
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
|
Distance of Specimen and lamp |
50mm |
|
|
Power Supply |
380V 50Hz |
|
|
Maximum Noise |
65 dBA |
|
Details of UV Weathering Resistance Test Chamber
 |
|
|
UV lamp
|
Black Panel Thermometer |
|
|
|
Sample Holder
|
Spray nozzle |
Features of UV Weathering Resistance Test Chamber
● Frequency conversion control of wind speed. Accelerated Weathering Tester
● Adopts international brand of imported parts for cooling system to improve operation reliability.
● Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
● Control System: High precision temperature control instrument,
● Programmable time controller (set test time, illumination time, condensation time, spraying time )
● Electronic Components: Adopt product of national joint venture company
● UV Resistance equpiment main configuration: Temperature controller , time controller, illumination time accumulator, inflow magnetic valve, UV lamps.
Test Standard of UV Weathering Resistance Test Chamber
●ISO 4892-3:2016 Plastics — Methods of exposure to laboratory light sources — Part 3: Fluorescent UV lamps
●EN 927-6 Paints and varnishes – Coating materials and coating systems for exterior wood – Part 6: Exposure of wood coatings to artificial weathering using fluorescent UV lamps and water
●ASTM G154 – Standard Practice for Operating Fluorescent Ultraviolet (UV) Lamp Apparatus for Exposure of Nonmetallic Materials
Weathering aging test machine is widely used in paintings, plactics, textile industry.
