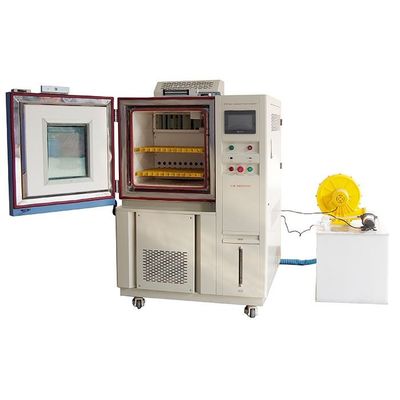

CE 25PPM SO2 H2S CO2 Noxious Gas Test Chambers Gas Test Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | SO-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | Noxious Gas Test Equipment | Volume: | 100L, 250L, 500L, 800L, 1000L, And More |
|---|---|---|---|
| Temperature: | 0℃ To +80℃ | Humidity: | 30% To 98% RH |
| Ozone Concentration: | 25+/-5 PPM | Internal Dimensions: | 1000*1000*1000(mm) |
| Highlight: | SO2 H2S CO2 Noxious Gas Test Chambers,25PPM SO2 Gas Test Equipment,CE H2S CO2 Gas Test Equipment |
||
Product Description
Description of Noxious Gas Test Equipment
CE 25PPM SO2 noxious gas test equipment suitable for large electrical and electronic and other products, spare parts and materials in a variety of toxic (harm) gas airtight no light exposure test products containing toxic gas concentration (harm) of air environment, simulation in toxic (harm) gas under the condition of bad environment quality of products, parts and materials for stringent requirements and the analysis of the change.
CE 25PPM SO2 aging test chamber using a variety of gases, under a certain temperature and relative humidity environment to accelerate corrosion of materials or products, reproduce the damage degree of materials or products in a certain time range.
Standards of Noxious Gas Test Equipment
1.IEC 68-2-60 Test Method: Corrosion Test of Artificial Low Concentration Contaminated Gas,
2.EN 60068: Liquid mixed gases corrosion test
3.DIN 50018:sulfur dioxide test in saturated environment
Technical Specification of Noxious Gas Test Equipment
| Name | CE 25PPM SO2 Noxious Gas Test Equipment | |
| Model | SO-800 | SO-1000 |
| Internal dimensions (mm) | 800*1000*1000 | 1000*1000*1000 |
| Overall dimensions (mm) | 1470*1520*2315 | 1670*1520*2315 |
| Temperature range | 15 ºC ~+80 ºC | |
| Humidity range | 30％~98% R.H | |
| Temperature fluctuation | ±0.5℃ | |
| SO2 concentration | 25 ±5 ppm | |
| Controller | Programmable color display touch screen controller | |
| PC Link with software, R-232 interface | ||
| Interior material | Glass fiber reinforced plastics | |
| Exterior material | Steel Plate with protective coating | |
| Standard | IEC 60068-2-42 | |
| Power & voltage | AC 380V 50HZ | |
Detail of Noxious Gas Test Equipment
 |
|
| Test Area | Gas Cycle and Sensor |
|
|
| SO2 Exhaust Device | Automatic Inlet and Exhaust System |
Gas Concentration
SO2:0.1～200ppm (10～200000ppb)
CO2:0.1～20ppm (100～20000ppb)
NO2:0.1～20ppm (100～20000ppb)
H2S:0.01～200ppm (10～200000ppb)
CL2:0.01～20ppm (10～20000ppb)
Features of Noxious Gas Test Equipment
1. Noxious gas test equipment,closed circulation laboratory is easier to save gas
2. After the experiment, SO2 gas will enter the toxic gas treatment box through the removal of Qigong energy, and then be discharged into the nature.
3.CO2 noxious gas test mahcine adopts international advanced technology, which can completely handle the gas after the test to the national standard, and discharge it into the natural environment, which is environmentally friendly and safe
4.Safety: simple operation, easy to use, safe, there will be no harmful gas residue, to ensure the personal safety of staff, while protecting the natural environment
