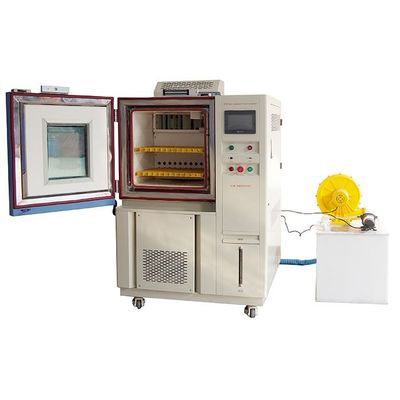

So2 H2S Battery Gas Corrosion Test Chamber DIN EN 60068-2-60 Standard
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | SO-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | Noxious Gas Test Equipment | Application: | Battery |
|---|---|---|---|
| Humidity: | 30% To 98% RH | Ozone Concentration: | 25+/-5 PPM |
| Internal Dimensions: | 1000*1000*1000(mm) | Temperature: | 0℃ To +80℃ |
| High Light: | So2 H2S Corrosion Test Chamber,60068-2-60 Corrosion Test Chamber,DIN gas test chamber |
||
Product Description
Description
DIN EN 60068-2-60 So2 H2S Battery Gas Corrosion test Chamber can carry out the corrosion test of H2S, SO2, NO2, Cl2 and other mixed gases or single gas such as ozone resistance test, accelerate the corrosion of batteries or products, and assess the corrosion resistance of materials or products
Technical Specification
| Name | DIN EN 60068-2-60 So2 H2S Battery Gas Corrosion test Chamber | |
| Model | SO-800 | SO-1000 |
| Internal dimensions (mm) | 800*1000*1000 | 1000*1000*1000 |
| Overall dimensions (mm) | 1470*1520*2315 | 1670*1520*2315 |
| Temperature range | 15 ºC ~+80 ºC | |
| Humidity range | 30％~98% R.H | |
| Temperature fluctuation | ±0.5℃ | |
| SO2 concentration | 25 ±5 ppm | |
| Controller | Programmable color display touch screen controller | |
| PC Link with software, R-232 interface | ||
| Interior material | Glass fiber reinforced plastics | |
| Exterior material | Steel Plate with protective coating | |
| Standard | IEC 60068-2-42 | |
| Power & voltage | AC 380V 50HZ | |
 |
Corrosive gas concentration |
Corrosion Test with Flow of Mixed Gas
1. Purpose: To simulate the corrosion of materials and products caused by corrosive atmosphere;
2. Samples: metal surfaces, electrical connections, parts, etc.;
3. Corrosive gas: SO2H2SCl2NO2;
4. H2S: Corrosion to many metals, especially silver and copper;
5. SO2: cause severe corrosion to nickel, steel, and zinc;
6. NO2: as an oxidant;
7. Cl2: When combined with H2S, it has a strong synergistic effect and can easily penetrate and be absorbed by the material.
Application
DIN EN 60068-2-60 So2 H2S Battery Gas Corrosion test Chamber can meet the requirements of automatic air intake, automatic air exchange, automatic automatic exhaust, no manual opening/closing of valves frequently, and temperature and humidity display.
It is used to test the protective layer of electrical and electronic products, electroplating products and various gold, silver and copper products. It is used to assess the ability of materials and their protective layers to resist corrosive gases, as well as the process quality comparison of similar protective layers
DIN EN 60068-2-60 So2 H2S Battery Gas Corrosion test Chamber can meet single-phase test and multiple programming tests; tests include hydrogen sulfide, sulfur dioxide, chlorine, nitrogen dioxide, low temperature test, and drying
