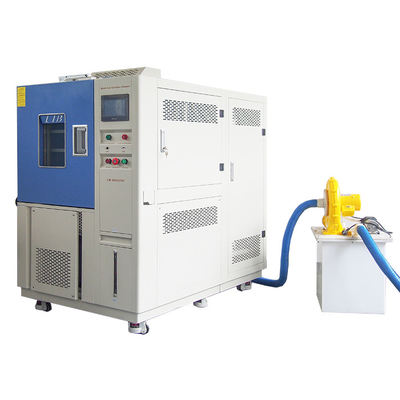

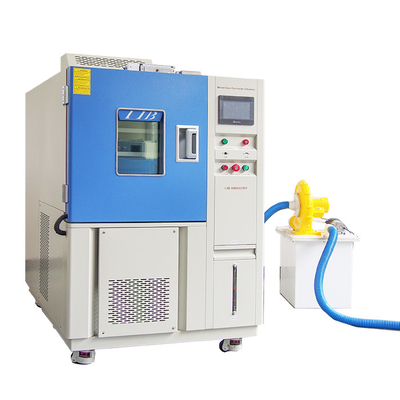

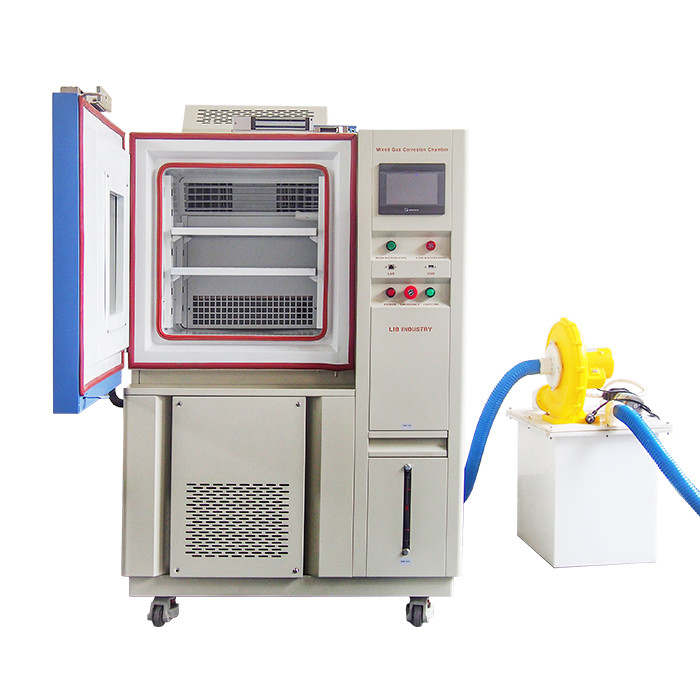

250L H2S CO2 SO2 Noxious Gas Test Chamber Programmable For Aging Test
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS,ISO17025 |
| Model Number: | SO-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 360 sets / quarter |
|
Detail Information |
|||
| Name: | SO2 Corrosion Chamber | Volume: | 100L, 250L, 500L, 800L, 1000L, And More |
|---|---|---|---|
| Temperature: | 0℃ To +80℃ | Humidity: | 30% To 98% RH |
| Ozone Concentration: | 25+/-5 PPM | Internal Dimensions: | 1000*1000*1000(mm) |
| High Light: | 250L Aging Test Chamber,SO2 Noxious Gas Test Chamber,Programmable Noxious Gas Test Chamber |
||
Product Description
Description
The SO2 Corrosion Chambercan damage materials, components and structures due to temperature, relative humidity and harmful gas corrosion.
The toxic gas chamber can be used for single gas testing and mixed gas testing. Test methods comply with IEC 60068-2-42, IEC60068-2-60 and other standards
Technical Specification
| Name | Aging Test Chamber SO2 H2S CO2 SO2 Corrosion Chamber | |
| Model | SO-800 | SO-1000 |
| Internal dimensions (mm) | 800*1000*1000 | 1000*1000*1000 |
| Overall dimensions (mm) | 1470*1520*2315 | 1670*1520*2315 |
| Temperature range | 15 ºC ~+80 ºC | |
| Humidity range | 30％~98% R.H | |
| Temperature fluctuation | ±0.5℃ | |
| SO2 concentration | 25 ±5 ppm | |
| Controller | Programmable color display touch screen controller | |
| PC Link with software, R-232 interface | ||
| Interior material | Glass fiber reinforced plastics | |
| Exterior material | Steel Plate with protective coating | |
| Standard | IEC 60068-2-42 | |
| Power & voltage | AC 380V 50HZ | |
Details
 |
|

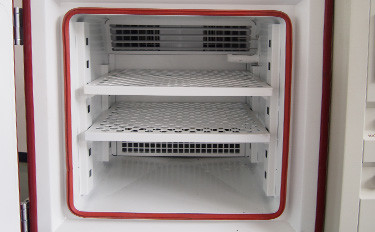

| Test Area | Gas Cycle and Sensor |
|
|

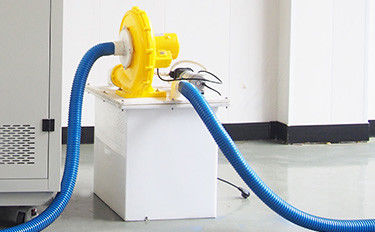

| SO2 Exhaust Device | Programmable Controller |
Feature
●CO2 gas chamber is Floor Type
●Automatic measurement and control of gases
●Temperature control and display unit
●Humidity Control and Display Unit
●Test SO2 H2S CO2 HCL single gas and mixed gas
●Programmable Color LCD Touch Screen Controller
●SO2 gas chamber equip USB and Ethernet
●An electromagnetic lock prevents the door from opening under working conditions
●Air-cooled refrigeration system
●Casters, shelves and cable ports are standard
●safety protection system
|
|
