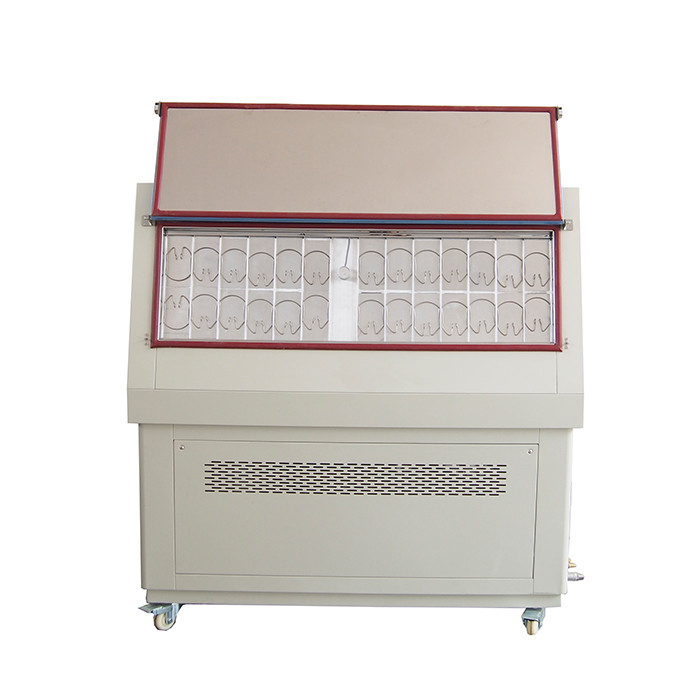

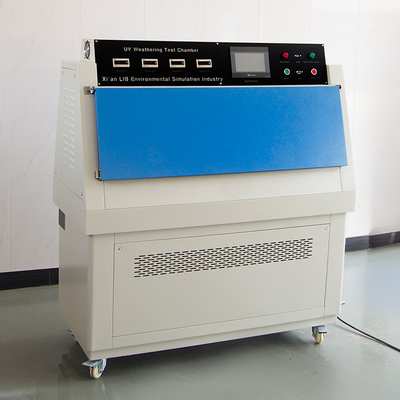

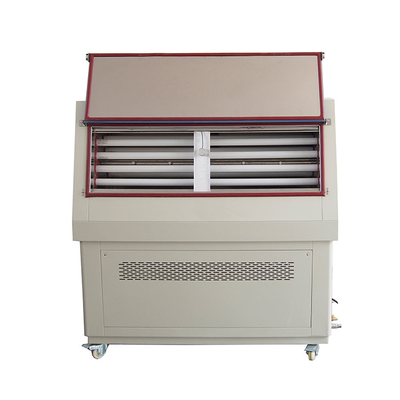

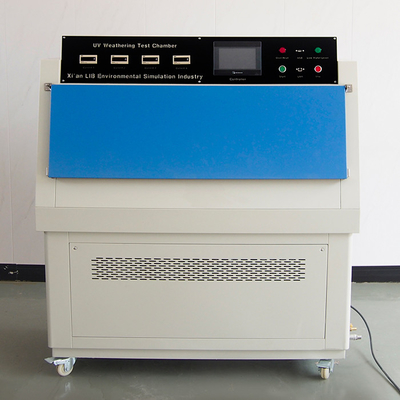

260l UVB313 UV Light Test Chamber Accelerated Weathering Tests
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE,RoHS, |
| Model Number: | UV-SI-260 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-12 days |
| Payment Terms: | T/T, D/P, D/A, L/C, Western Union, MoneyGram,paypal |
| Supply Ability: | 140 sets / quarter |
|
Detail Information |
|||
| UV Lamp: | UVA 340,UVB313 | Temperature Range: | Ambient~90℃ ±2℃ |
|---|---|---|---|
| Black Panel Temperature: | BPT 30~80℃ | UV Wavelength: | 290 ~ 400nm |
| Water Cycle: | Water Spray Cycle System | Humidity Range: | ≥95％R.H ±2%R.H |
| High Light: | UVB313 UV Light Test Chamber,260l UV Light Test Chamber,260l accelerated weathering chamber |
||
Product Description
UV Light Test Chamber UV light test chamber
Description
UV test chamber (also called uv aging test chamber or uv accelerated weathering tester) can simulate environmental conditions such as ultraviolet, rain, high temperature, high humidity, condensation and darkness in natural climate. By recreating these conditions, they are combined into one cycle, and it is automatically executed to complete multiple cycles.
The UV light test chamber is suitable for accelerated weathering tests of paint, ink, chemical, rubber, paint, adhesive, etc.
Specification
| Name | UV Light Test Chamber | |
|
Model |
UV-260 |
UV-SI-260 |
|
Internal dimensions (mm) |
450*1170*500 |
450*1170*500 |
|
Overall dimensions (mm) |
680*1300*1500 |
680*1300*1500 |
|
Capacity of test specimens |
48 pieces Individual specimen size is 75mm * 150mm |
48 pieces Individual specimen size is 75mm *150mm |
|
Controller |
Programmable color display touch screen controller |
Programmable color display touch screen controller |
|
Temperature range |
Ambient~90℃ ±2℃ |
Ambient~90℃ ±2℃ |
|
Humidity range |
≥95％R.H ±2%R.H |
≥95％R.H ±2%R.H |
|
Black Panel Temperature |
BPT 30~80℃ |
BPT 30~80℃ |
|
Irradiation Source |
Fluorescent UV lamps (8) - 40 W |
Fluorescent UV lamps (8) - 40 W |
|
UV wavelength |
290 ~ 400nm |
290 ~ 400nm |
|
Irradiance Control |
N/A |
0.3 ~ 20 W/㎡(340 nm / 313 nm) |
|
Water Spray |
Spraying water |
Spraying water |
|
Distance of Specimen and lamp |
50mm |
50mm |
|
Nominal power |
5000W |
5500W |
|
Power Supply |
380V 50HZ |
380V 50HZ |
Design Details
 |
|
| Sample Shelf | 8 UV Lamp |
|
|
| Programmable controller | Automatic water inlet |
Features
UV weathering tester
✔ Sample holder and disassembly, and can be customized according to the sample
✔ Illumination and condensation can be independently controlled and alternate cycle control.
✔ The independent control time for illumination and condensation and the time for alternate cycle control can be set arbitrarily within 1000 hours.
