Controlled Environmental Conditioning Chamber 20%-98%RH
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | AC-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Conditioning Environmental Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Controller: | PLC,PC Link, R-232 Interface,USB,APP | Humidity Range: | 10% - 98% RH |
| Temperature Range: | -20℃ ～+150 ℃ | Exterior Material: | A3 Steel Plate |
| High Light: | Controlled Environmental Conditioning Chamber,Environmental Conditioning Chamber Supplier,98%RH Environmental Conditioning Chamber |
||
Product Description

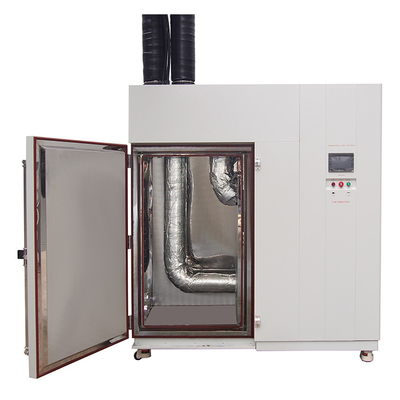

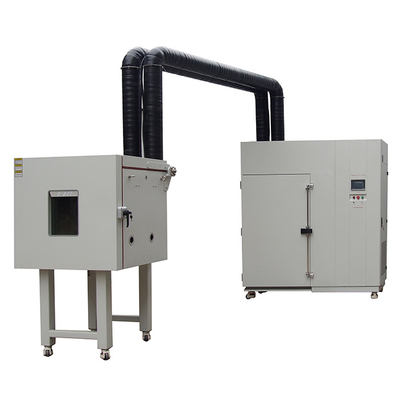

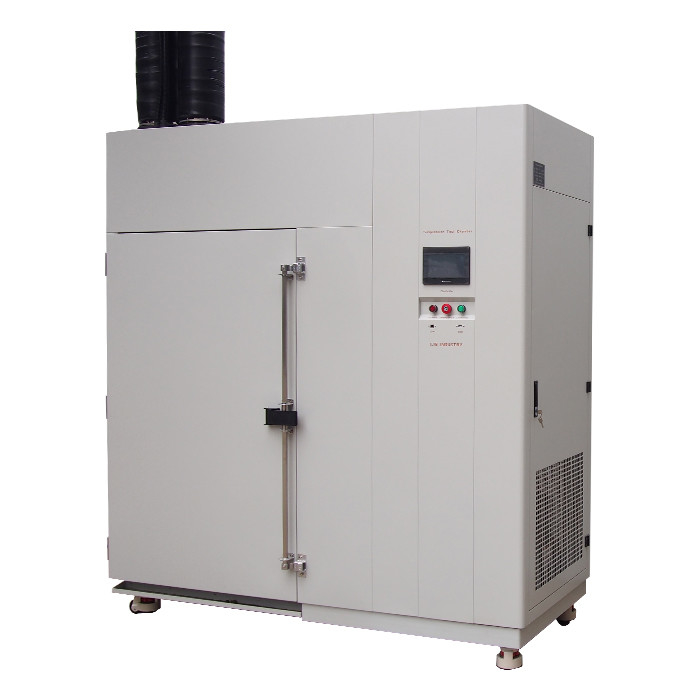

LIB AC225 Conditioning Environmental Chamber
Description
Conditioning Environmental Chamber is used to simulate the actual use of air conditioning environment and climate conditions, it is a single cold air conditioning system, can be connected to the test area, meet the temperature and humidity test requirements.
Temperature range: -70°C-150°C range
-40℃-150℃ range
-20℃-150℃ range
Main Technical Parameter
| Name | Conditioning Environmental Chamber | ||||
| Model | AC-100 | ||||
| Temperature range | -20℃ ～+150 ℃ | ||||
| Low type | A: -40℃ B:-70℃ C -86℃ | ||||
| Huimidity Range | 20%-98%RH | ||||
| Temperature deviation | ± 2.0 ℃ | ||||
| Heating rate | 3 ℃ / min | ||||
| Cooling rate | 1 ℃ / min | ||||
| Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB | ||||
| Refrigerant | R404A, R23 | ||||
| Exterior material | Steel Plate with protective coating | ||||
| Interior material | SUS304 stainless steel | ||||
| Timing Function | 0.1~999.9 (S,M,H) settable | ||||
 |
|
|
|
Advantage
1. The air conditioning unit can be placed in other areas without occupying space
2. Connection diversity, test area can be connected according to the test
3. Air Conditioning Chamber,Fully functional, temperature and humidity test requirements
4. Pipe diameter can be customized
5. Conditioning unit chamber,Environmentally friendly refrigerants
