85℃ 1 ℃ / Min Benchtop Temperature Chambers Programmable LCD touch screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | 85℃ 1 ℃ / Min Benchtop Temperature Chambers | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | Programmable Benchtop Temperature Chambers,Touch Screen Benchtop Temperature Chambers,LCD Climatic Test Chamber |
||
Product Description
Benchtop Temperature Chambers used to simulate the impact of temperature and humidity changes in the natural environment on the object, due to the wide application of electronic equipment in various occasions, in order to better design to meet the requirements of the relevant outdoor environment standards, high and low temperature humidity test has become an indispensable test project.
Parameters
| Name | 85℃ 1 ℃ / min Benchtop Temperature Chambers | |
| Model | TH-50 | TH-80 |
| Internal dimension (mm) | 320*350*450 | 400*400*500 |
| Overall dimension (mm) | 800*1050*950 | 900×1100×1000 |
| Temperature range | -20℃ ~+150 ℃ | |
| Low type | Ⅰ: -40℃ Ⅱ: -70℃ Ⅲ: -86℃ | |
| Temperature fluctuations | ± 0.5 ℃ | |
| Humidity Range | 10%/20%~95% | |
| Temperature deviation | ± 2.0 ℃ | |
| Heating rate | 3 ℃ / min | |
| Cooling rate | 1 ℃ / min | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
| Temperature Resolution | ± 0.001 ℃ | |
| Exterior Material | Steel Plate with A protective coating | |
| Interior Material | SUS304 stainless steel | |
| Power Supply | AC220V 50HZ | |
| Environmental conditional | 5℃~+40 ℃ ≤85% RH | |
Details
 |

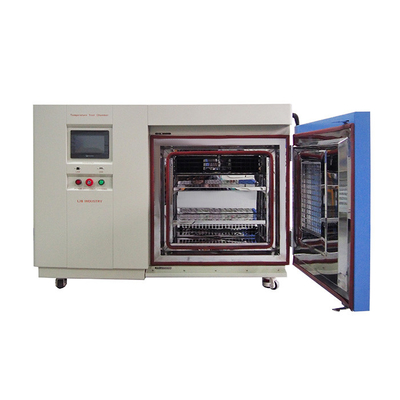

Special Design Temperature chamber,The cable holes and doors are designed on the right for easy connection to other devices and door |
|
|
|
| Controller | Link and USB | Test Hole |
Standard Configuration
1. Benchtop chamber,With RS-232/RS-485/Ethernet interface/USB interface, it can provide control programs on the PC side
2. PT100 sensor or electromagnetic sensor
3. Small temperature test chamber also uses hydropower separation system, which is safer
4. The double layer of the box door is insulated from the air tightness and pressing, which can effectively isolate the internal temperature leakage.
