130°C Programmable Humidity Test Chamber Artificial Climate Chamber 380V
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Humidity Artificial Climate Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Controller: | PLC,PC Link, R-232 Interface,USB,APP | Humidity Range: | 10% - 98% RH |
| Temperature Range: | -20℃ ～+150 ℃ | Exterior Material: | A3 Steel Plate |
| High Light: | Humidity Artificial Climate Chamber,Artificial Climate Chamber 380V,Programmable Humidity Test Chamber |
||
Product Description

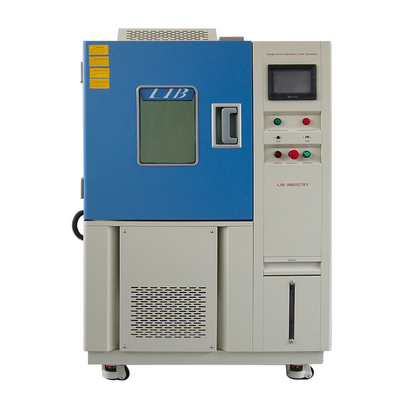

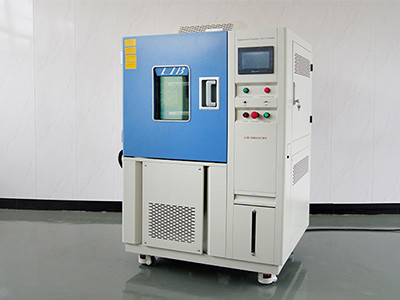

130°C Humidity Artificial Climate Chamber
Description
130°C Humidity Artificial Climate Chamber,It is also known as combined altitude, temperature and humidity chamber which is primarily used in R&D and testing of aerospace components. Customers can select optimal model for their needs based on performance and test area capacity.
A benefit of this TH Series relative Humidity artificial climate chamber is, it comes with an unconditional 3 years warranty.
Main Technical Parameter
|
Name |
130°C Humidity Artificial Climate Chamber |
|
Model |
TH-225 |
|
Internal Dimension (mm) |
500*600*750 |
|
Overall Dimension (mm) |
960*1150*1860 |
|
Temperature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
|
Humidity Range (R.H) |
20% ~ 98% RH |
|
Temperature fluctuations |
± 0.5 ℃ |
|
Temperature deviation |
± 2.0 ℃ |
|
Humidity Deviation |
± 2.5% RH |
|
Heating Rate |
3 ℃ / min |
|
Cooling Rate |
1 ℃ / min |
|
Interior Volume |
500 liters |
|
Controller |

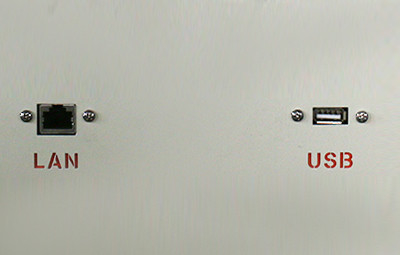

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
|
Cooling System |
Mechanical compression refrigeration system |
|
Interior Material |
SUS304 stainless steel |
|
Maximum Noise |
65 dBA |
|
Power Supply |
380V |
Details
 |
|
|

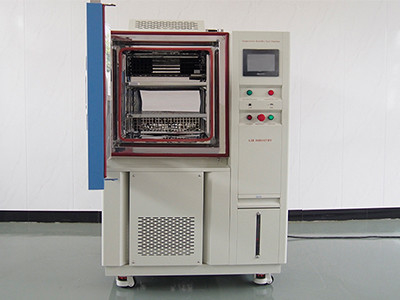

Workroom The internal material is 304 stainless steel, The test room is specially customized to meet the requirements of customers for testing metal detectors |

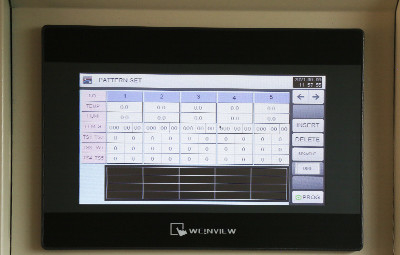

Controller System The PID controller as the main control unit to command, The control screen is specially customized and designed on the door according to the equipment |
|
|
|
Observation Window The observation window with conductive film and lamp can clearly observe the changes of the sample |
Refrigerating System High temperature aging Chamber, Bipolar linkage refrigeration system, so that the temperature of the studio is more accurat |
|
|
Features
1.high Humidity artificial climate chamber comes with support of perforated stainless steel trays
2.Features caster wheel support for optimum mobility
3.Comes with inside chamber fitted with blower to motor that ensures uniform temperatures from the inside
4.Coming with microprocessor based PID controller for precision regulating temperature and humidity conditions
5.Comes with cooling system support in form of hermetically sealed compressor
6.Comes with conditioning chamber support for the laboratory that provides for conditioning of samples prior to testing
FAQ
1. Q: What is your warranty ?
- thermal Humidity artificial climate chamber,36 months product warranty, lifetime for services.
2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: 1.Are your company a trading one or a factory?
- Yes, we are a manufactured factory,11 years exporting experience.we also support OEM and ODM.
4. Q: After an order is placed, when to deliver?
- Generally about 10 days, If we have inventory, we can arrange shipment within 3 days.
5. Q: What about the warranty with after - sales services?
- 36 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered
while using our product, handles guest problems and complaints in a professional and timely.
