Constant Low Temperature High Humidity Test Chamber 10% - 98% RH
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Low Temperature High Humidity Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Humidity Range: | 10% - 98% RH | Temperature Range: | -20℃ ～+150 ℃ |
| Exterior Material: | A3 Steel Plate | Controller: | PLC,PC Link, R-232 Interface,USB,APP |
| High Light: | Constant High Humidity Test Chamber,Low Temperature Humidity Test Chamber,98% RH High Humidity Test Chamber |
||
Product Description

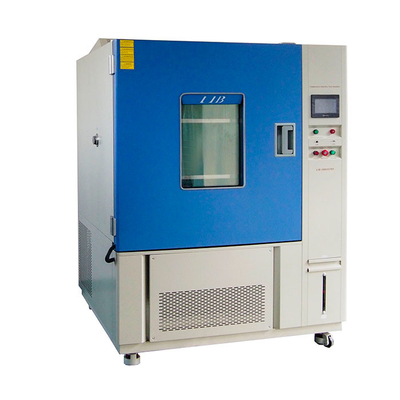

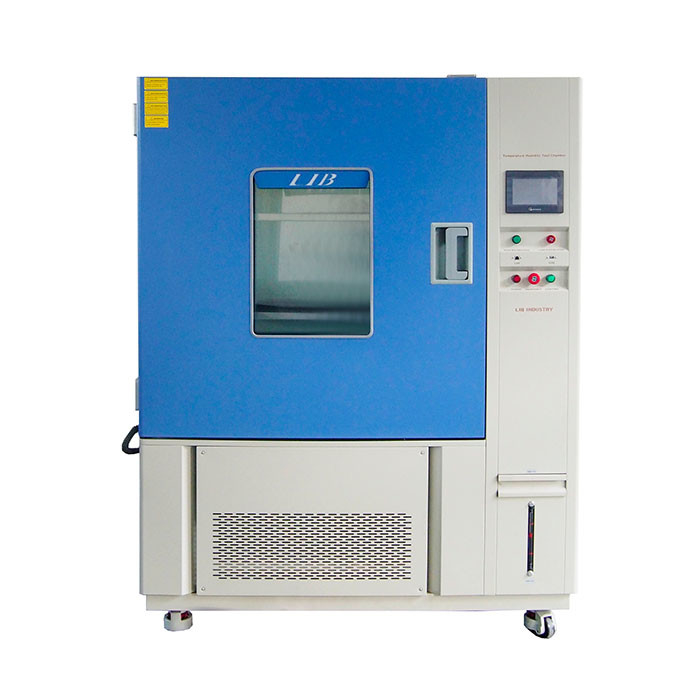

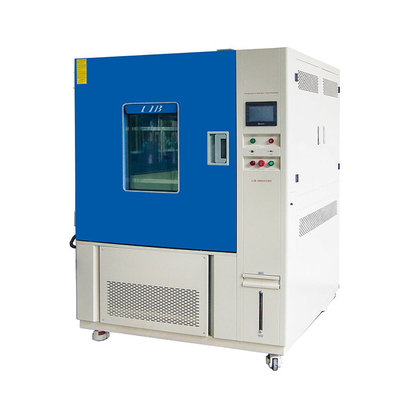

Constant Low Temperature High Humidity Chamber
Description
Low Temperature High Humidity Chamber. LIB INDSTRY temperature and humidity test chambers are available in a variety of sizes and configurations, including benchtop / vertical/ walk in constant temperature humidity chambers. Temperature Range: -70°C to +180°C; Humidity range:10% to 98%R.H.
Advantage
▶One machine, multiple functions
▶temperature and humidity test
▶storage condition
▶calibration function
▶safety protection
Main Technical Parameter
Name | Low Temperature High Humidity Chamber |
Model | TH-225 |
Internal Dimension (mm) | 500*600*750 |
Overall Dimension (mm) | 960*1150*1860 |
Temperature Range (℃) | A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
Humidity Range (R.H) | 20% ~ 98% RH |
Temperature fluctuations | ± 0.5 ℃ |
Temperature deviation | ± 2.0 ℃ |
Humidity Deviation | ± 2.5% RH |
Heating Rate | 3 ℃ / min |
Cooling Rate | 1 ℃ / min |
Interior Volume | 500 liters |
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
Cooling System | Mechanical compression refrigeration system |
Interior Material | SUS304 stainless steel |
Maximum Noise | 65 dBA |
Power Supply | 380V |
Deatil
 | |
| water purification system | PT-100 Sensor |
Key Features
◆Temperature Humidity Test Equipment
◆Temperature control and display unit
◆Humidity control and display unit
◆French TECUMSEH compressor cooling unit
◆Environment friendly refrigerant R404A & R23
◆Humidification system with external isolation, stainless steel surface evaporation humidifier
◆Heating element is Nichrome heater
◆Circulation with low noise centrifugal wind fan
◆Temperature sensor PT-100 , Resolution: ± 0.001 ℃
◆Humidity sensor dry and wet bulb sensor, Resolution: ± 1%
◆Build- in water reservoir
◆Programmable color LCD touch screen controller
◆Viewing window with interior lighting.
