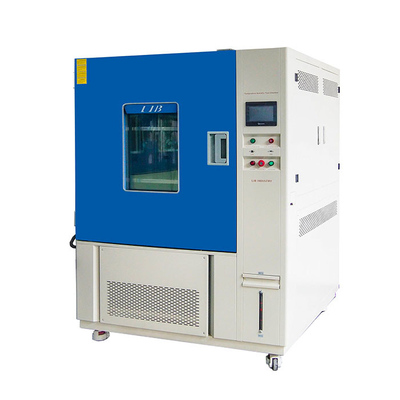

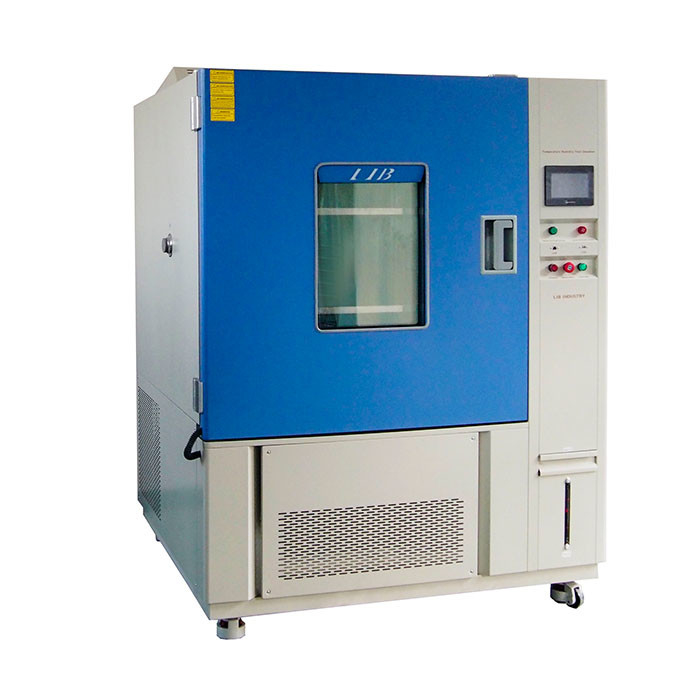

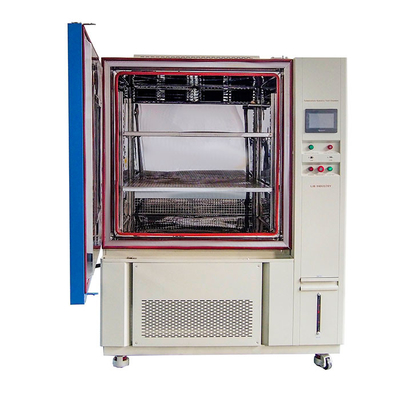

Environmental Temperature And Humidity Control Chamber 225L
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Temperature And Humidity Control Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Humidity Range: | 10% - 98% RH | Temperature Range: | -20℃ ～+150 ℃ |
| Exterior Material: | A3 Steel Plate | Controller: | PLC,PC Link, R-232 Interface,USB,APP |
| High Light: | Temperature And Humidity Control Chamber,Environmental Humidity Control Chamber,Humidity Control Chamber 225L |
||
Product Description
Environmental Temperature And Humidity Control Chamber
Description
Temperature and humidity control chamber offers the full range of comfort, reliability, and safety. It has active humidity control set from 20 % to 95 % rh and an unsurpassed homogeneity of temperature and humidity over the entire interior. It is suited for environmental testing, environmental simulation, accelerated service life tests, and 85/85 tests according to IEC 60068-2-67 and IEC 60068-2-78.
Easy to maintain, LIB humidity chambers are energy-efficient, corrosion-resistant and provide precise control. Stainless steel makes these chambers long-lasting, ensuring that your investment has an expansive lifespan.
Main Technical Parameter
|
Name |
Temperature And Humidity Control Chamber |
|
Model |
TH-225 |
|
Internal Dimension (mm) |
500*600*750 |
|
Overall Dimension (mm) |
960*1150*1860 |
|
Temperature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
|
Humidity Range (R.H) |
20% ~ 98% RH |
|
Temperature fluctuations |
± 0.5 ℃ |
|
Temperature deviation |
± 2.0 ℃ |
|
Humidity Deviation |
± 2.5% RH |
|
Heating Rate |
3 ℃ / min |
|
Cooling Rate |
1 ℃ / min |
|
Interior Volume |
500 liters |
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
|
Cooling System |
Mechanical compression refrigeration system |
|
Interior Material |
SUS304 stainless steel |
|
Maximum Noise |
65 dBA |
|
Power Supply |
380V |
Deatil
 |
Water Recirculation System
LIB environmental test chamber equip water recirculation system provides a reliable source of demineralized water for the humidity system, using ordinary tap or pre-filtered water.
Condensate from the chamber is returned back to the water tank.
Perfect for installations where a water line and drain are not available. |
Features
Climatic Test Chamber
◆RH control constancy of ±0.5%
◆Temperature control constancy of ±0.2°C
◆SUS304 stainless interior chamber
◆User-friendly and unit-specific digital controller
◆Extremely stable and uniform environment
◆Superior constancy and uniformity
◆Secure and safe
◆Longevity of equipment; corrosion resistant
◆Ease of operation
|
|
