R232 Climatic Environmental Testing Chamber Weather Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Environmental Testing Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Controller: | PLC,PC Link, R-232 Interface,USB,APP | Humidity Range: | 10% - 98% RH |
| Temperature Range: | -20℃ ～+150 ℃ | Exterior Material: | A3 Steel Plate |
| High Light: | R232 Climatic Environmental Testing Chamber,Weather Resistance Environmental Testing Chamber,A3 Steel Environmental Testing Chamber |
||
Product Description

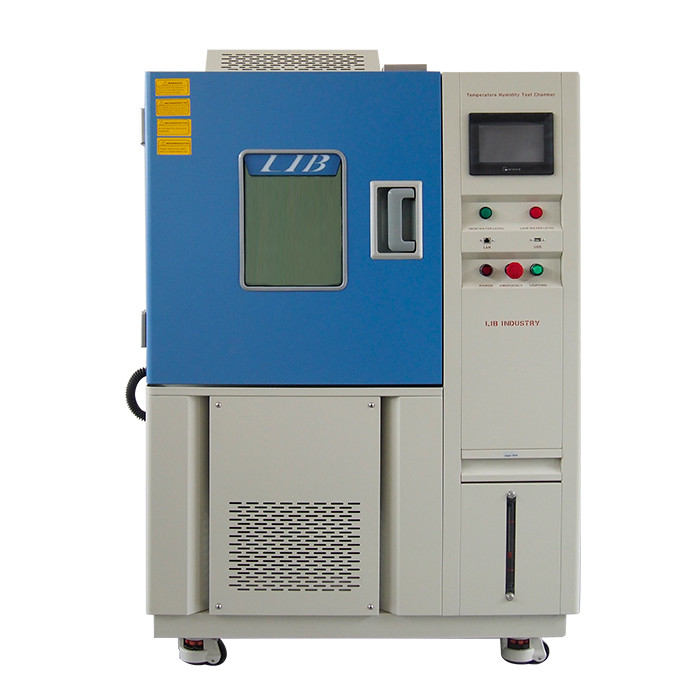

Weather Resistance Climatic Environmental Testing Chamber
Description
Weather Resistance Climatic Environmental Testing Chamber is to simulate the product's adaptability and characteristics under the combined conditions of climate and environment temperature and humidity (high and low temperature operation and storage, temperature cycle, high temperature and high humidity, low temperature and low humidity, condensation test, etc.) Changed test equipment.
Environmental Testing Chamber is used for materials that may soften, reduce performance, change properties, potential damage, and oxidize.
Main Technical Parameter
|
Name |
Weather Resistance Climatic Environmental Testing Chamber |
|
Model |
TH-225 |
|
Internal Dimension (mm) |
500*600*750 |
|
Overall Dimension (mm) |
960*1150*1860 |
|
Temperature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
|
Humidity Range (R.H) |
20% ~ 98% RH |
|
Temperature fluctuations |
± 0.5 ℃ |
|
Temperature deviation |
± 2.0 ℃ |
|
Humidity Deviation |
± 2.5% RH |
|
Heating Rate |
3 ℃ / min |
|
Cooling Rate |
1 ℃ / min |
|
Interior Volume |
500 liters |
|
Controller |

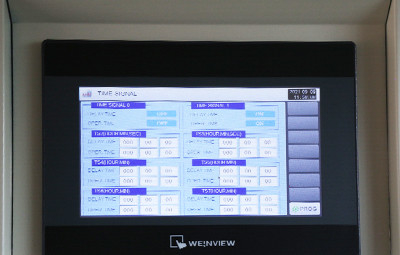

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
|
Cooling System |
Mechanical compression refrigeration system |
|
Interior Material |
SUS304 stainless steel |
|
Maximum Noise |
65 dBA |
|
Power Supply |
380V |
Deatil
 |
|
|
|

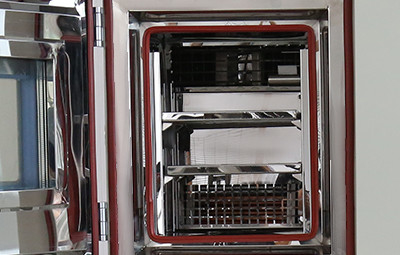

Test Area |
|
|
USE
Weather Resistance Climatic Environmental Testing Chamber simulates various environmental conditions to test the heat resistance, moisture resistance, dry resistance and low temperature resistance of various products and raw materials.
Suitable for paper, printing, electronics, electrical appliances, metal and other industries
Functional
1. New and perfect arc shape design, high-quality appearance, beautiful and generous, the outer box is made of high-quality matte lines and treated with SUS304# stainless steel plate.
2. Climate Testing Chamber,The inner tank is imported (SUS#304) high-quality mirror stainless steel plate.
3. Insulation material: hard polyurethane hard PU foam + high-density glass fiber cotton. The insulation thickness is 100mm
4. Air transport system: the use of extended shaft motor, high and low temperature resistant stainless steel multi-wing impeller, in order to achieve strong convection vertical diffusion cycle.
5. Double-layer high-temperature-resistant high-tension sealing strips are used between the door and the box to ensure the airtightness of the test area.
6. Adopt non-reaction door handle, easy to operate
7. The bottom of the machine adopts high-quality fixed PU movable wheel with leveling feet
