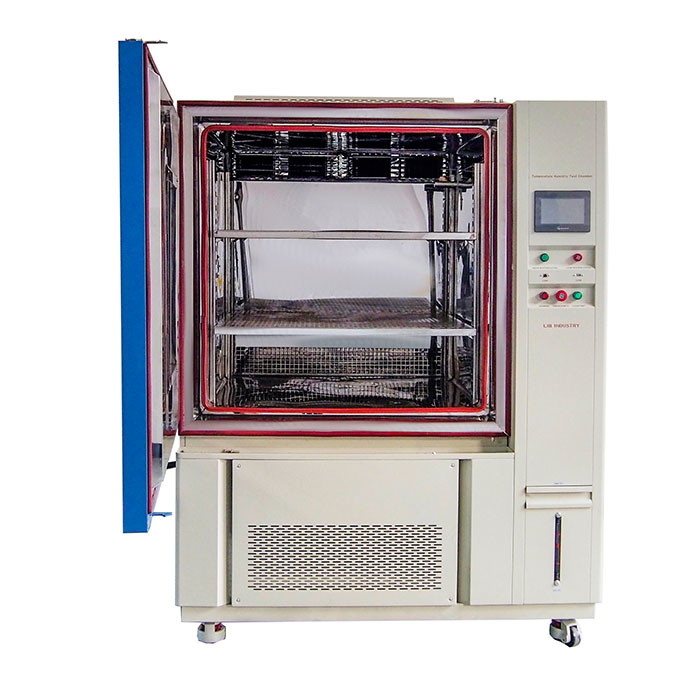

Environmental SUS304 Constant Humidity Chamber 380V With Refrigeration System
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Temperature Equipment | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Controller: | PLC,PC Link, R-232 Interface,USB,APP | Humidity Range: | 10% - 98% RH |
| Temperature Range: | -20℃ ～+150 ℃ | Exterior Material: | A3 Steel Plate |
| High Light: | SUS304 Constant Humidity Chamber,Constant Humidity Chamber 380V,RoHS Environmental Constant Humidity Chamber |
||
Product Description
Environmental Refrigerant Constan Environmental Chamber
Description
Environmental Refrigerant Constan Environmental Chamber can simulate all kinds of temperature and humidity environment, suitable for testing the reliability and stability of electronic, automobile, rubber, plastic glue, metal and other products to meet all kinds of harsh environment parameters.
Main Technical Parameter
|
Name |
Environmental Refrigerant Constan Environmental Chamber |
|
Model |
TH-225 |
|
Internal Dimension (mm) |
500*600*750 |
|
Overall Dimension (mm) |
960*1150*1860 |
|
Temperature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
|
Humidity Range (R.H) |
20% ~ 98% RH |
|
Temperature fluctuations |
± 0.5 ℃ |
|
Temperature deviation |
± 2.0 ℃ |
|
Humidity Deviation |
± 2.5% RH |
|
Heating Rate |
3 ℃ / min |
|
Cooling Rate |
1 ℃ / min |
|
Interior Volume |
500 liters |
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
|
Cooling System |
Mechanical compression refrigeration system |
|
Interior Material |
SUS304 stainless steel |
|
Maximum Noise |
65 dBA |
|
Power Supply |
380V |
Deatil
 |
|
|
|
water circulation system |
|
|
| Benchtop Test Chamber | Custom test chamber |
Product Advantage
1. Temperature test chamber, Easy to operate: the color LCD touch screen is adopted to set and display various operation numbers. At the same time, the controller position can be adjusted up and down according to the actual situation at any time to enhance the user's comfort experience.
2. High precision: Environmental Chamber,better than the standard volatility and uniformity, more optimized distribution of airflow and temperature, reduce error, more accurate test results.
3. High stability: Accurate and stable control system for each part of the reasonable operation arrangement, effectively reducing the failure rate.
4. Large amount of recording: Constant Chamber,a large amount of sampling data can be recorded in real time, and the curve can be printed on PC.
