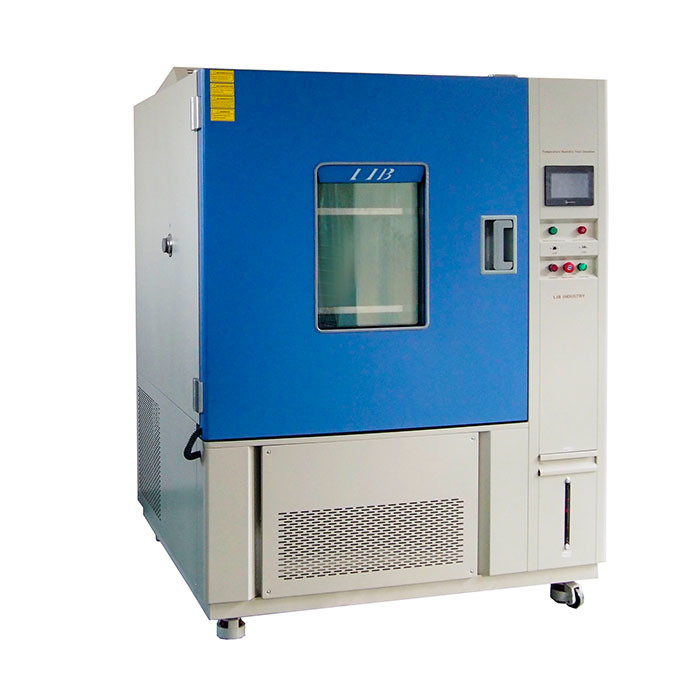

A3 SS304 Humidity Temperature Controlled Chamber With LCD Touch Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Temperature Climate Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Controller: | PLC,PC Link, R-232 Interface,USB,APP | Humidity Range: | 10% - 98% RH |
| Temperature Range: | -20℃ ～+150 ℃ | Exterior Material: | A3 Steel Plate |
| High Light: | SS304 Temperature Controlled Chamber,A3 Humidity Temperature Controlled Chamber,LCD Screen Temperature Controlled Chamber |
||
Product Description
Constan Humidity Temperature Climate Chamber
Description
Constan Humidity Temperature Climate Chamber, also known as the climate test chamber, is an environmental simulation system and equipment commonly used in laboratories and factories.
The environmental test chamber is used to test the performance stability of materials or products in various environments by simulating natural environments such as high temperature, low temperature, humidity and dryness.
Temp. Range
Ⅰ: -20 degree～ +150 degree
Ⅱ : -40 degree～ +150 degree
Ⅲ: -70 degree～ +150 degree
Main Technical Parameter
Name | Constan Humidity Temperature Climate Chamber |
Model | TH-225 |
Internal Dimension (mm) | 500*600*750 |
Overall Dimension (mm) | 960*1150*1860 |
Temperature Range (℃) | A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
Humidity Range (R.H) | 20% ~ 98% RH |
Temperature fluctuations | ± 0.5 ℃ |
Temperature deviation | ± 2.0 ℃ |
Humidity Deviation | ± 2.5% RH |
Heating Rate | 3 ℃ / min |
Cooling Rate | 1 ℃ / min |
Interior Volume | 500 liters |
Controller | Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
Cooling System | Mechanical compression refrigeration system |
Interior Material | SUS304 stainless steel |
Maximum Noise | 65 dBA |
Power Supply | 380V |
Deatil
 | |

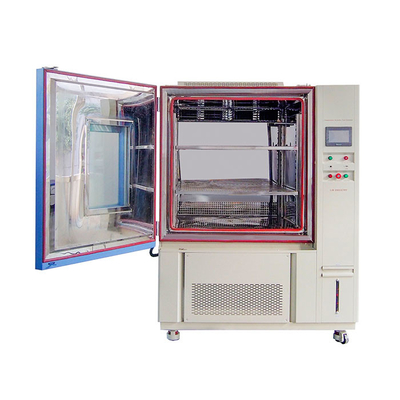

| Test Area |
| |

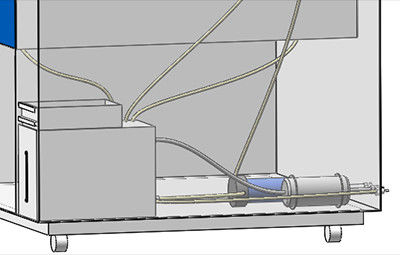

Structure
■Precise determination of temperature and humidity in climatic chamber.
■The shape of the cavity is beautiful and generous, and the non-responsive handle is adopted, which is easy to operate and reduces the damage to the handle.
■The inner cavity is made of high-grade stainless steel SUS304, and the outer cavity is made of A3 steel plate, which is more durable.
■The temperature and humidity are controlled by a programmable system, which is accurate, reliable and programmable.
■Large observation window, equipped with lighting, keeps the inside of the machine bright, and can clearly observe the situation inside the device at any time.
■Constan temperature chamber equipped with an independent temperature alarm system, when the temperature exceeds the limit, the operation will be automatically interrupted to ensure the safe operation of the test without accidents.
