Laboratory PLC Thermal Humidity Controlled Chamber For Scientific Research
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Humidity Controlled Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Controller: | PLC,PC Link, R-232 Interface,USB,APP | Humidity Range: | 10% - 98% RH |
| Temperature Range: | -20℃ ～+150 ℃ | Exterior Material: | A3 Steel Plate |
| High Light: | PLC Thermal Humidity Controlled Chamber,Programmable Humidity Controlled Chamber,SUS304 Laboratory Humidity Controlled Chamber |
||
Product Description

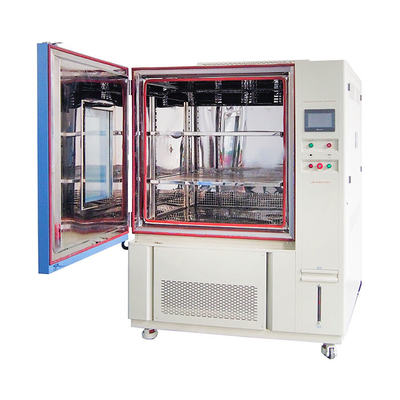

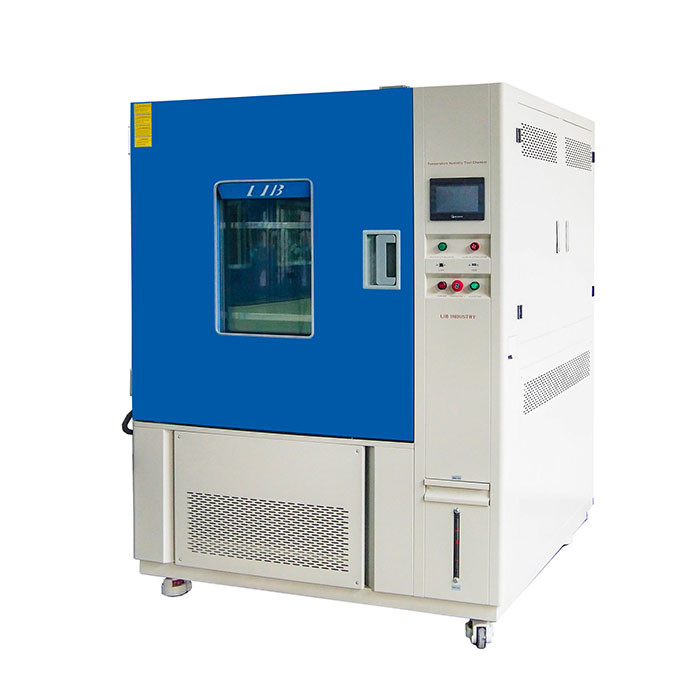

Laboratory Thermal Humidity Controlled Chamber
Description
Laboratory Thermal Humidity Controlled Chamber ,Actually Laboratory, Scientific Research, QC department will use high temperature test chamber to test the quality of products meet the standards and customer testing requirements.
Main Technical Parameter
|
Name |
Laboratory Thermal Humidity Controlled Chamber |
|
Model |
TH-225 |
|
Internal Dimension (mm) |
500*600*750 |
|
Overall Dimension (mm) |
960*1150*1860 |
|
Temperature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
|
Humidity Range (R.H) |
20% ~ 98% RH |
|
Temperature fluctuations |
± 0.5 ℃ |
|
Temperature deviation |
± 2.0 ℃ |
|
Humidity Deviation |
± 2.5% RH |
|
Heating Rate |
3 ℃ / min |
|
Cooling Rate |
1 ℃ / min |
|
Interior Volume |
500 liters |
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
|
Cooling System |
Mechanical compression refrigeration system |
|
Interior Material |
SUS304 stainless steel |
|
Maximum Noise |
65 dBA |
|
Power Supply |
380V |
Deatil
 |
|
|
|
Programmable controller |
|
|
Advantage
1. Temperature test chamber,Temperature range: -70~+150℃
2. Humidity range: 10~98%RH (Refer Image )
3. Cooling speed: 1℃/min in average (without loading)
4. Heating speed: 3℃/min in average (without loading)
5. Internal chamber material: SUS#304 stainless steel, mirror finished
6. Humidity oven,High performance and quiet operation
Application industry
Laboratory Thermal Humidity Controlled Chamber
1. electronic, electrical, mobile, data
2. communication, instrumentation, vehicle parts
3. Plastic products, metal, food
4. Chemistry, building materials, medical treatment
