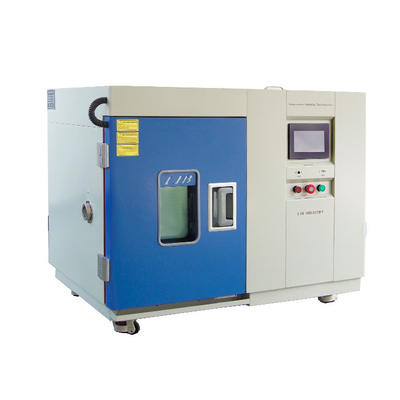

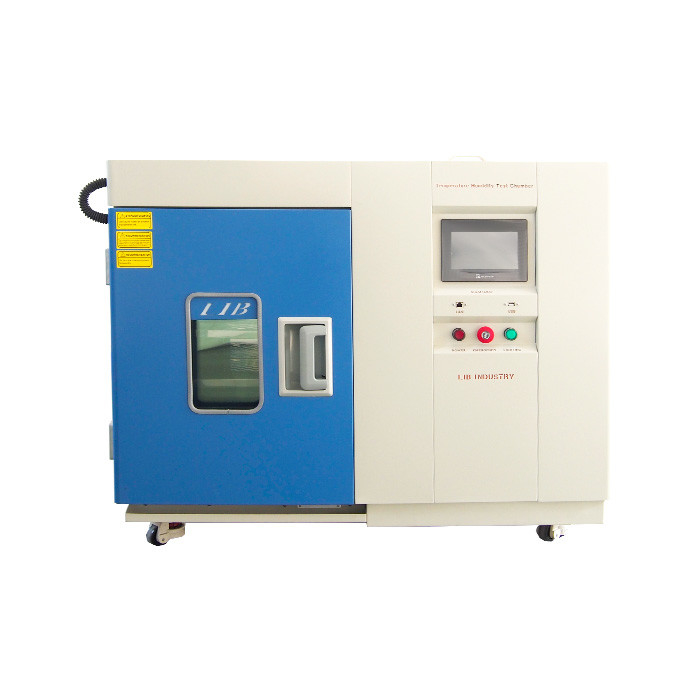

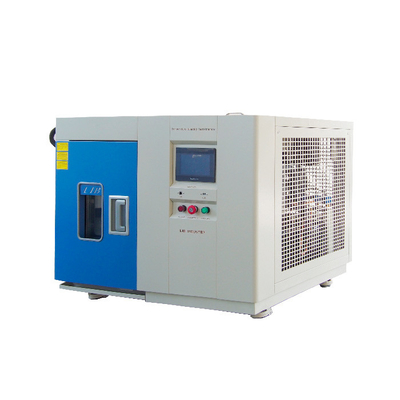

80L Environmental Benchtop Climatic Test Chamber Programmable LCD Touch Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Benchtop Climatic Test Chamber | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | 80L Environmental Climatic Test Chamber,Benchtop Climatic Test Chamber,Programmable Thermal Humidity Chamber |
||
Product Description
Description
LIB INDUSTRY 50L 80L Environmental Benchtop Climatic Test Chamber is widely used in product quality testing, testing the reliability and stability of products in various harsh environments and other parameters
Parameters
| Name | 50L 80L Environmental Benchtop Climatic Test Chamber |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Benchtop Climatic Test Chamber
 |
|
Advantage
1. Benchtop climatic chamber, wide temperature range selection, 53+ models
2. The large observation window is equipped with lighting to keep the inside of the work room bright, and the situation in the test area can be clearly observed at any time.
3. The left side is equipped with a test hole with a diameter of 50mm, which can be used for external test power lines or signal lines
4. benchtop test chamber bottom adopts high-quality fixed PU movable wheel, which can be adjusted and braked
5. benchtop climatic test chamber accept customization
Application
The Climatic test chamber is suitable for the adaptability test of electronic electrician, household appliances, automobiles, instrumentation, electronic chemical industry, parts, raw materials and coatings and coatings under high and low temperature and humidity environment.
