Benchtop Humidity Test Chamber Simulation Climatic 50L -40℃
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | RoHS,CE |
| Model Number: | TH-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Benchtop Climatic Simulation Chamber | Low Type: | -20℃/-40℃/70℃ |
|---|---|---|---|
| Temperature Range: | -20℃ ～+150 ℃ | Warranty: | 36 Monthes |
| Humidity Range: | 20%~98% | Controller: | Programmable LCD Touch Screen |
| High Light: | Benchtop Humidity Environmental Chamber,Simulation Benchtop Humidity Chamber,50L Benchtop Environmental Test Chamber |
||
Product Description
Description

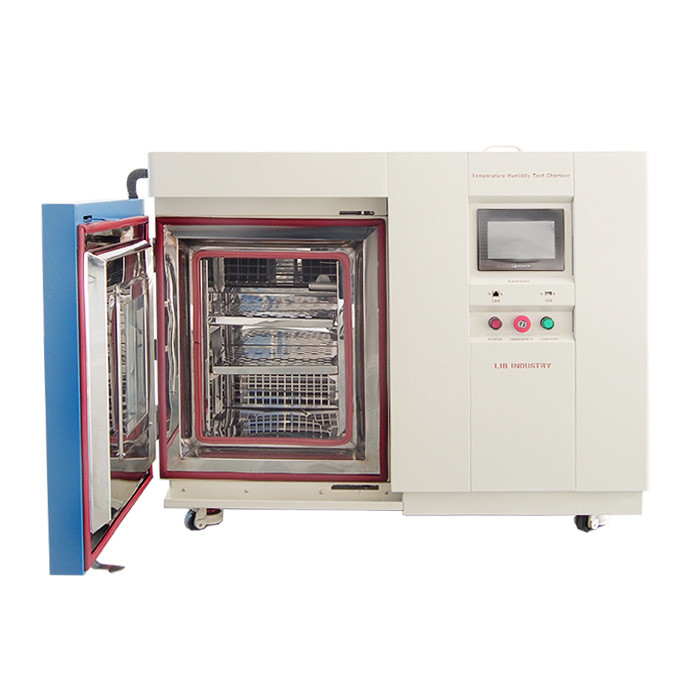

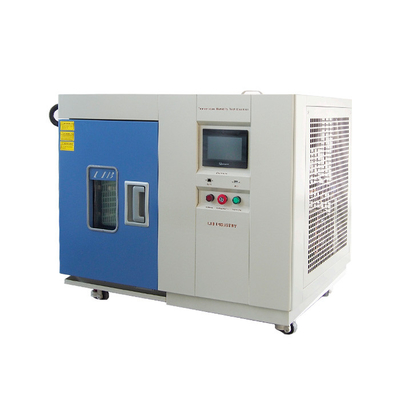

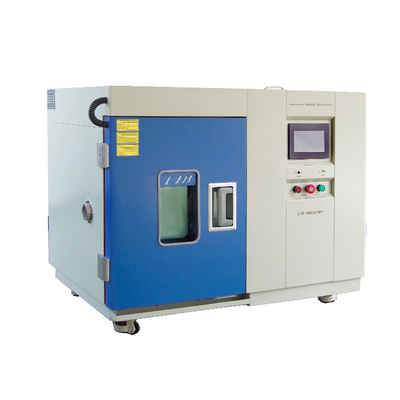

The LIB 50L -40℃ Benchtop Climatic Simulation Chamber detects the parameters and performance of the product after changing the temperature environment of the constant test.
Performance
Performance of climatic Chamber
◆Temperature range: -20℃/-40℃/-70℃/-86℃~150℃
◆Humidity range:10%/20%~98% R H
◆Fluctuation/Uniformity : ± 0.5 ℃
◆Temperature deviation: ± 2.0 ℃
◆Temperature and humidity sensor:·PT100/capacitive sensor
Parameters
| Name | 50L -40℃ Benchtop Climatic Simulation Chamber |
| Model | TH-50 |
| Internal dimension (mm) | 320*350*450 |
| Overall dimension (mm) | 800*1050*950 |
| Temperature range | -20℃ ～+150 ℃ |
| Low type | Ⅰ: -40℃ Ⅱ:-70℃ |
| Humidity range | 20% ~ 98% RH |
| Temperature fluctuations | ± 0.5 ℃ |
| Temperature deviation | ± 2.0 ℃ |
| Humidity deviation | ± 2.5% RH |
| Heating rate | 3 ℃ / min |
| Cooling rate | 1 ℃ / min |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class |
| Temperature Resolution | ± 0.001 ℃ |
| Humidity sensor | Dry and wet bulb sensor |
| Power Supply | AC220V 50HZ |
| Environmental conditional | 5℃～+40 ℃ ≤85% RH |
Benchtop Climatic Test Chamber
 |
|
Advantage
1. Benchtop Simulation Chamber, Using TECUMSEH compressor, the cooling speed is fast and the cooling rate is stable.
2. Using environmentally friendly refrigerants, in line with European and Asian refrigerant standards
3. Benchtop climatic Chamber, The fan is used for strong air circulation, which can make the temperature and humidity distribution in the test take uniform
4. The heating, cooling, humidification, and dehumidification systems are completely independent, which can improve efficiency, reduce testing costs, increase the life of the whole machine, and reduce the failure rate
