85°C Refrigerant Lab Line Environmental Chamber Programmable Control
Product Details:
| Place of Origin: | China |
| Brand Name: | LIB |
| Certification: | CE，RoHS |
| Model Number: | TH-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden Box standard export package |
| Delivery Time: | 3-14 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram, |
| Supply Ability: | 180 sets / quarter |
|
Detail Information |
|||
| Name: | Lab Environmental Chamber | Low Type: | -20℃/-40℃/-60℃/-70℃/-86℃ |
|---|---|---|---|
| Controller: | PLC,PC Link, R-232 Interface,USB,APP | Humidity Range: | 10% - 98% RH |
| Temperature Range: | -20℃ ～+150 ℃ | Exterior Material: | A3 Steel Plate |
| High Light: | Refrigerant Lab Line Environmental Chamber,85C Lab Line Environmental Chamber,85C environmental test chamber |
||
Product Description

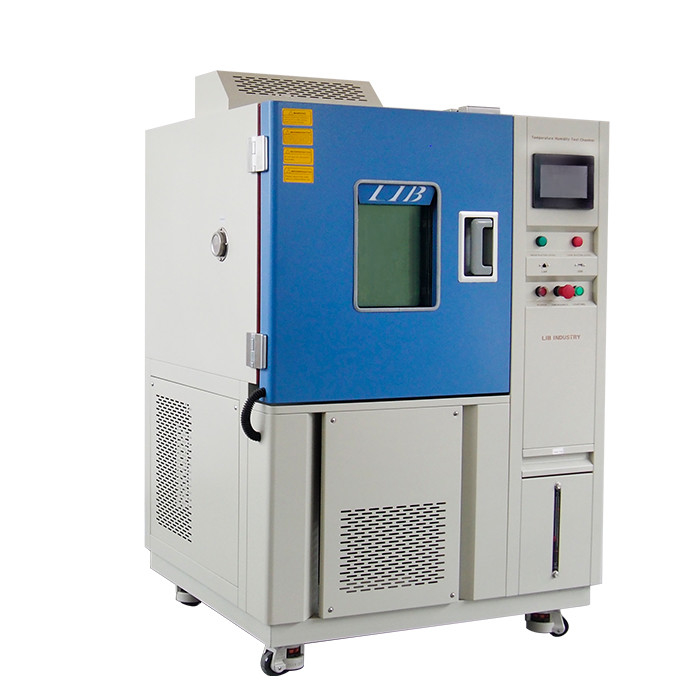

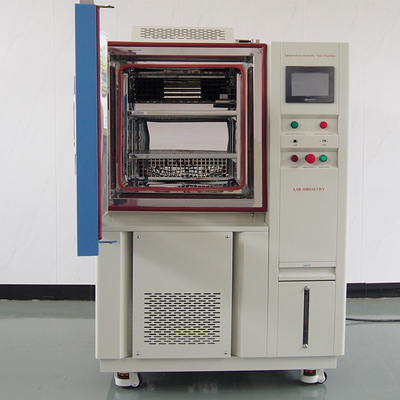

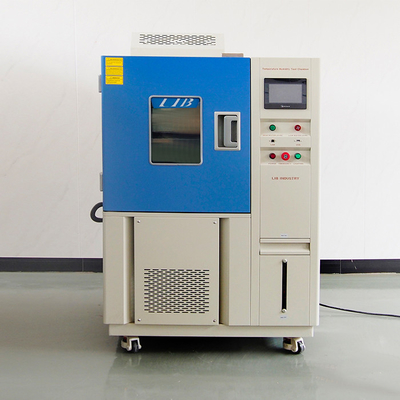

85°C Environmental Refrigerant Lab Environmental Chamber
Description
Lab environmental chamber is the use of heating, refrigeration, humidification and other systems to simulate the environment of high temperature, low temperature and humidity, through the coordination of high and low temperature change and humidity, to carry out a comprehensive environmental test of the test materials.
Main Technical Parameter
|
Name |
85°C Environmental Refrigerant Lab Environmental Chamber |
|
Model |
TH-225 |
|
Internal Dimension (mm) |
500*600*750 |
|
Overall Dimension (mm) |
960*1150*1860 |
|
Temperature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃ |
|
Humidity Range (R.H) |
20% ~ 98% RH |
|
Temperature fluctuations |
± 0.5 ℃ |
|
Temperature deviation |
± 2.0 ℃ |
|
Humidity Deviation |
± 2.5% RH |
|
Heating Rate |
3 ℃ / min |
|
Cooling Rate |
1 ℃ / min |
|
Interior Volume |
500 liters |
|
Controller |
Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB |
|
Cooling System |
Mechanical compression refrigeration system |
|
Interior Material |
SUS304 stainless steel |
|
Maximum Noise |
65 dBA |
|
Power Supply |
380V |
 |
|
|
|
Application
Environmental test chamber,The stability of the test product is tested by detecting the physical and chemical damage caused by the thermal expansion and cold contraction effect of the product material.
temperature test chamber can simulate multi-climate environment, often used in aerospace, chemical, pharmaceutical, metal, plastic, rubber, ceramics, conform to the material and so on high and low temperature and humidity performance test
